Features

  • 12.5" wide 20" vehicle-specific angled console for 2022-2025 Ford F-150 Lightning vehicle with Pro & XTL trim levels
  • 20" of total equipment mounting space in 9"W section
  • 13" of total equipment mounting space in 3.3"W section

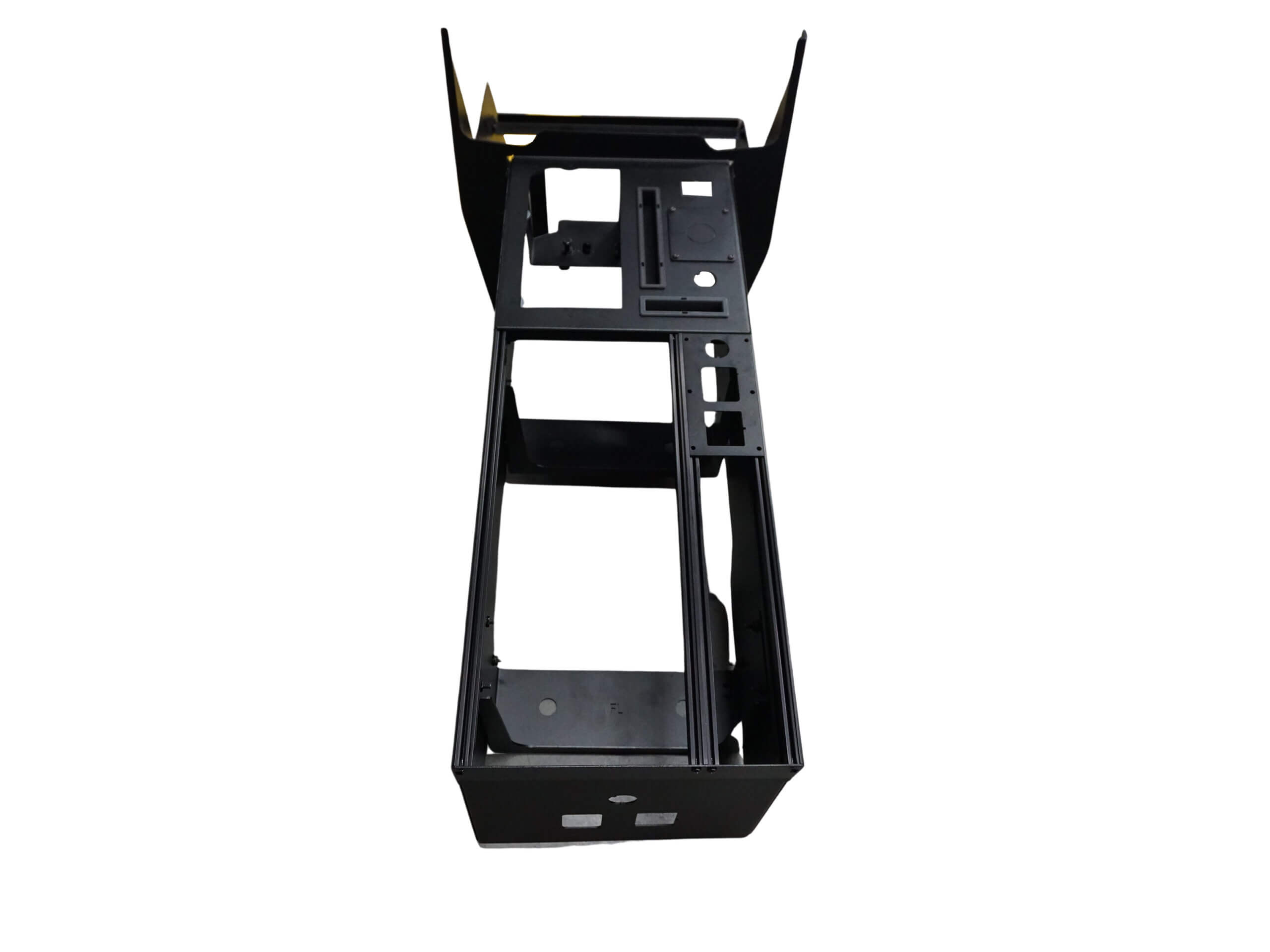

  • Single piece console housing w/ removable side panels mounts between seats and fits lower dash contour
  • Front top panel includes two (2) 12 volt lighter plug sockets with wire and fuse, cutout for OEM aux input module, rectangle cutout for optional C-SW-x rocker switch or C-USB-2, and 7/8" hole for additional optional 12V socket (CM216560)
  • Console includes provisions for internal or external side mount poles C-HDM-204 or C-HDM-214 (sold separately)
  • Compatible with internal cup holder and angled wedges (CUP2-1001 & CUP2-1005) or external cup holder (CUP2-1002), sold separately
  • Works with side mount armrest part number C-ARM-102 & C-ARM-108 (sold separately)
  • Includes internal front electrical equipment mounting shelf with removable front side trim panels for easy access
  • Includes speaker cutout in removable side panels
  • Passenger side front trim panel includes a knockout plate for when OEM 120 volt socket is used. Side panels also include perforations to allow for equipment cooling as well as internal speaker mounting
  • Mounting kit included
  • If using console with a vertical gun rack between seats, a partition with gun alcove is recommended
  • Accepts most standard accessories (sold separately)
  • View 3.3" Wide console accessories here

Specifications

PRODUCT SPECIFICATIONS:
Overall measurements:21.1" high x 18.7" wide x 48.9" long (including forward trim panel)
Your Needs:Customize to your specific needs
Equipment Brackets:Includes filler plates (FP/FPW) and/or equipment brackets (EB/EBW) to completely enclose mounting area less internal mount options for 9”W and 3.3”W sections
Accessories:See Havis 3.3" wide console accessories for options
Incompatibility:Console will not fit the Ford F-150 Lightning Flash, Lariat, or Platinum trim levels
Gross weight:60 lbs

Resources

install Instructions
install Instructions
Download share

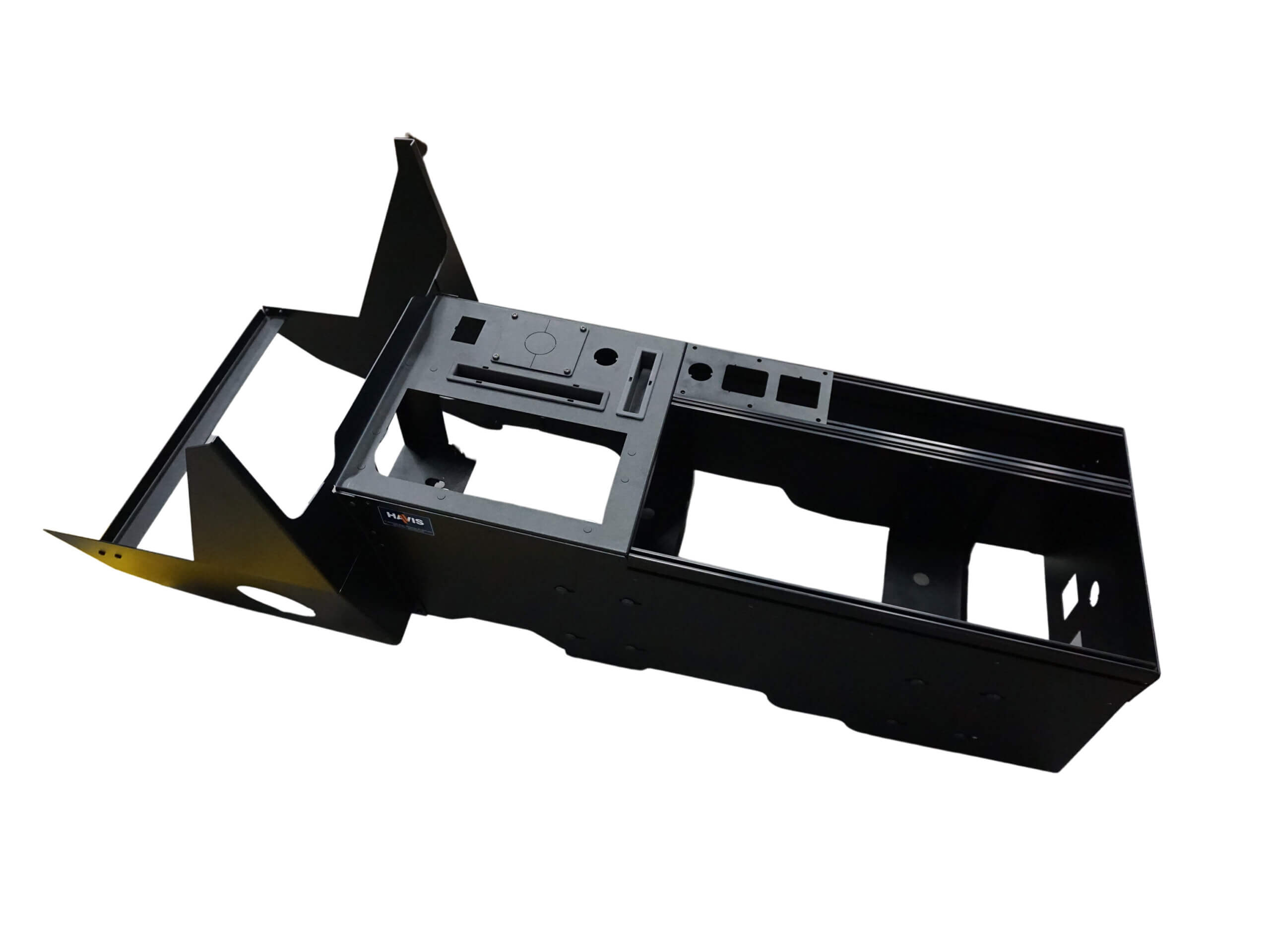

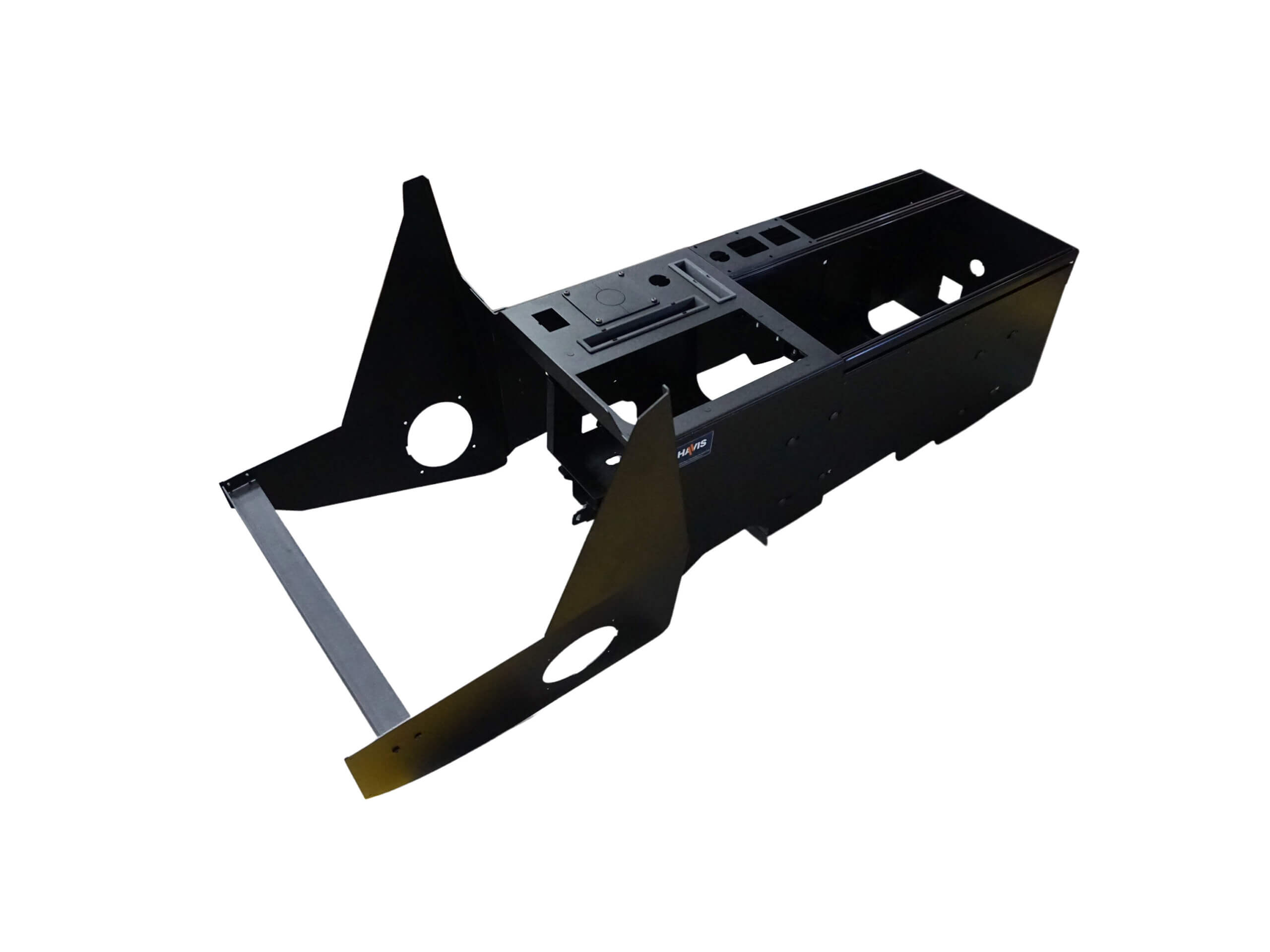

Isoview
Isoview
Download share

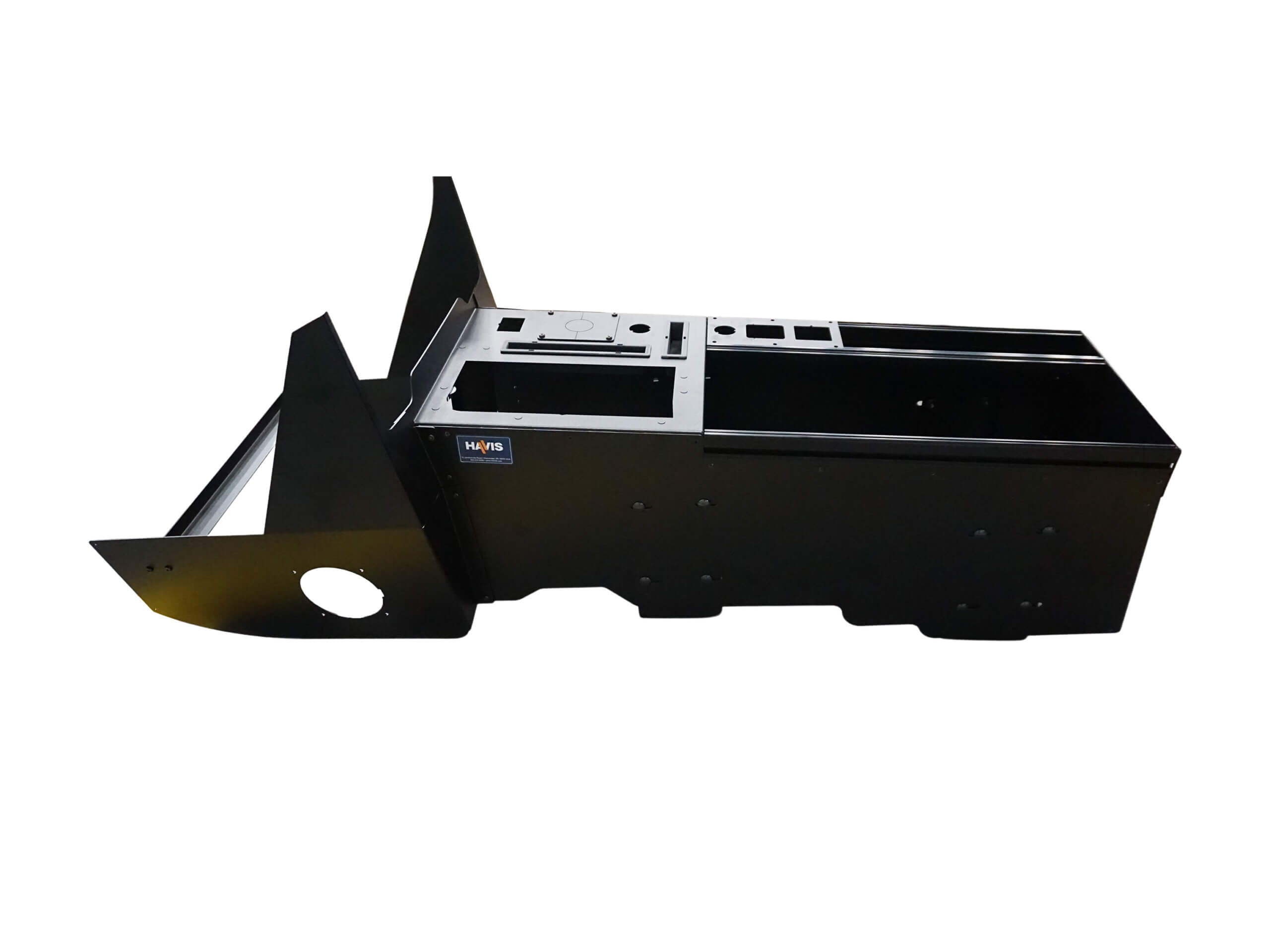

3D Rendering
3D Rendering
Download share

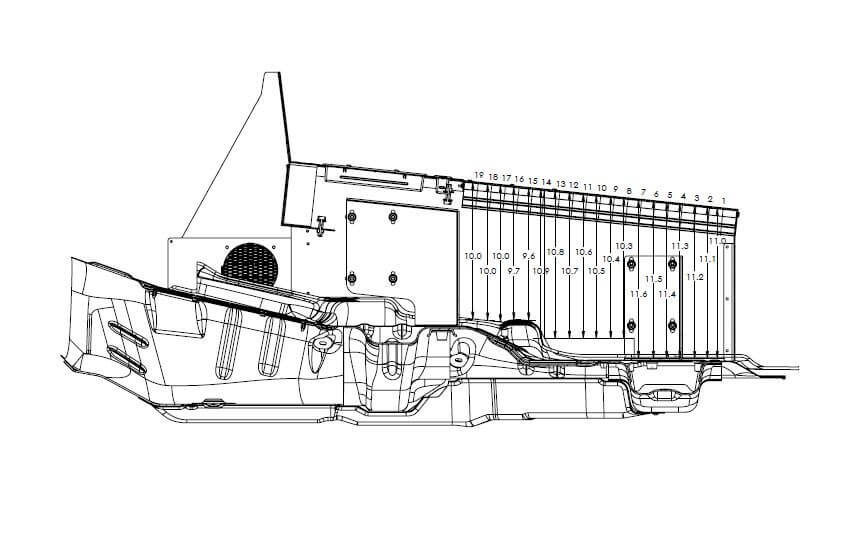

Side View Depth Measurement
Side View Depth Measurement
Download share
Ford F-150 Lightning Sales Sheet - Public Safety
Ford F-150 Lightning Sales Sheet - Public Safety
Download share
Ford F-150 Lightning Sales Sheet - Work Truck
Ford F-150 Lightning Sales Sheet - Work Truck
Download share
Ford F-150 Brochure
Ford F-150 Brochure
Download share

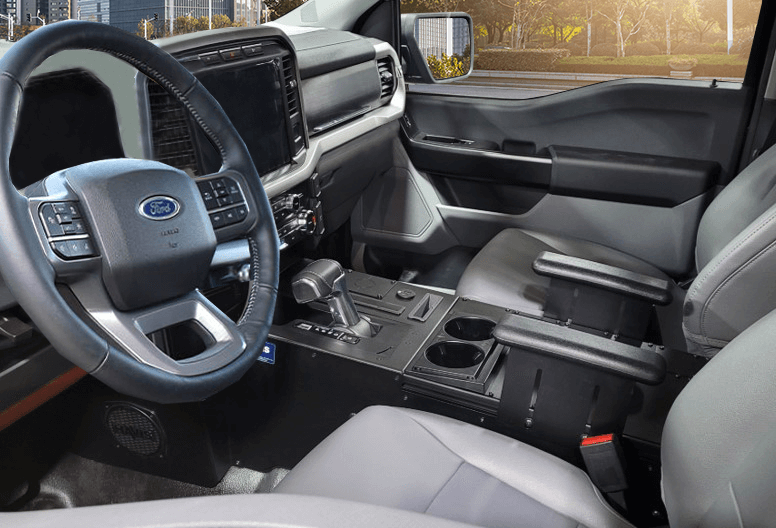

Application Gallery
