Features

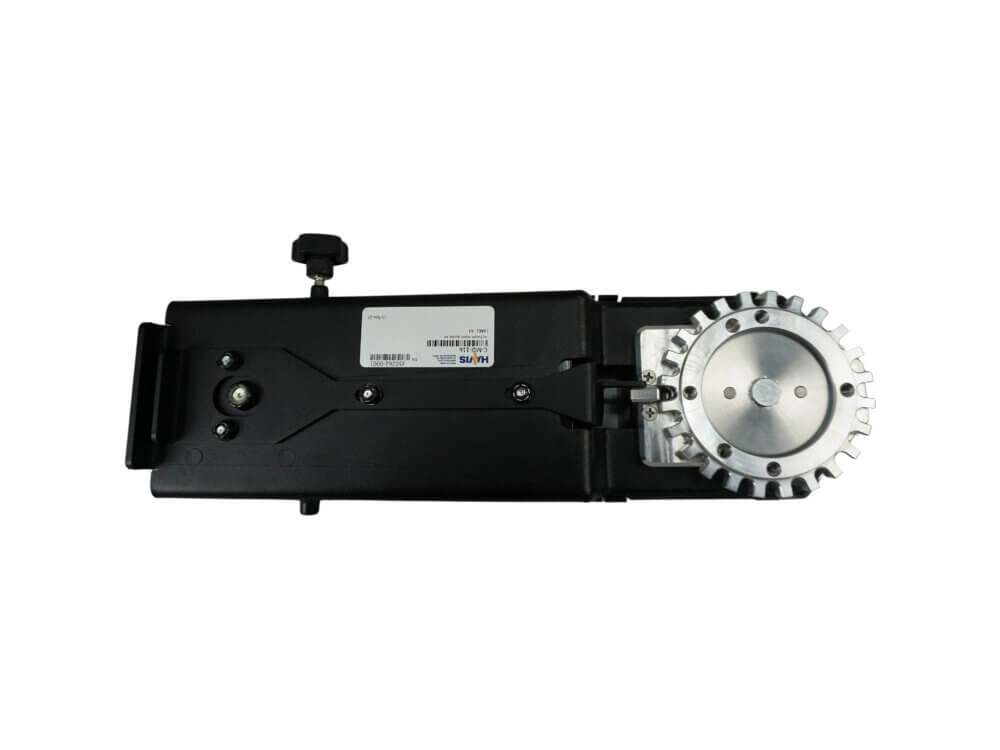

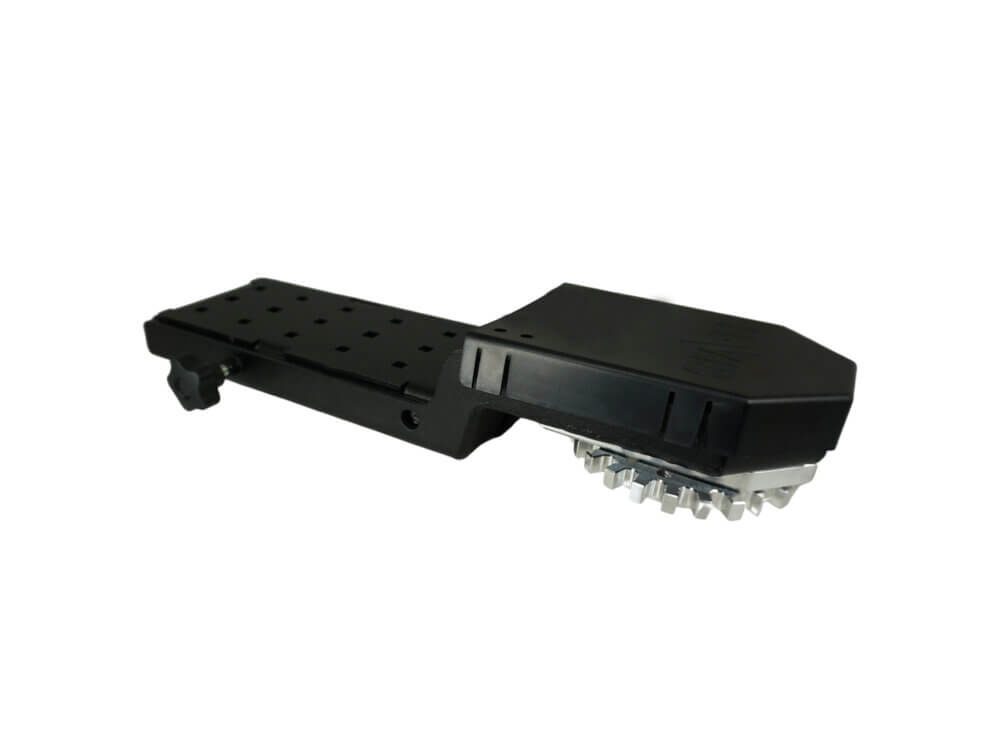

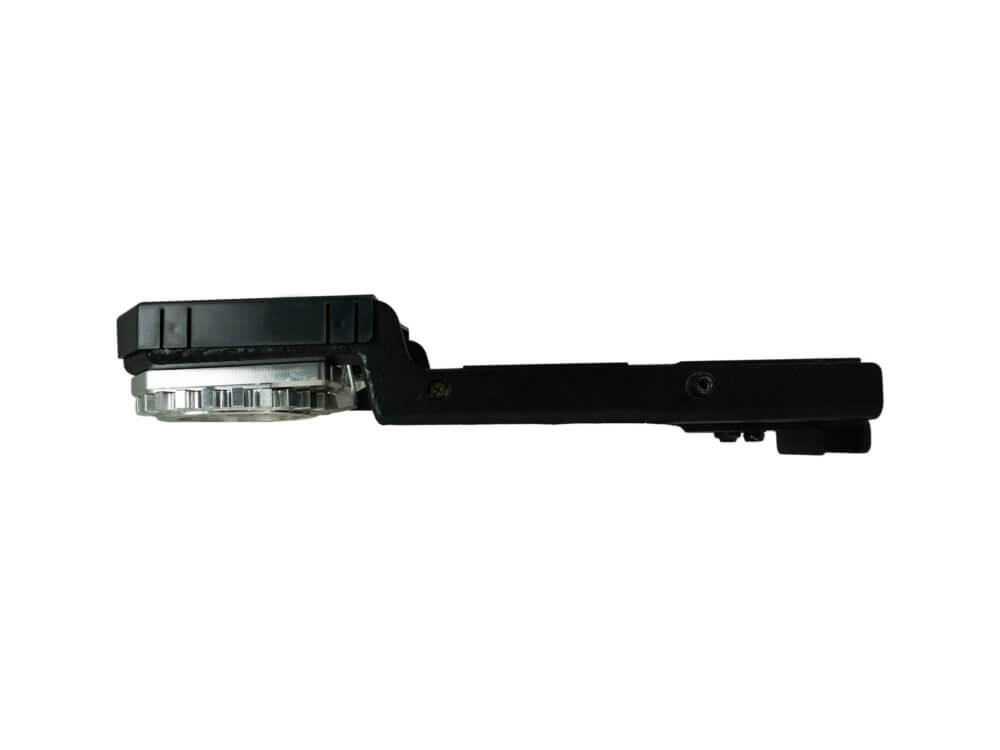

  • Long swing arm with motion device
  • Recommended for the fire market or any application where a longer overall length and slide function would be desired
  • Drop down design allows for easier operation when mounted to the typical high fire truck or large commercial vehicle dash
  • Front access control lever allowing for easy operation of entire arm rotation, and offering ergonomically supreme function
  • Ideal for computer usage from both the driver and front passenger seats
  • Horizontal rotation provides customized viewing angle
  • Swing arm has locking points every 15 degrees of rotation to maximize placement options
  • Slide out extension of up to 5.00"
  • Slide locking handle can be installed on either left or right side
  • Rotation and slide tension easily adjusted with hand tools, no disassembly required
  • Ruggedized design protects occupants and equipment
  • Works with C-HDM-134 and C-HDM-135 Heavy-duty base mount allowing adjustable downward tilt for dash mounting (sold separately)
  • Works with C-HDM-200 Series pole (sold separately)

Specifications

PRODUCT SPECIFICATIONS:
Mounting pattern:4 holes @ 2.125" square (1/4" Mounting hardware provided)
Dimensions:14.9" length, 19.9" max length, 4.5" wide, 3.5" high
Material:heavy-gauge steel for rugged durability with black powder coat for anti-glare and rust prevention
Gross weight:11 lbs

Resources

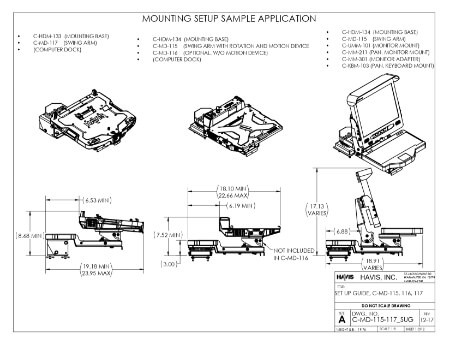

Setup Guide (PDF)
Setup Guide (PDF)
Download share

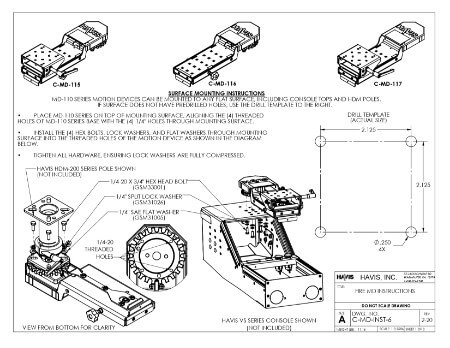

Installation Instructions (PDF)
Installation Instructions (PDF)
Download share

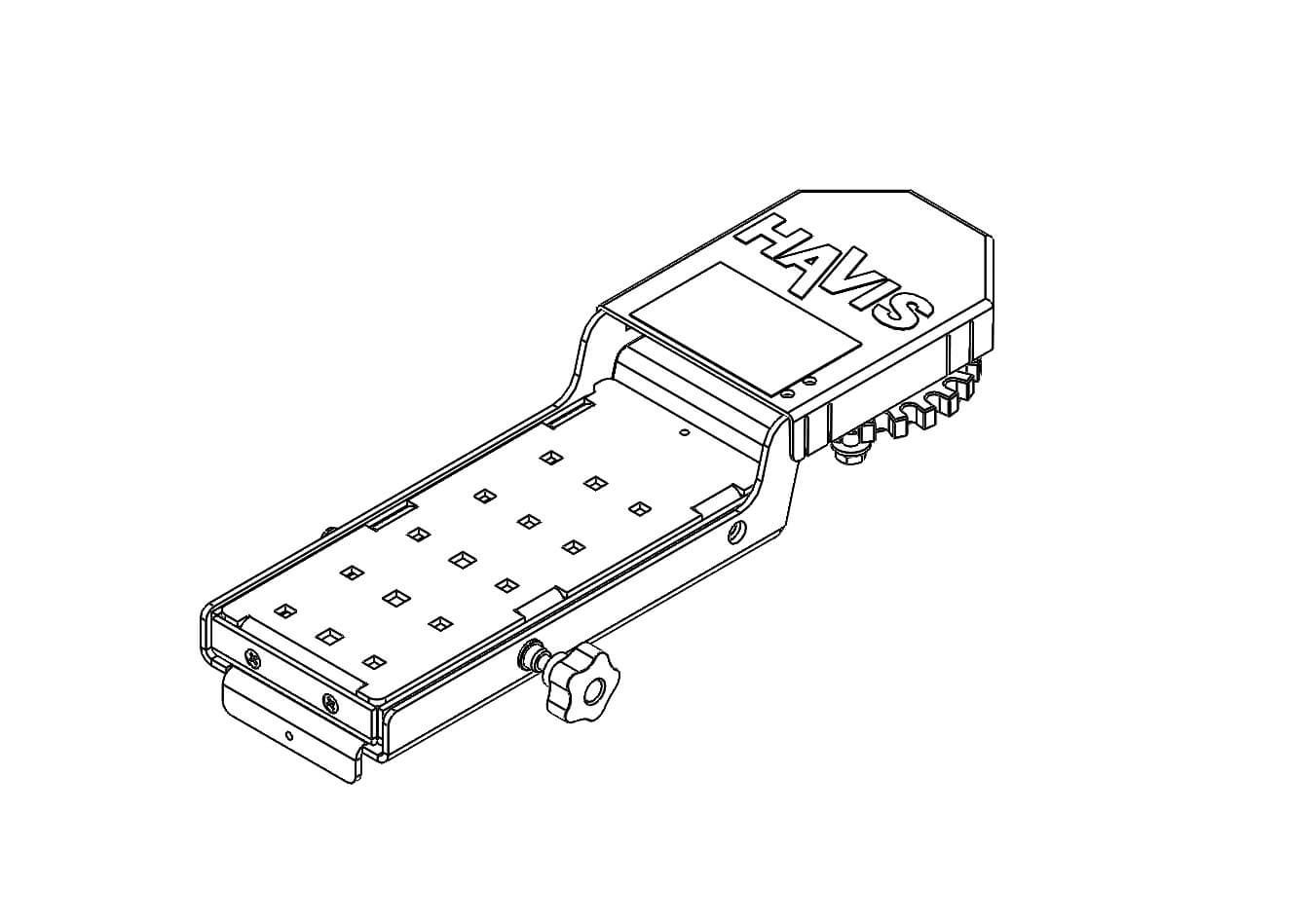

Isoview Drawing (JPG)
Isoview Drawing (JPG)
Download share

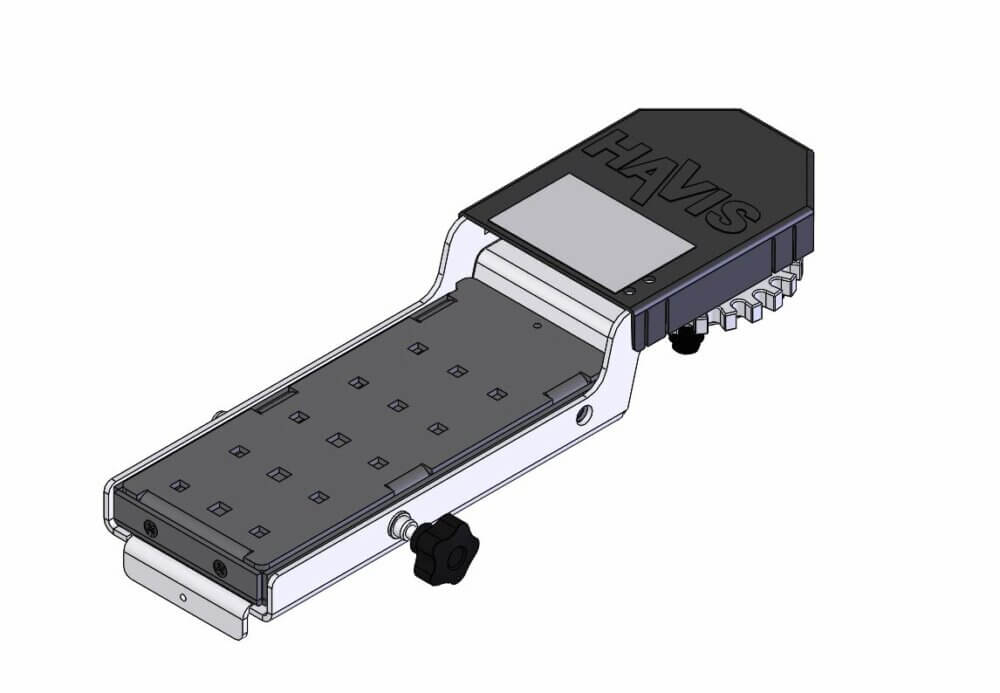

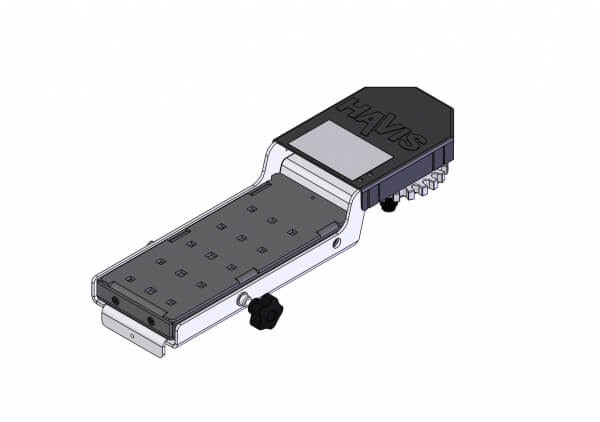

3D Rendering
