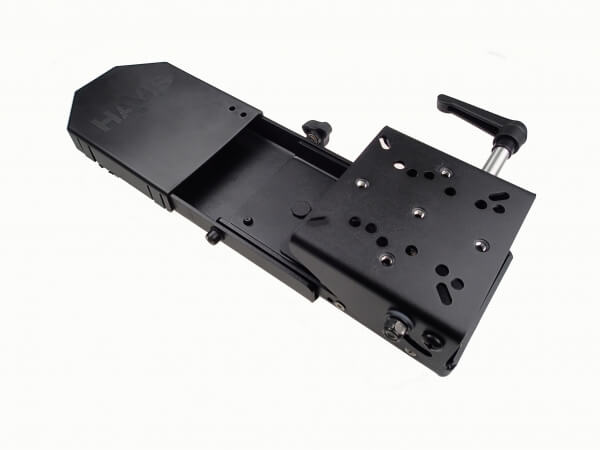

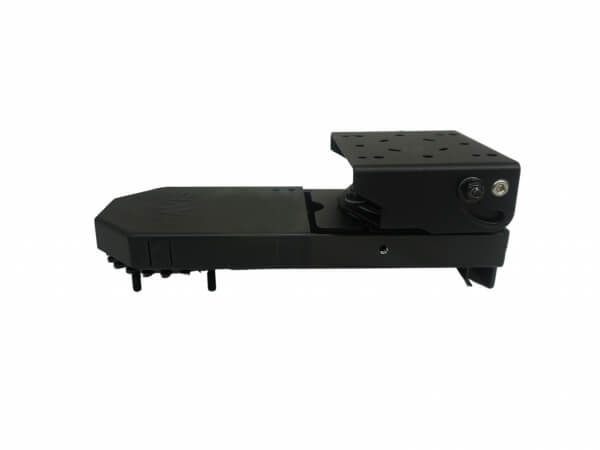

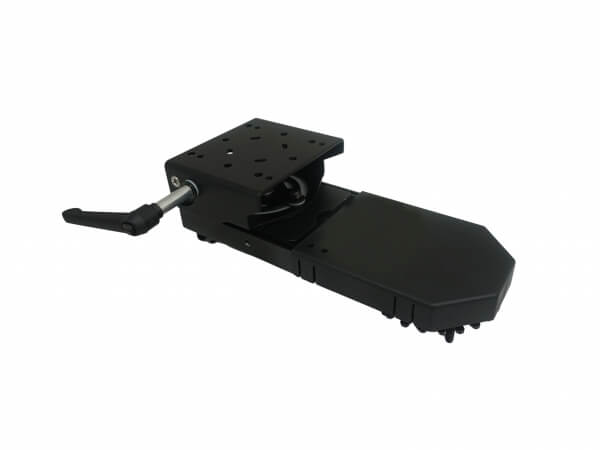

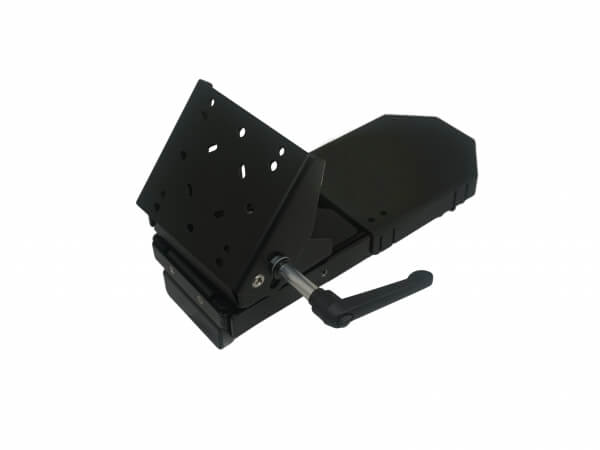

Features

  • Front access control lever allowing for easy operation of entire arm rotation, and offering ergonomically supreme function
  • 360 degrees of smooth rotation for ideal computing device viewing angles from both the driver and front passenger seats
  • Swing arm has 24 locking points, or every 15 degrees of rotation to maximize placement options
  • Slide out extends up to 3.75" with smooth gliding action to lengthen arm from 11.25" up to 15"
  • Includes C-MD-202 motion adapter that can provide up to 180 degrees of rotation and 90 degrees of tilt for laptops, tablets, see C-MD-202 page for additional information
  • Locking handles provided for both slide and tilt functions
  • Slide locking handle can be installed on either left or right side
  • Rotation and slide tension easily adjusted with hand tools, no disassembly required
  • Ruggedized design adds protection for improved safety of occupants and equipment
  • Material: rugged heavy gauge black powder coated steel and machined 6061 aircraft aluminum for strength, durability, and rust prevention
  • Mounting pattern: 4 hole @ 2.125" square (1/4" Mounting hardware provided) to attach to a HDM pole or Havis consoles with forward mounting platform.

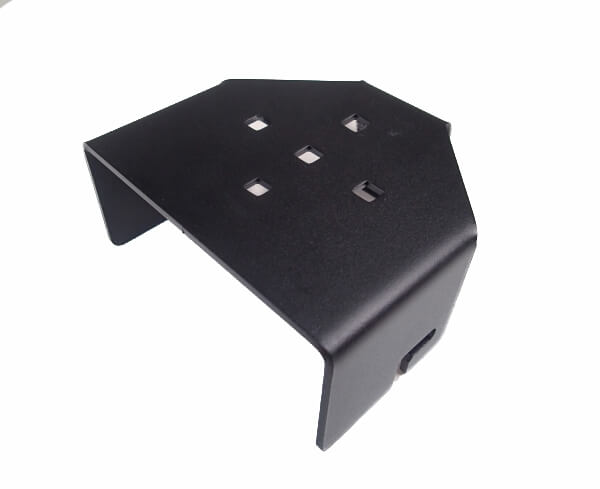

  • Will accept C-ADP-110 adaptor

Specifications

Interior Specifications:
Gross Weight:8.25 lbs

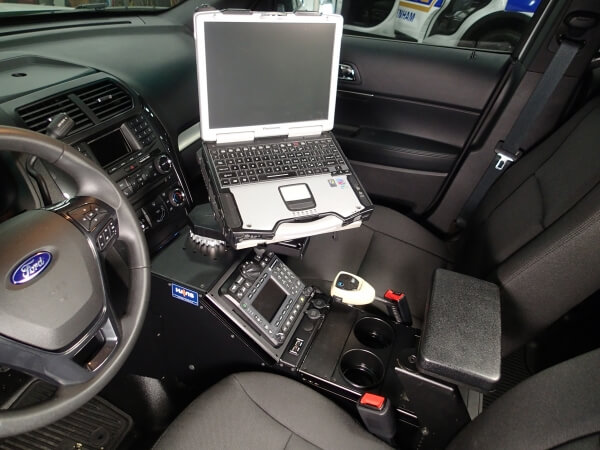

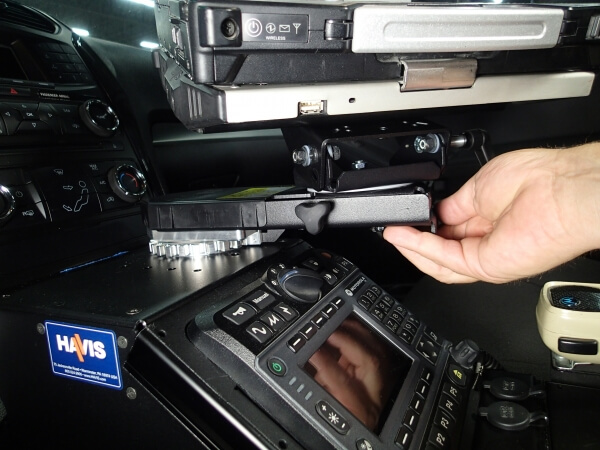

Application Gallery

product galleryproduct gallery

Resources

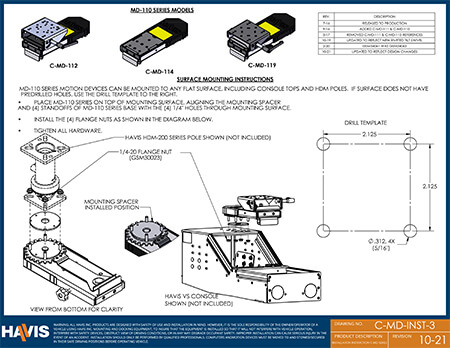

Installation Instructions (PDF)
Installation Instructions (PDF)
Download share

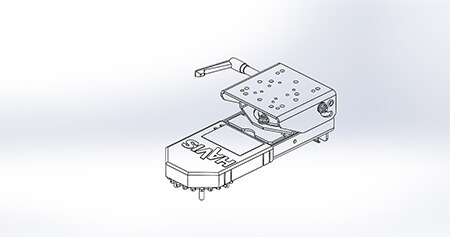

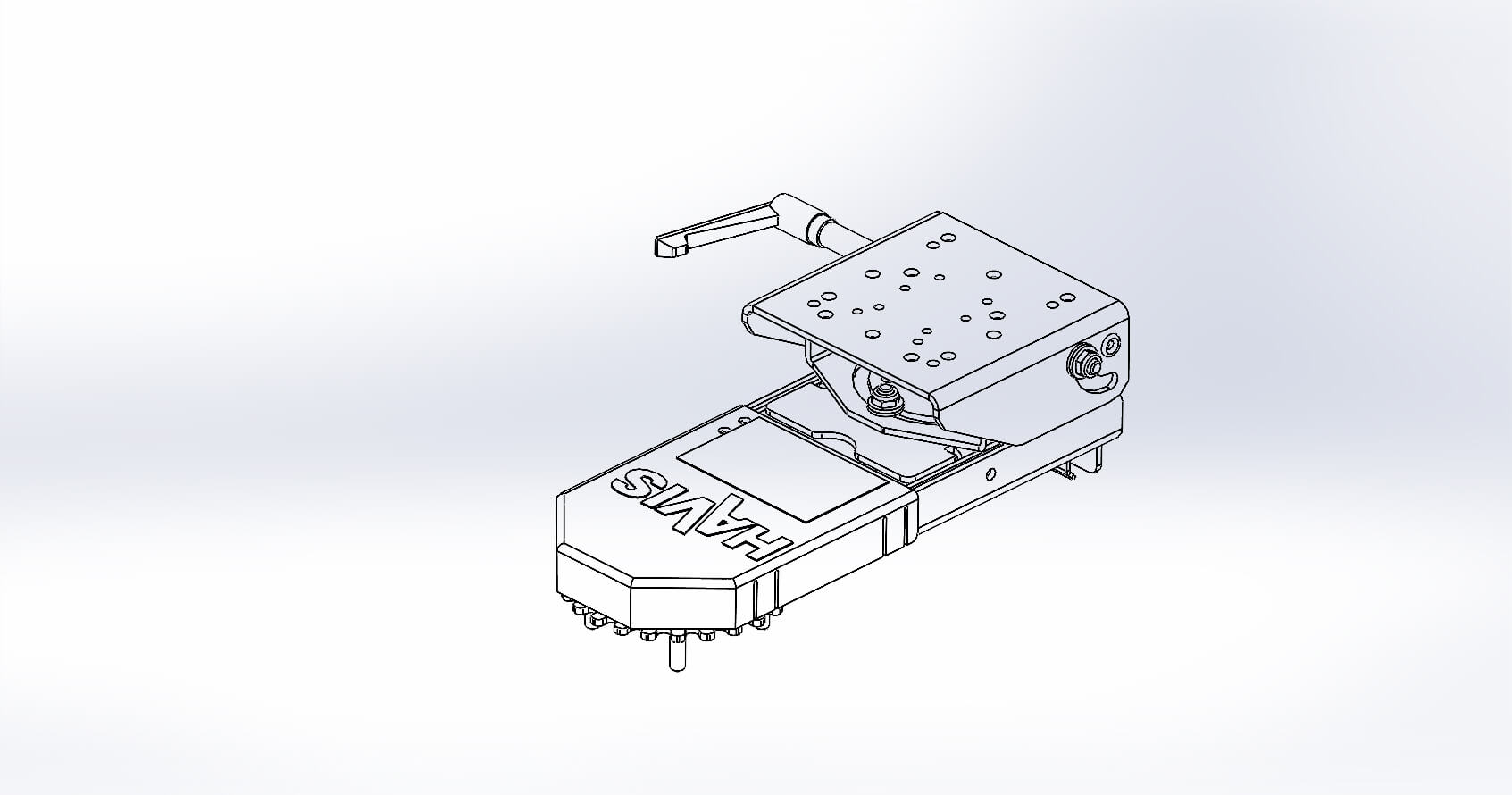

Isoview Drawing (JPG)
Isoview Drawing (JPG)
Download share
