Features

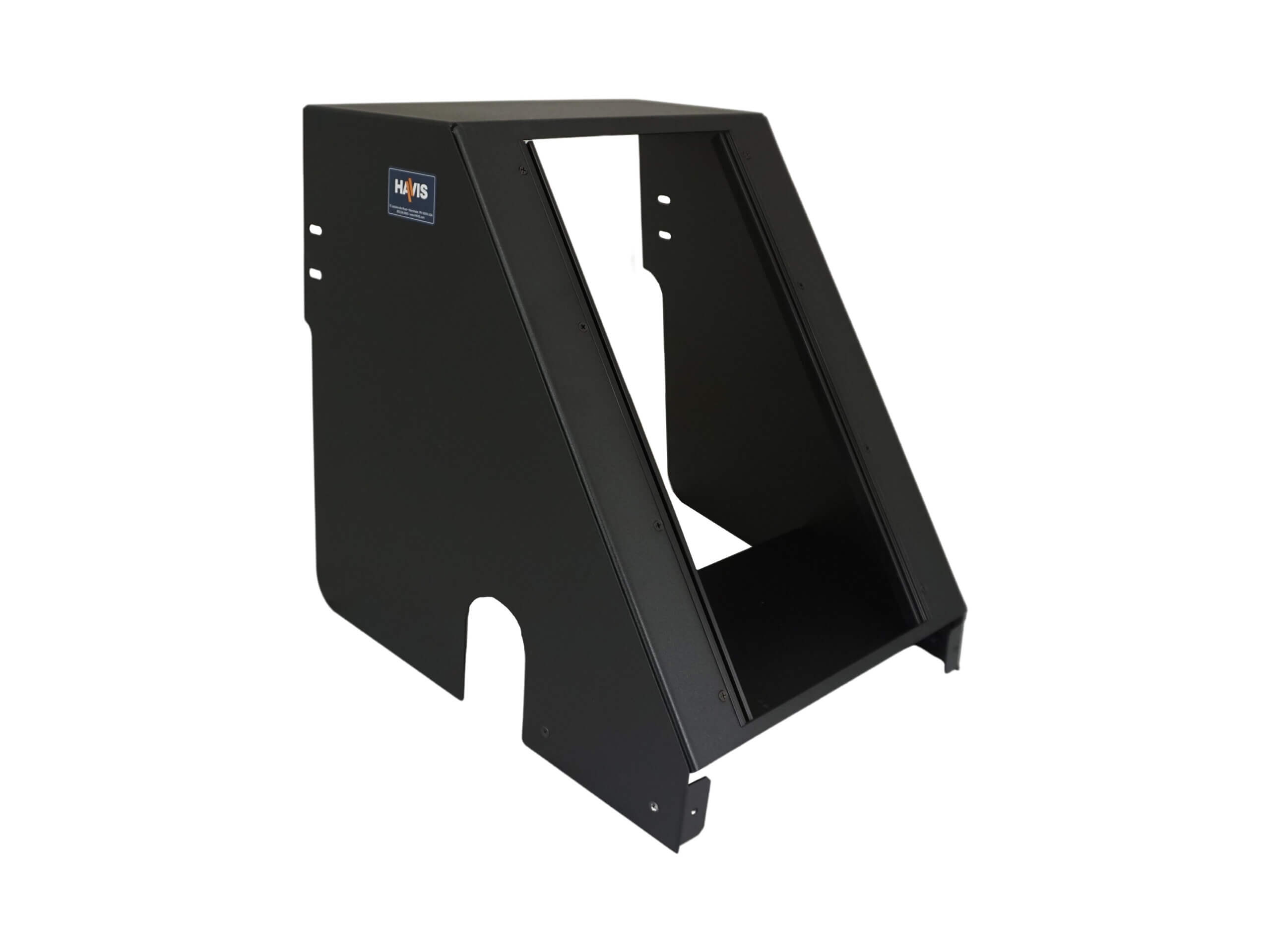

  • 18" vehicle-specific console for 2002-2025 Chevrolet G-Series or GMC Savanna van Model
  • Easy to install
  • No permanent modification required
  • Designed to mount to vehicle floor surface
  • No vehicle mounting kit required
  • 14 gauge formed steel housing with extruded aluminum top frame
  • Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
  • Ships motor freight when ordering 2 or more
  • Does not work with C-HDM-107 computer mount
  • For gas engine van only, does not work in diesel engine van
  • View console accessories here

Specifications

PRODUCT SPECIFICATIONS:
Overall measurements:9" high x 9" wide x 28.25" long (including forward trim panel)
Height:19"
Width at engine cover:17"
Width at face (controls):13.5"
Depth for controls: top= 9" , middle= 12", bottom=4"
Console top platform:8.5" x 13.5" wide (tapers out to 17")
Extends out from engine cover at - FLOOR:20"
Gross weight:28 lbs

Resources

Installation Instructions (PDF)
Installation Instructions (PDF)
Download share
Written Product Specs (PDF)
Written Product Specs (PDF)
Download share

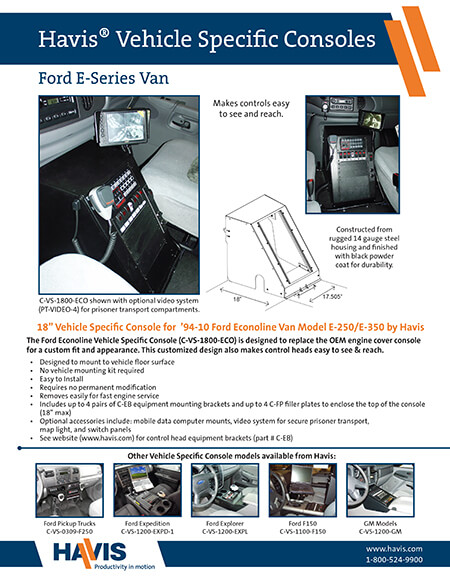

Product Sales Sheet (PDF)
Product Sales Sheet (PDF)
Download share
Isoview Drawing (JPG)
Isoview Drawing (JPG)
Download share

Application Gallery

product galleryproduct gallery

Compatibility

2002-2025 Chevrolet G-Series
2002-2025 Chevrolet G-Series
GMC Savana Van
GMC Savana Van

Related products

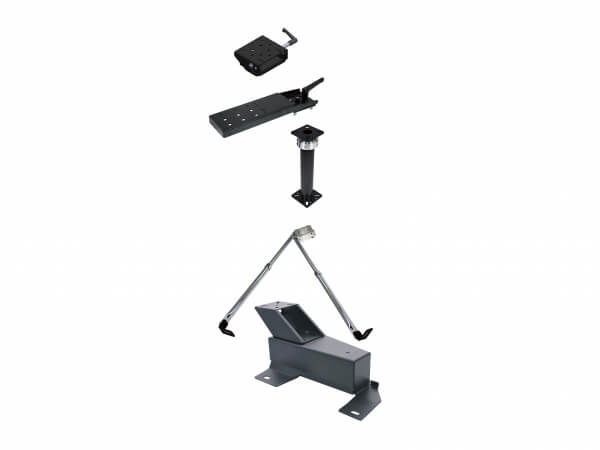

  • Standard Pedestal Mount Package For 1997-2025 Chevrolet G-Series
