Features

  • 2020-2024 Ford Escape

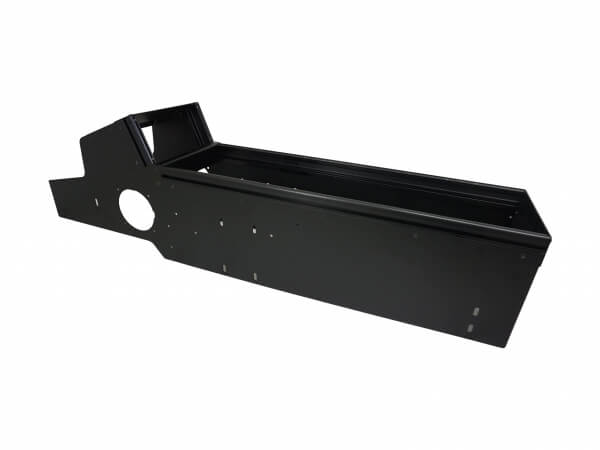

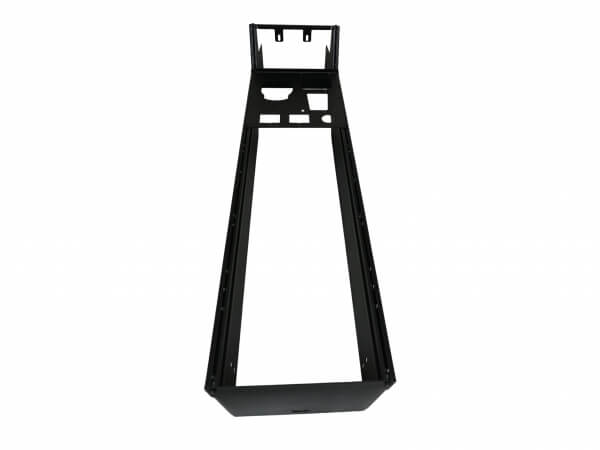

  • Angled console with 23" of total internal equipment mounting space
  • 4" front angled, 19" rear horizontal mounting space & 68° degree of angle
  • Mounts between bucket seats and fits to dash contour
  • Includes:

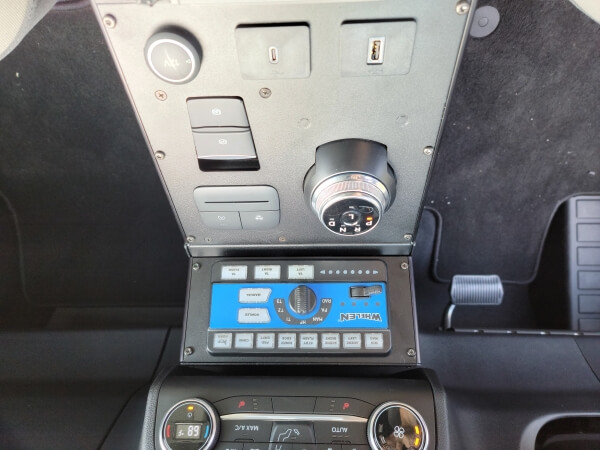

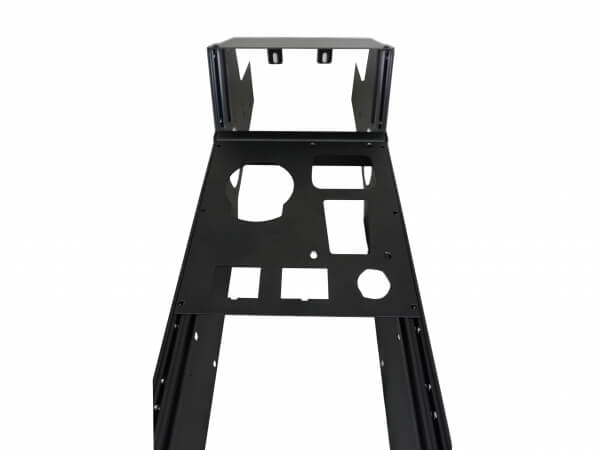

  • The provided bracket houses all OEM modules for shifter, drive mode, parking brake, USB and 12V outlet
  • Two (2) additional 12V DC lighter plug outlets with attached caps, wire and fuse included
  • Console includes provisions for external side mount poles C-HDM-204 or C-HDM-214 (sold separately)
  • Provisions for relocating OEM wireless phone charger not included
  • Filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
  • Made in USA
  • Lifetime warranty
  • View console accessories here

Specifications

PRODUCT SPECIFICATIONS:
Material:Heavy gauge steel
Finish:Black powder coat
Overall Measurements:13.0" high x 9" wide x 42.5" long (including forward trim panels)
Product Weight: 29.74 lbs
Gross weight:37 lbs

Resources

Installation Instructions (PDF)
Installation Instructions (PDF)
Ford Escape Teaser Sheet
Ford Escape Teaser Sheet

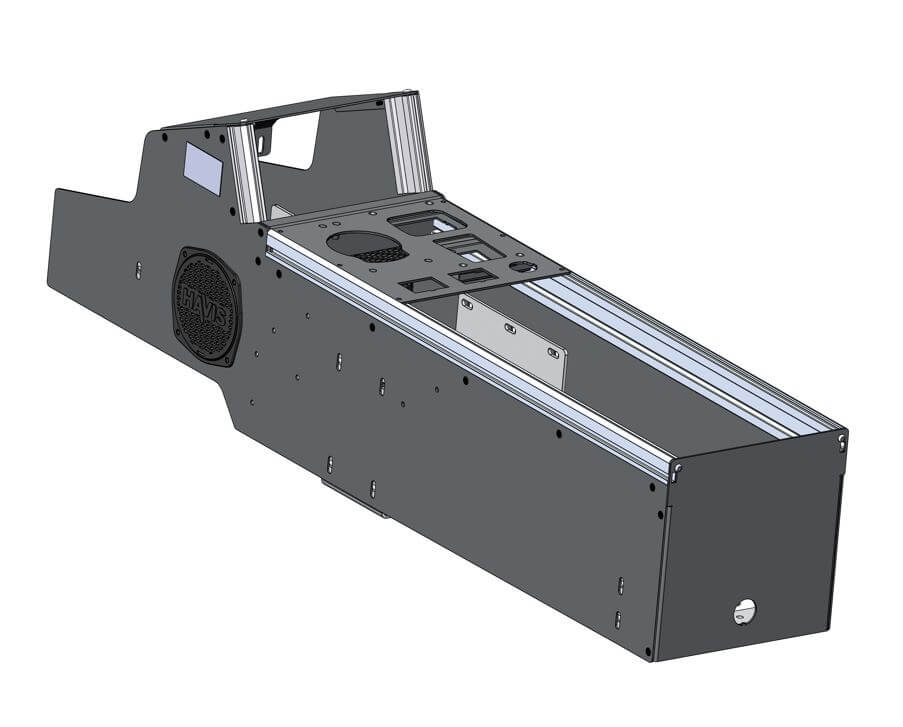

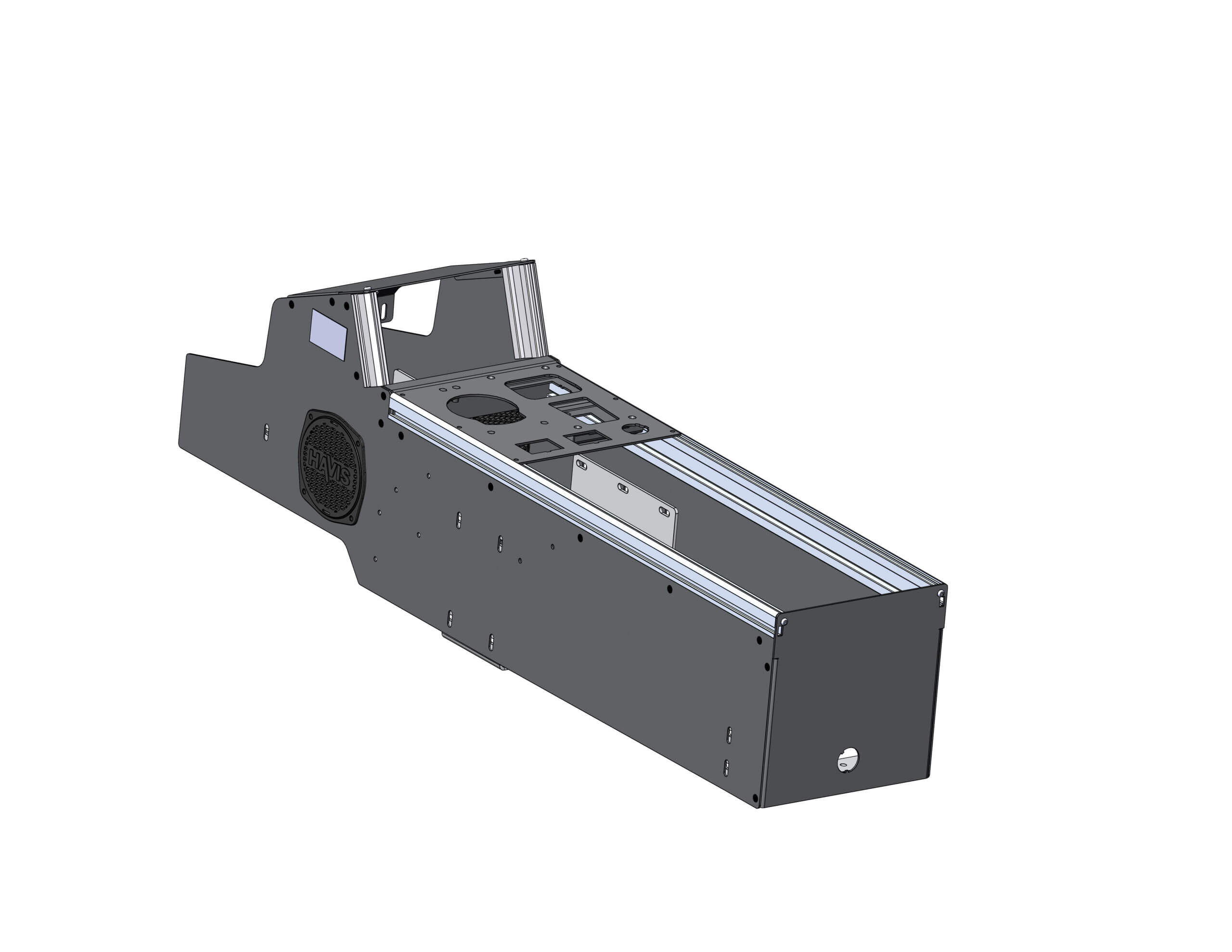

3D Rendering
3D Rendering

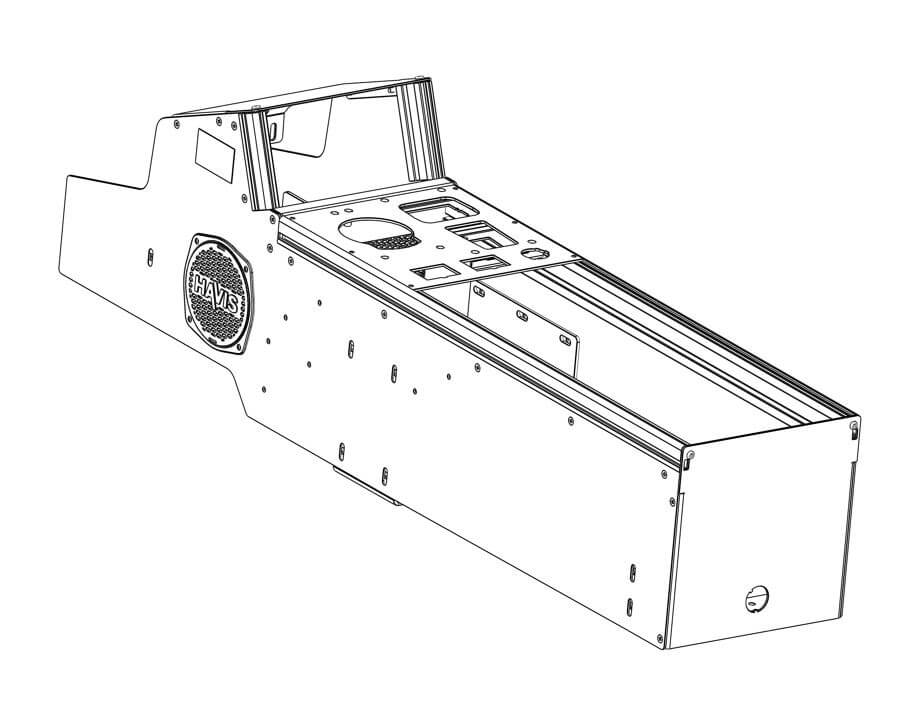

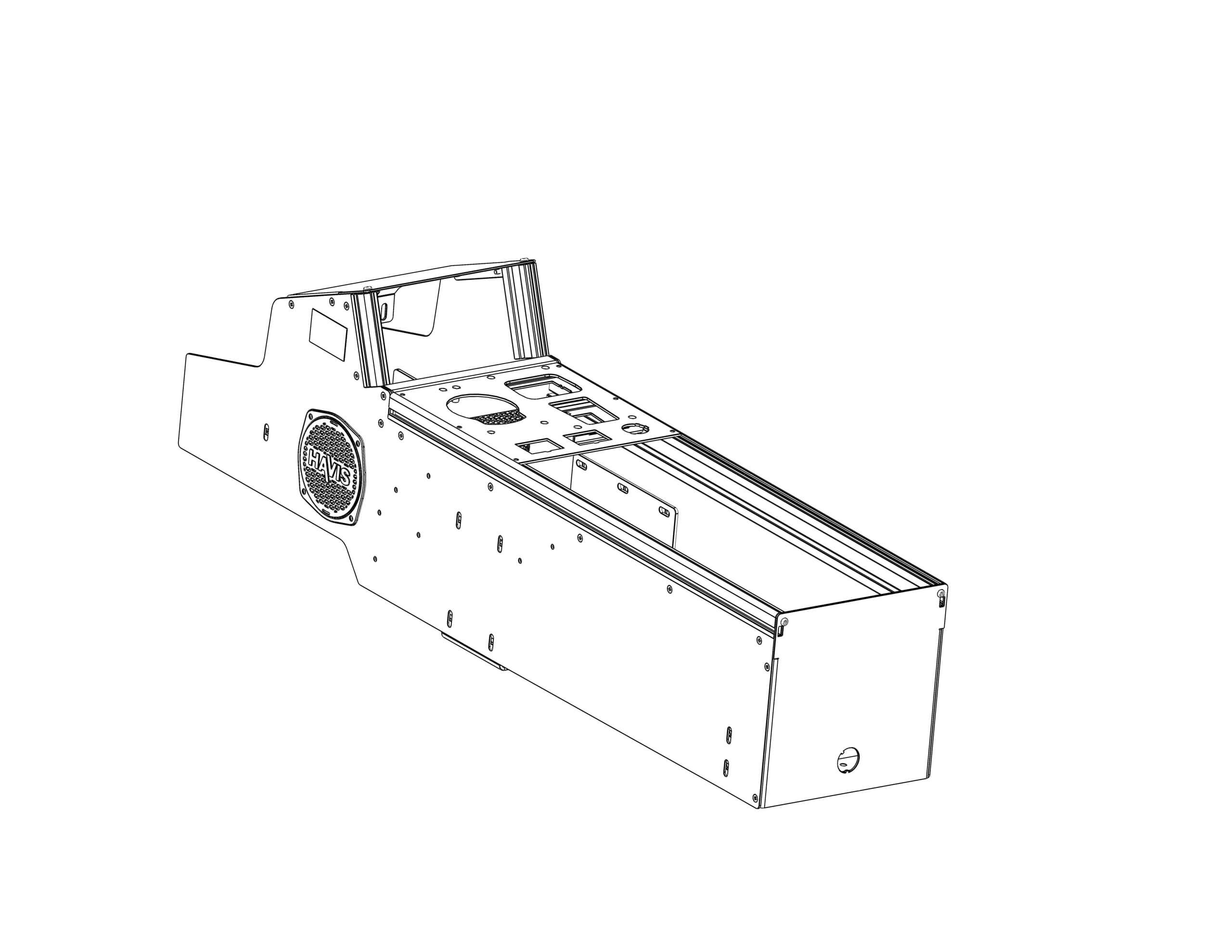

Isoview
Isoview

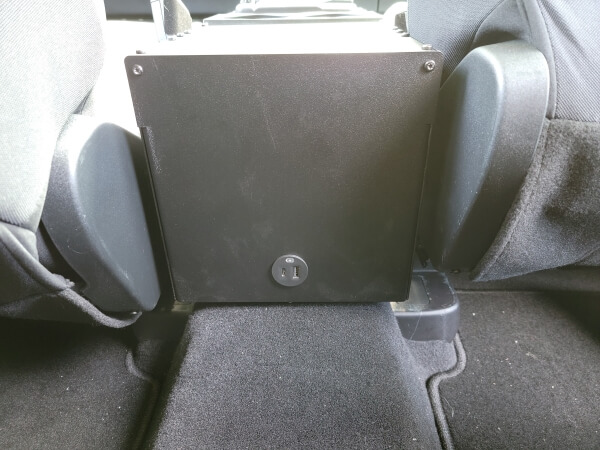

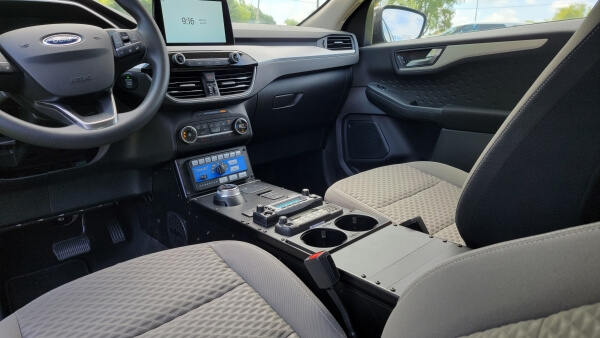

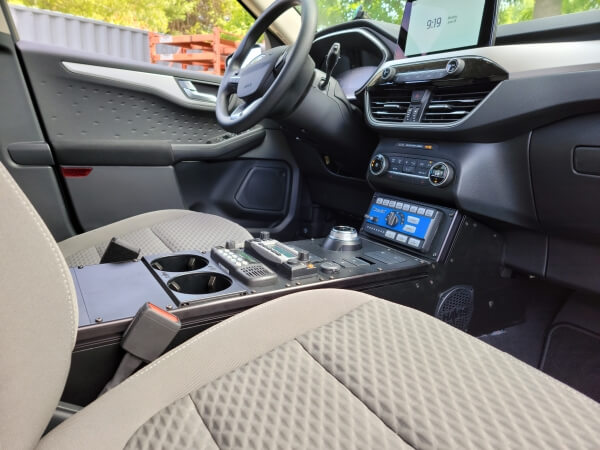

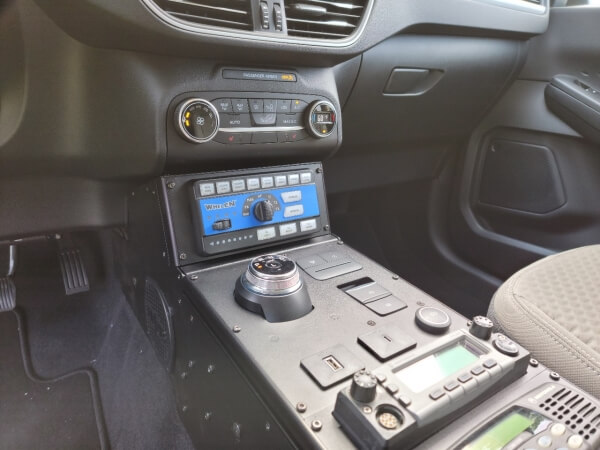

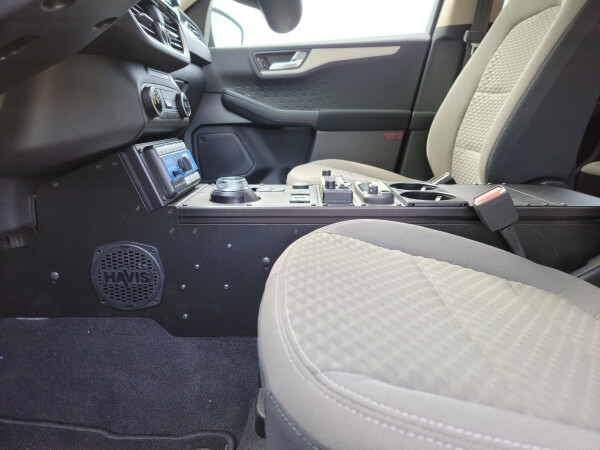

Application Gallery

Compatibility

2020-2024 Ford Escape
2020-2024 Ford Escape
