Features

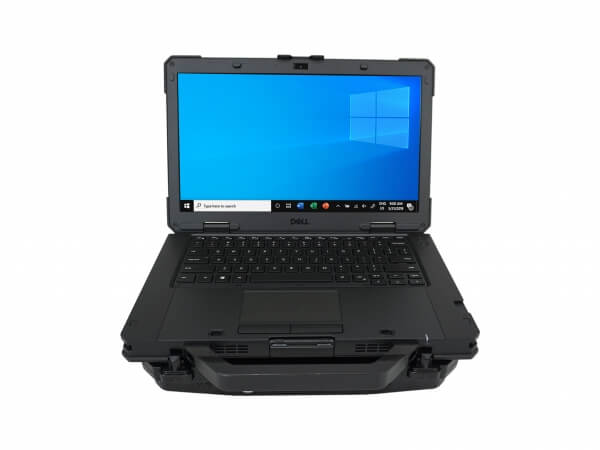

  • Supports Dell's 5430, 7330, 5420, 5424, & 7424 Rugged Notebooks in public safety, utility, and other demanding environments
  • Adjustable & lockable front arms accommodate new and legacy notebooks
  • One-handed docking & undocking (patent pending)

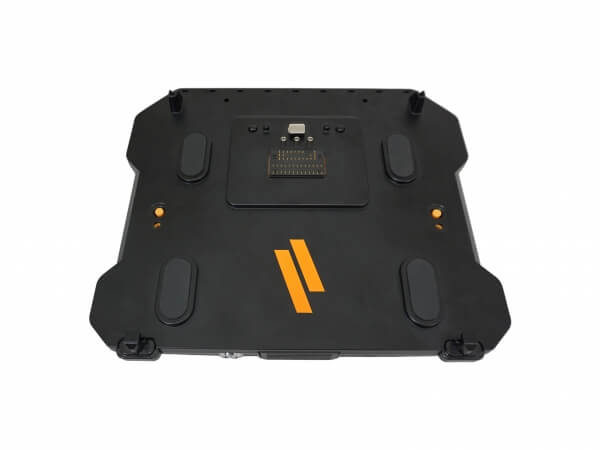

  • Spring-loaded connector head
  • Compact & lightweight
  • U-style mounting bracket with seating notch for easy installation
  • Rounded corners and edges for safety
  • Access to all notebook buttons and ports when docked
  • Standard port replication with integrated cable management system
  • Also compatible with 5414, 7214, 5404 & 7204 notebooks
  • Keyed lock
  • Compatible with screen support (DS-DA-412, sold separately)
  • Made in USA

Specifications

PRODUCT SPECIFICATIONS:
Compatible devices:Dell Rugged Notebooks 5430, 7330, 5420, 5424, 7424, 5414, 7214, 5404, 7204
Certifications:UL Safety (pending); Vibration Testing: MIL-STD 810H 514.8, Crash Test: SAE J1455 30mph crash testing, Cycle Test: latch handle & docking connectors mechanism 30,000 cycles, Environmental Testing: Hot/Cold operational (-20 C to 60 C) & storage (-40 C to 85 C), EMC: EN 50498:2010; ESD: ISO 10605:2008

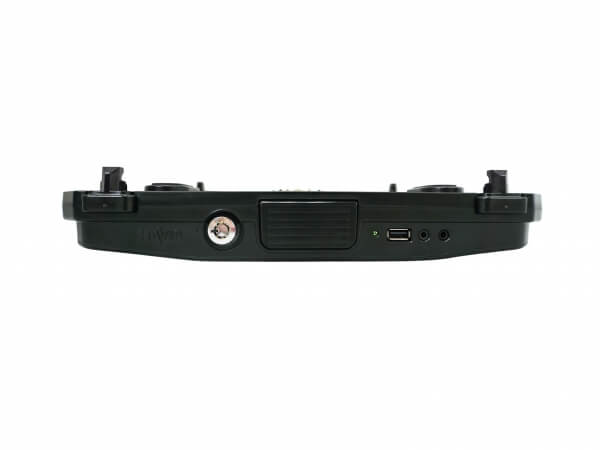

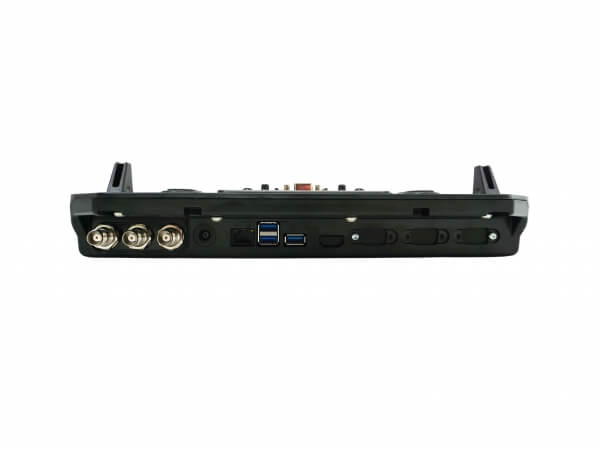

Connectivity includes:Fully-powered USB 3.0 (3), USB: fully-powered USB 2.0 (1, front facing), Ethernet: RJ45 Jack, Gigabit LAN 10/100/1000 Mb/s. (1), speaker & mic: (1 each, front facing), input voltage: 19.5V DC, antenna connections: triple pass-through (TNC connectors)
Dimensions: Height 10.33" (26.23 cm) with arms collapsed or 10.60" (26.91 cm) with arms extended, width 12.40" (31.48 cm), depth 2.73" (6.94 cm)
Product weight:3.30 lbs (1.50 kg) without mounting bracket, 4.75 lbs (2.15 kg) with mounting bracket
Gross weight:5 lbs

Resources

Owner's Manual (PDF)
Owner's Manual (PDF)
Download share
Dell Brochure
Dell Brochure
Download share
DS-DELL-420 Sales Sheet
DS-DELL-420 Sales Sheet
Download share
Dell Speeds & Feeds
Dell Speeds & Feeds
Download share
Dell Speeds & Feeds - French
Dell Speeds & Feeds - French
Download share
Dell Speeds & Feeds - German
Dell Speeds & Feeds - German
Download share
Dell Speeds & Feeds - Spanish
Dell Speeds & Feeds - Spanish
Download share

Application Gallery

product galleryproduct gallery

Compatibility

Dell Rugged Notebooks 5430, 7330, 5420, 5424, 7424, 5414, 7214, 5404, 7204
