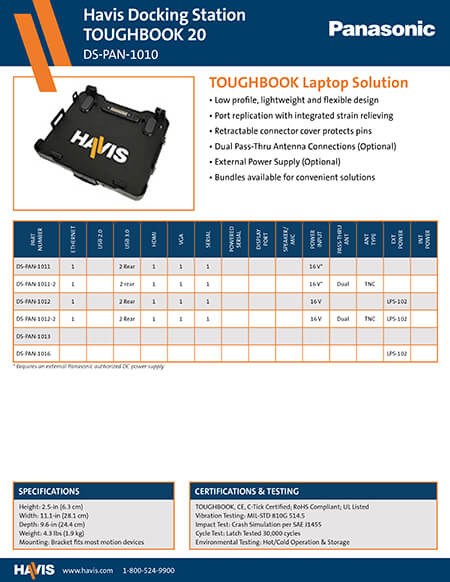

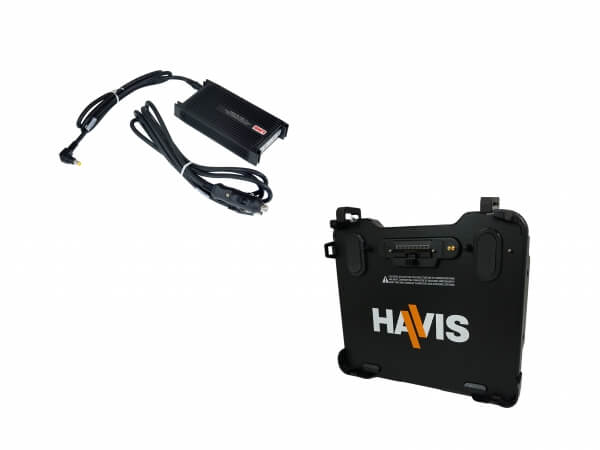

DEVMT, DOCKST, PAN, 20, [2]HGANT,

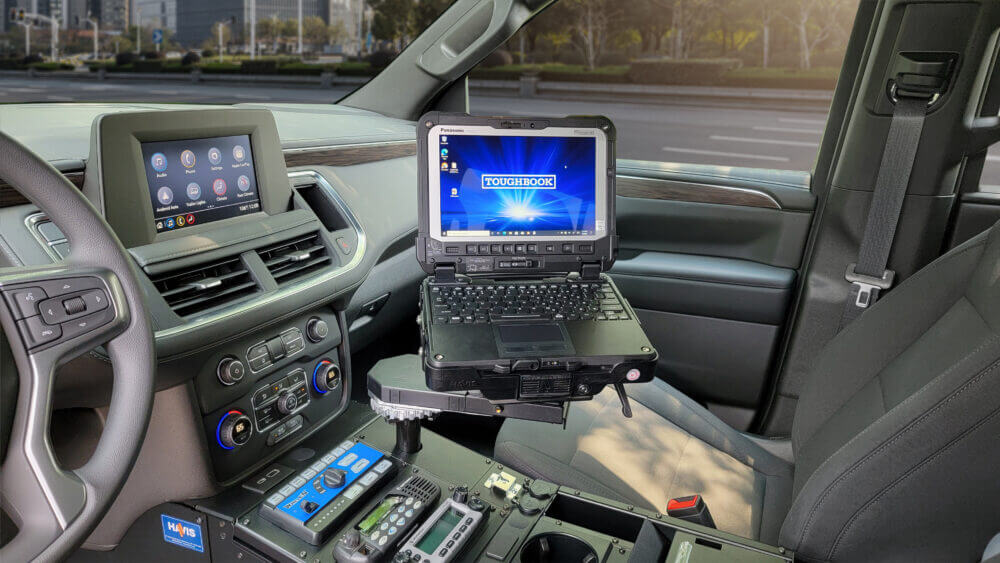

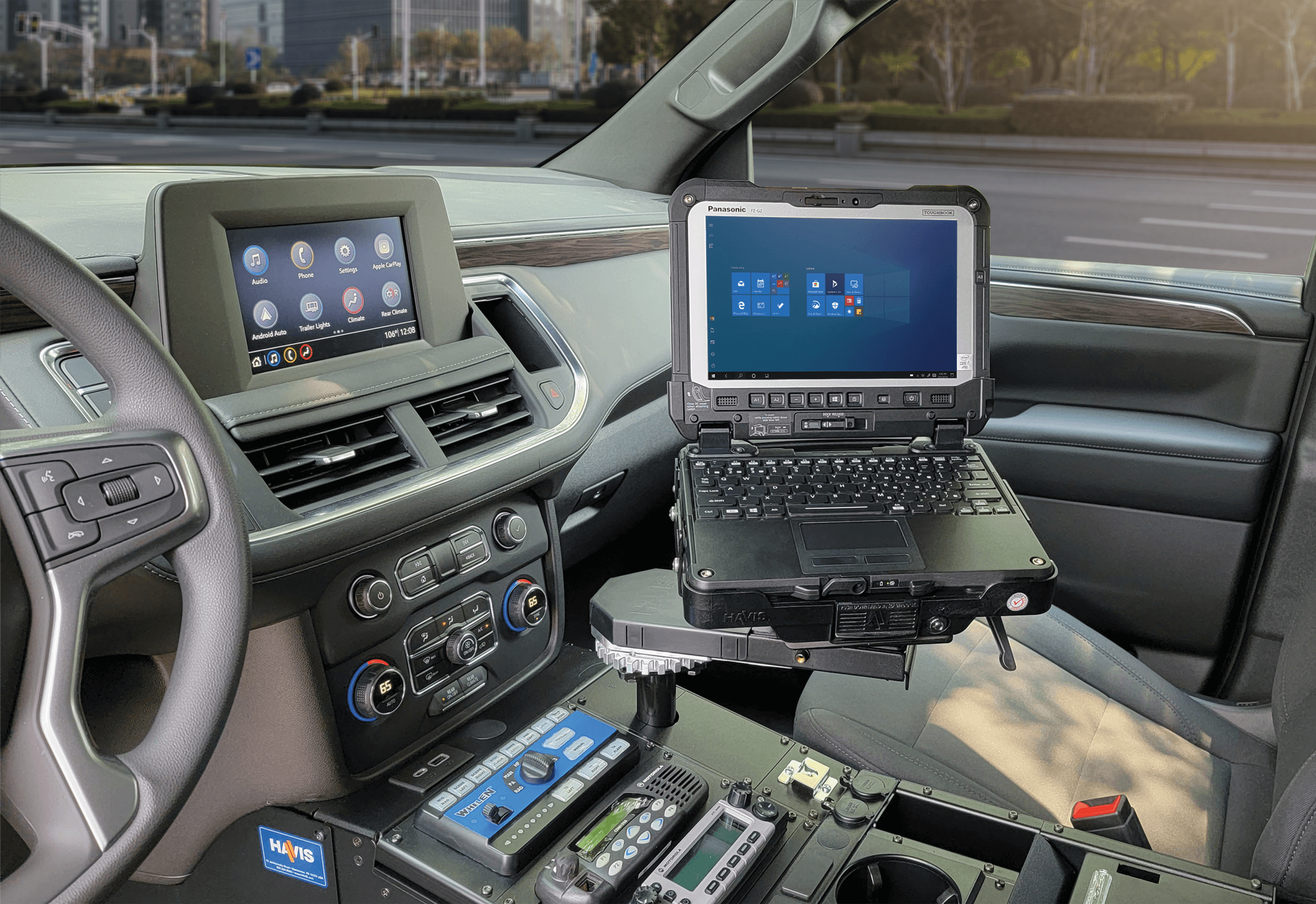

Compatible computers: | Panasonic TOUGHBOOK G2 2-in-1 & TOUGHBOOK 20 2-in-1 devices |
---|---|
Dimensions: | 2.5" (6.35 cm) x 11.06" (28.09 cm) x 9.6" (24.38 cm) |
Certifications: | Panasonic Toughbook Certified, UL Safety Certified, Vibration Testing: MIL-STD 810G 514.8, Crash Test: SAE J1455 30mph crash testing, Cycle Test: latch handle & docking connectors mechanism 30,000 cycles, Environmental Testing: Hot/Cold operational & storage |
Connectivity: | USB: fully-powered USB 3.0 (2), Ethernet: RJ45 Ethernet (1), Serial: DB9 (9-Pin) connection (1), Video: HDMI (1), VGA (1), Dock Input Power: 16.0 V DC, Antenna connections: Dual pass-through (TNC connectors) |
Product weight: | 4.30 lbs. (1.95 kg) |
Gross weight: | 6 lbs |
If you need installation help, please contact our Sales department by calling 1.800.524.9900 or by contacting us online. If Sales is unable to answer your question, they will direct you to the appropriate Technical Support representative to assist with your installation.
