Features

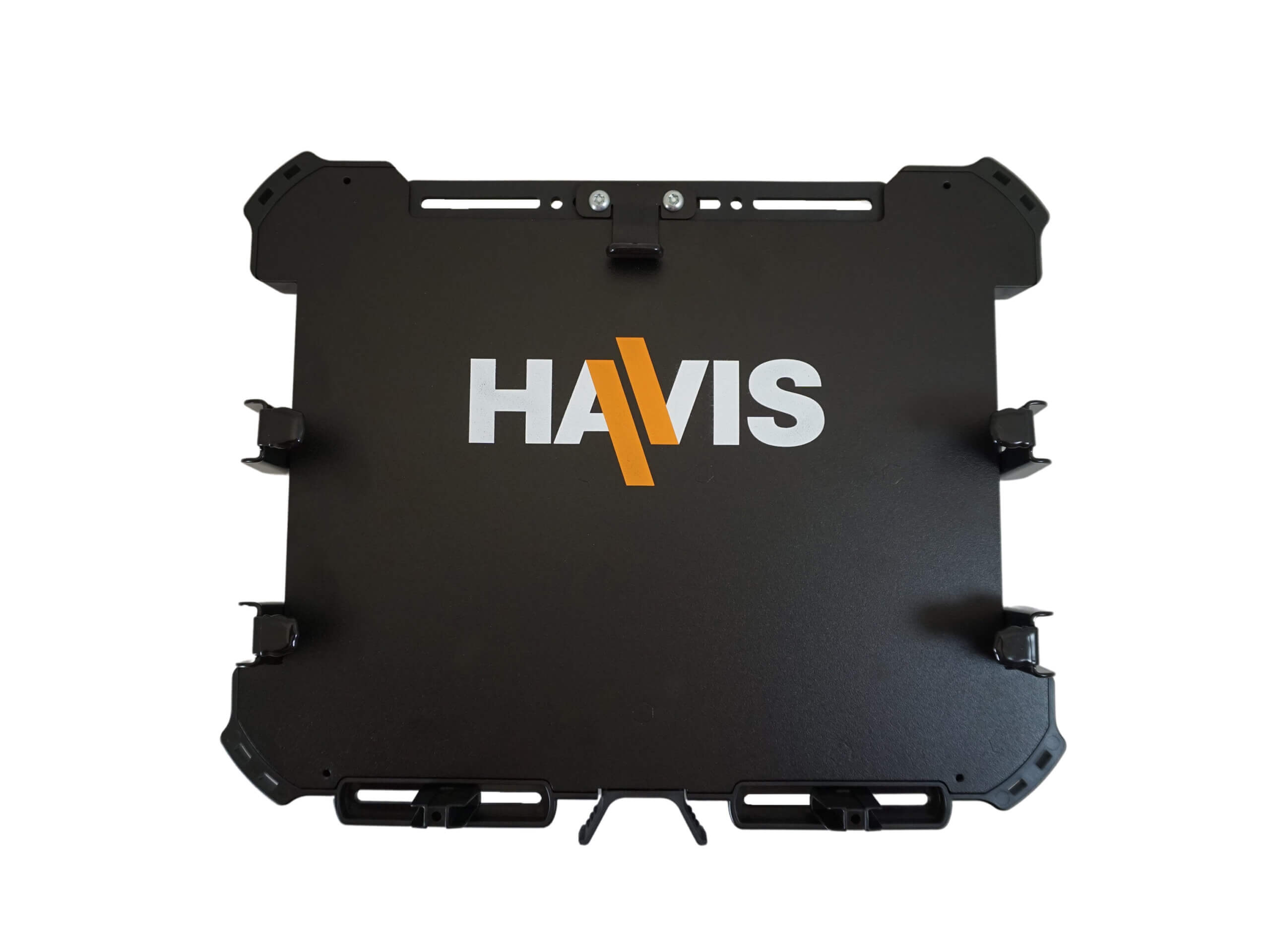

  • Upgraded next generation universal tray, re-designed with customer feedback incorporated
  • Lighter yet still ultra-rugged, weighing 3.72 lbs allowing more mounting options
  • High value non-electronic computing solution, optimized for Dell 5430 and 7330 Rugged Notebooks
  • UT-1007 ships as UT-1002 + UT-1007-KIT + easy lug kit install instructions
  • Longer life span with high performance injection molded materials enabling future re-deployments
  • Extra durable powder coat painted top plate, creating a hard finish tougher than conventional paint
  • Ultra-thin and low profile maximizes space and visibility in your mobile office
  • Increased vertical and horizontal adjustability allows a broader range of compatible computing devices
  • Smooth glide functionality for easier stationing and removing of computing device for ultimate portability
  • Designed with round corners to add safety and minimize risk in potential accidents & airbag deployment
  • Sliding hold down lugs allow for flexibility and access to computing device ports and inputs
  • Unique strain relief holes provide organized cabling and secure connectivity of peripherals
  • Enhanced security and safety with built in locking mechanism for peace of mind against theft and uncradling
  • Advanced reliability, proven through product testing and long term customer use cases
  • Integrated mounting points for the addition of optional power supplies and rugged Communications hub
  • Configure Your Computing Device

Specifications

PRODUCT SPECIFICATIONS:
Compatible computer adjustable sizes:
  • W=11.630"-14.350"
  • D=8.466"-10.166"
  • H=0.67"-1.26"
Compatible computer:Dell 5430 and 7330
Testing & certifications:RoHS, crash tested up to 30 mph
Info:VESA hole pattern for standardized mounting and easier installation
Maximum product dimensions:Width: 15.4" (39.12 cm) x Depth: 12.56" (31.90 cm) x Height: 2.63" (6.67 cm)
Minimum product dimensions:Width: 13.47" (34.22cm), Depth: 11.30" (28.70 cm), Height: 2.29" (5.83 cm)
Product weight:3.71 lbs. (1.68 kg)
Gross weight:4 lbs

Resources

Owner's Manual (PDF)
Owner's Manual (PDF)
Download share

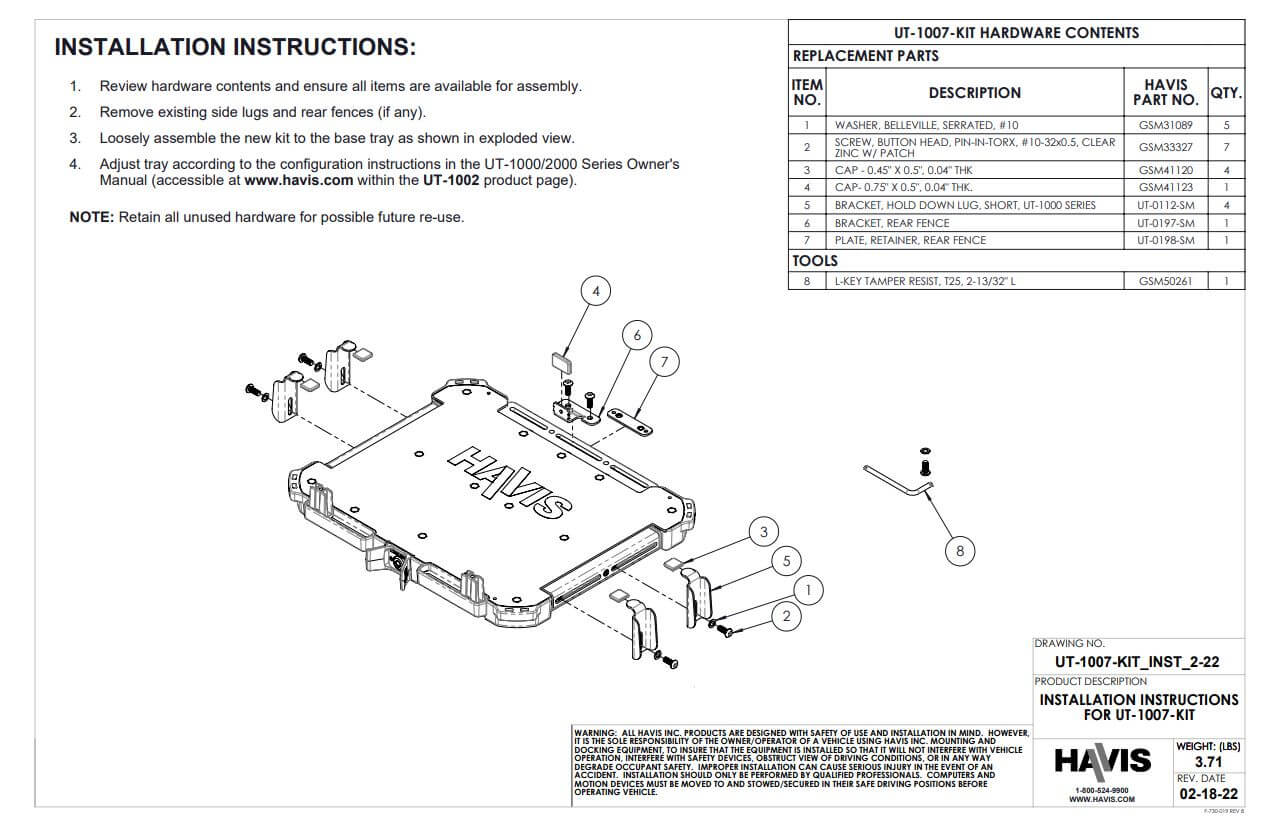

Installation Instructions
Installation Instructions
Download share

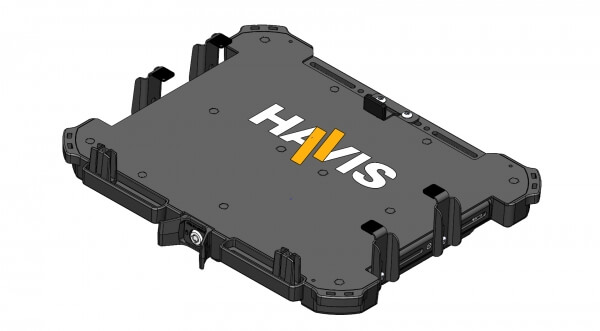

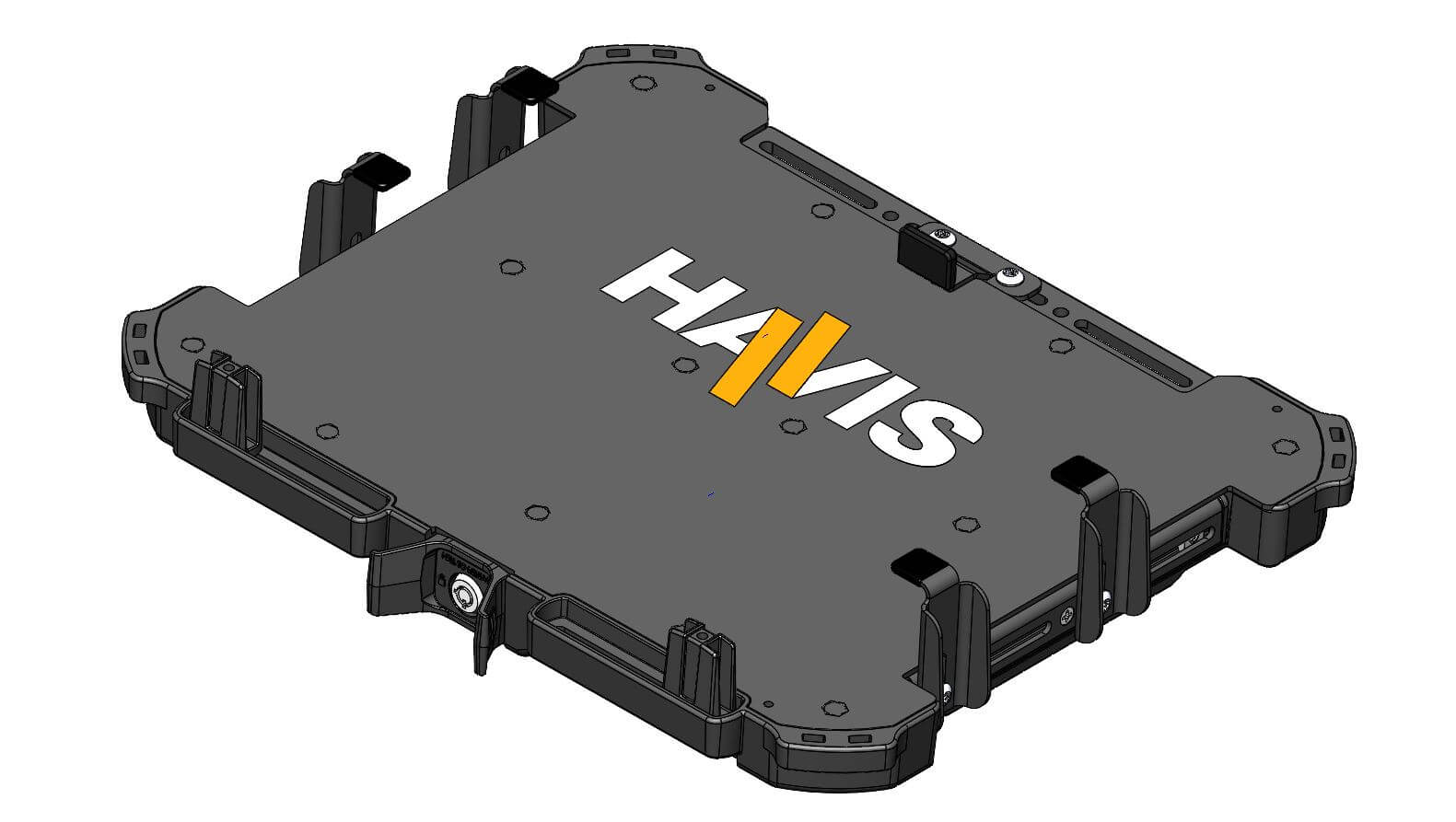

3D Rendering
3D Rendering
Download share

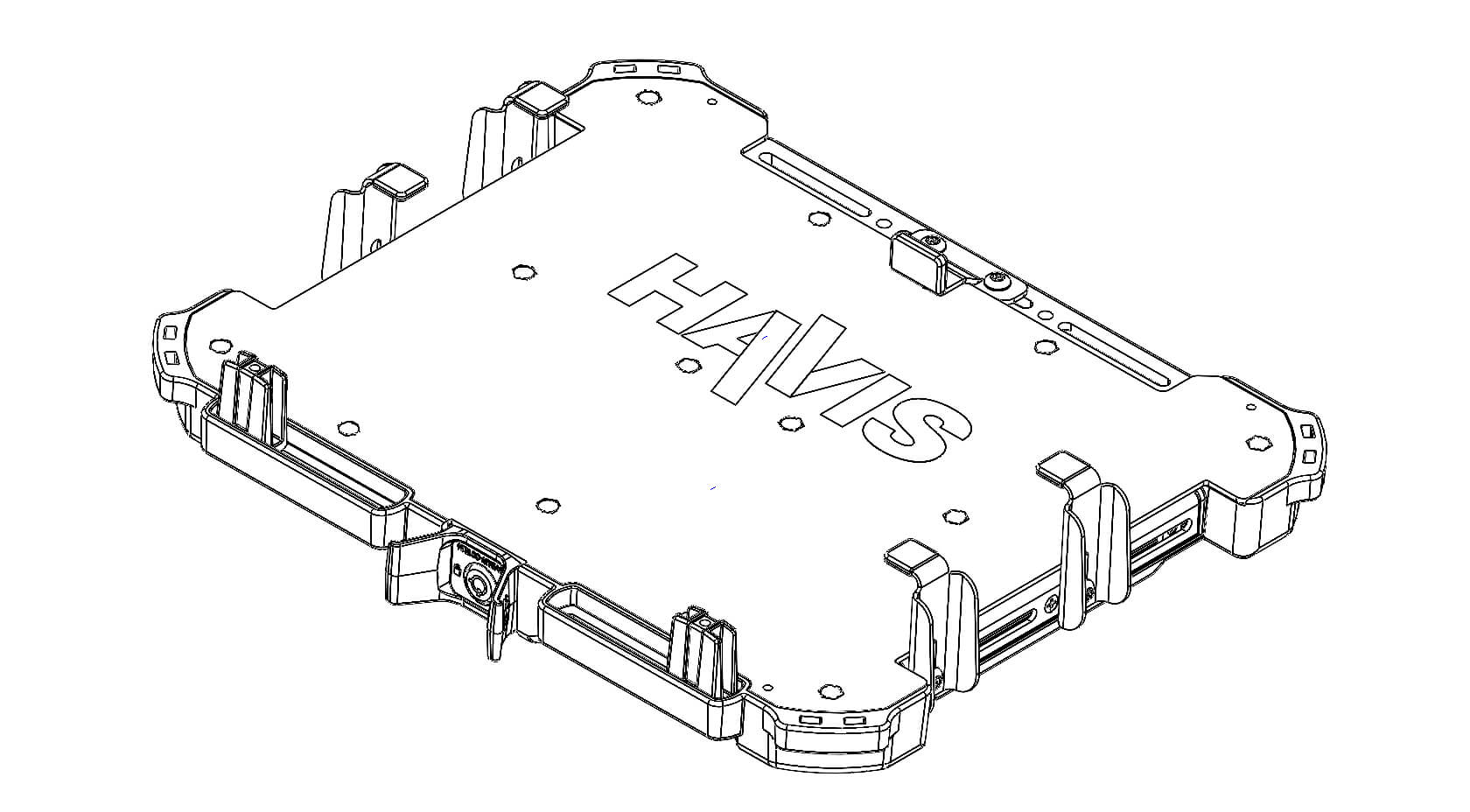

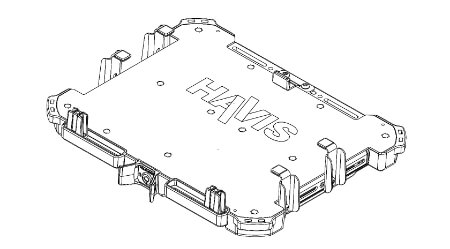

Isoview Drawing (JPG)
Isoview Drawing (JPG)
Download share
