Features

  • Supports Dell's Dell Pro Rugged 14" and 13", 5430, 7330, 5420, 5424, & 7424 Rugged Notebooks in public safety, utility, and other demanding environments
  • Advanced port replication includes video capability as well as standard options to support mission-critical peripherals
  • Front facing USB-C (3.2) port
  • LED power indicator
  • Updated One-handed docking & undocking with pull latch
  • Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
  • Compact and lightweight with a reduced footprint
  • U-style mounting bracket with seating notch for easy installation
  • Requires a 120W external power supply (sold separately)
  • Provides access to all notebook buttons and ports when docked
  • Compatible with screen support (DS-DA-412, sold separately)
  • Integrated cable management system
  • Rounded edges and corners for comfort and safety
  • Keyed lock for added security
  • Made in USA

Specifications

PRODUCT SPECIFICATIONS:
Compatible devices:Dell Rugged Notebooks Pro Rugged 14", Pro Rugged 13", 5430, 7330, 5420, 5424, 7424, 5414, 7214, 5404, 7204
Certifications: Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -20° C to 63° C (-4° F to 145° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F)

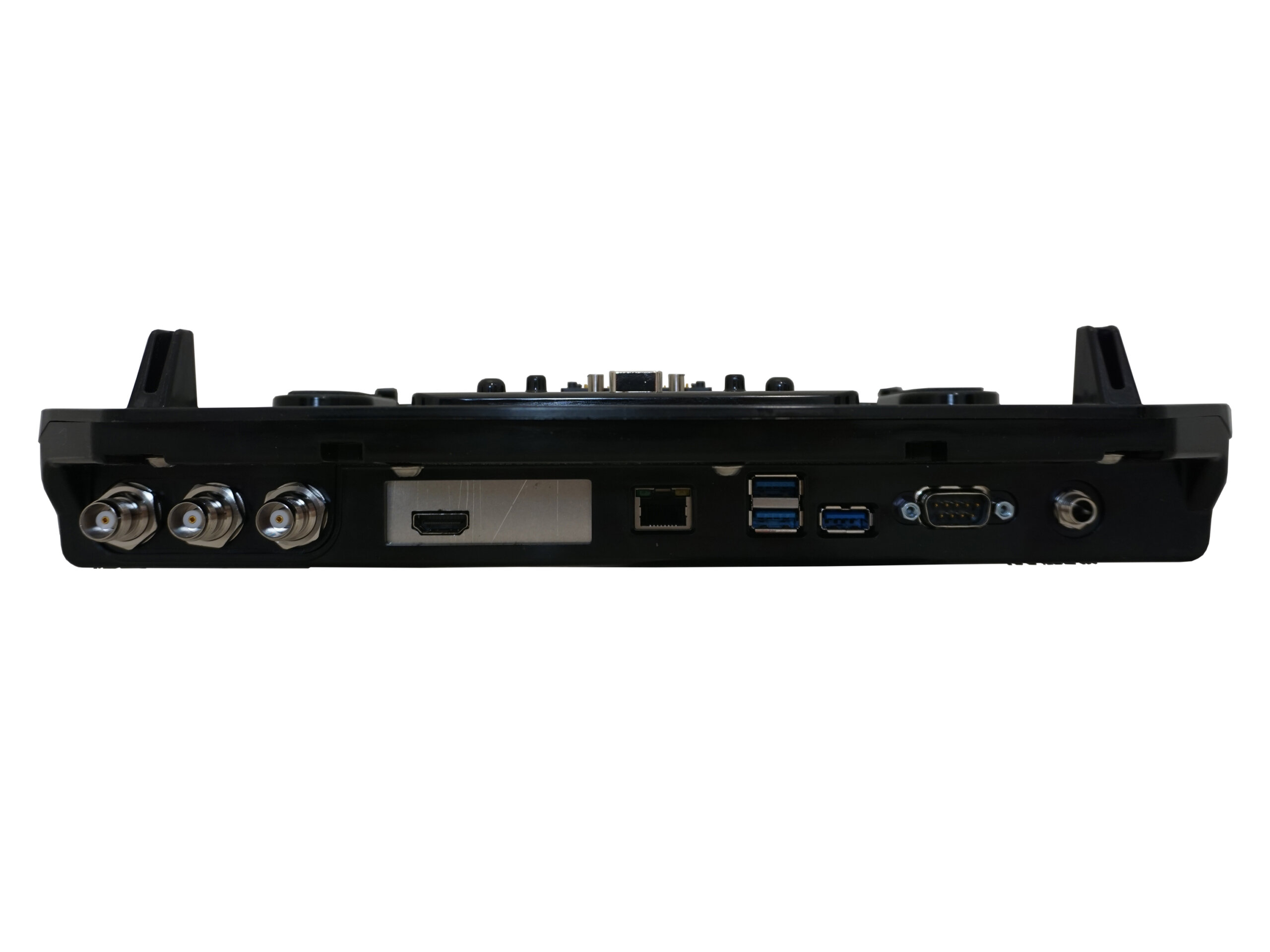

Connectivity includes:(1) RJ45 Ethernet, (3) USB 3.2 Type A, (1) USB-C 3.2 (Front Facing), (1) Serial - 5V powered, (1) HDMI , (1) 19.5V Switchcraft
Antenna:Triple pass-through connection (TNC)
Dimensions:Height 2.73” (69.3mm), Width 12.39” (314.7mm); Depth 10.59” (269mm)
Product Weight: Dock: 3.30 lbs. (1.50 kg); Mounting Bracket: 1.42 lbs. (0.64 kg)
Gross weight:5.5 lbs

Resources

Owner's Manual (PDF)
Owner's Manual (PDF)
Download share
DS-DELL-430 Series Sales Sheet - Public Safety
DS-DELL-430 Series Sales Sheet - Public Safety
Download share
DS-DELL-430 Series Sales Sheet - Work Truck
DS-DELL-430 Series Sales Sheet - Work Truck
Download share
Dell Brochure
Dell Brochure
Download share
Dell Speeds & Feeds
Dell Speeds & Feeds
Download share
Dell Speeds & Feeds - French
Dell Speeds & Feeds - French
Download share
Dell Speeds & Feeds - German
Dell Speeds & Feeds - German
Download share
Dell Speeds & Feeds - Spanish
Dell Speeds & Feeds - Spanish
Download share

Application Gallery

product galleryproduct galleryproduct galleryproduct galleryproduct galleryproduct gallery

Compatibility

Dell Rugged Notebooks Pro Rugged 14
Dell Rugged Notebooks Pro Rugged 14", Pro Rugged 13", 5430, 7330, 5420, 5424, 7424, 5414, 7214, 5404, 7204
