Features

  • Supports Dell's 12” Latitude 7230 Rugged Extreme Tablet in Warehouse & Distribution, Energy & Utilities, Public Safety, and other demanding environments
  • Advanced port replication includes video capability as well as standard options to support mission-critical peripherals

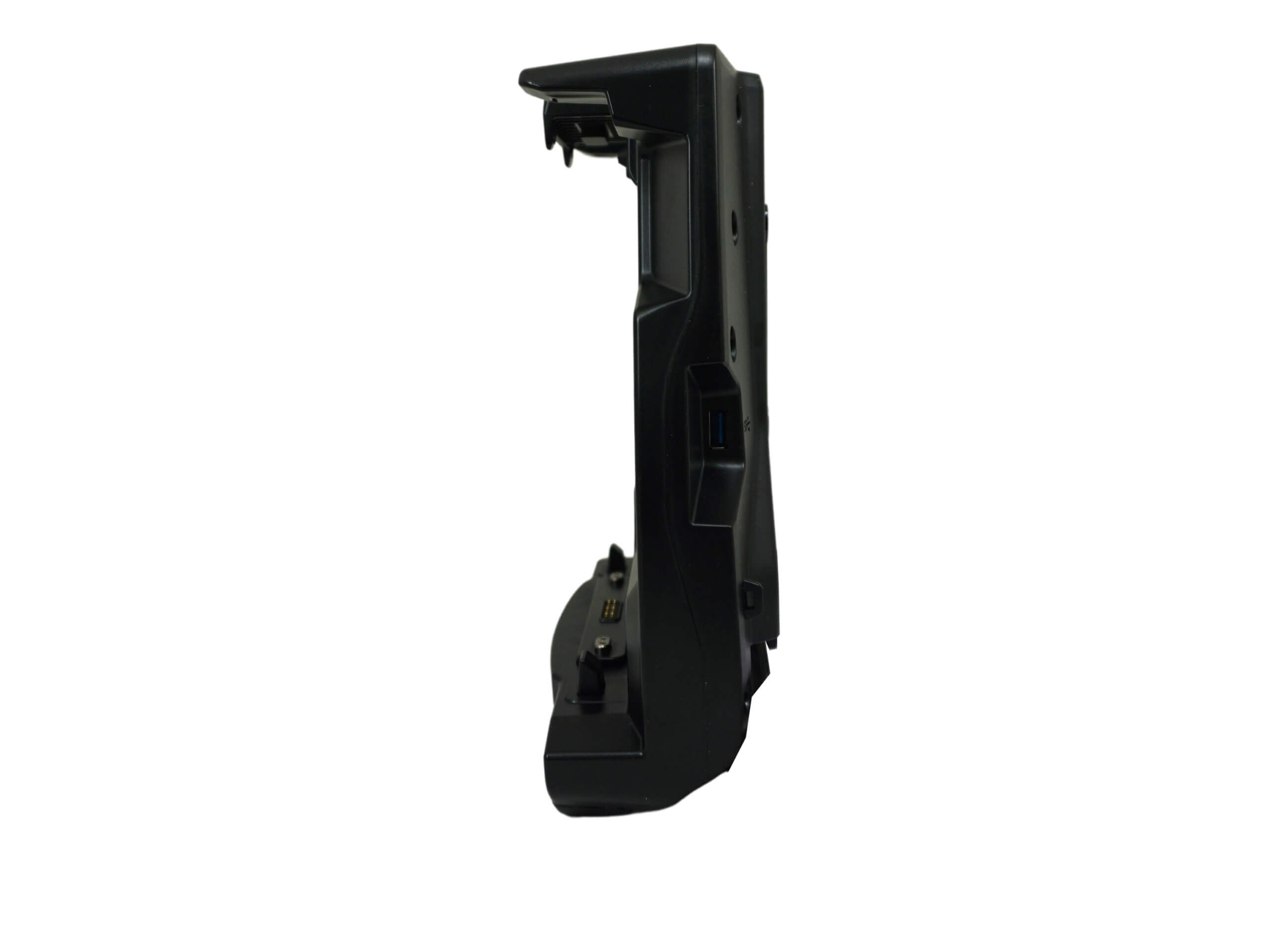

  • Side-mounted USB3.0 port
  • LED power indicator
  • Quad Pass-Through Antenna Connection to support WiFi, GPS and 4G/5G cellular signals
  • One-handed docking & undocking

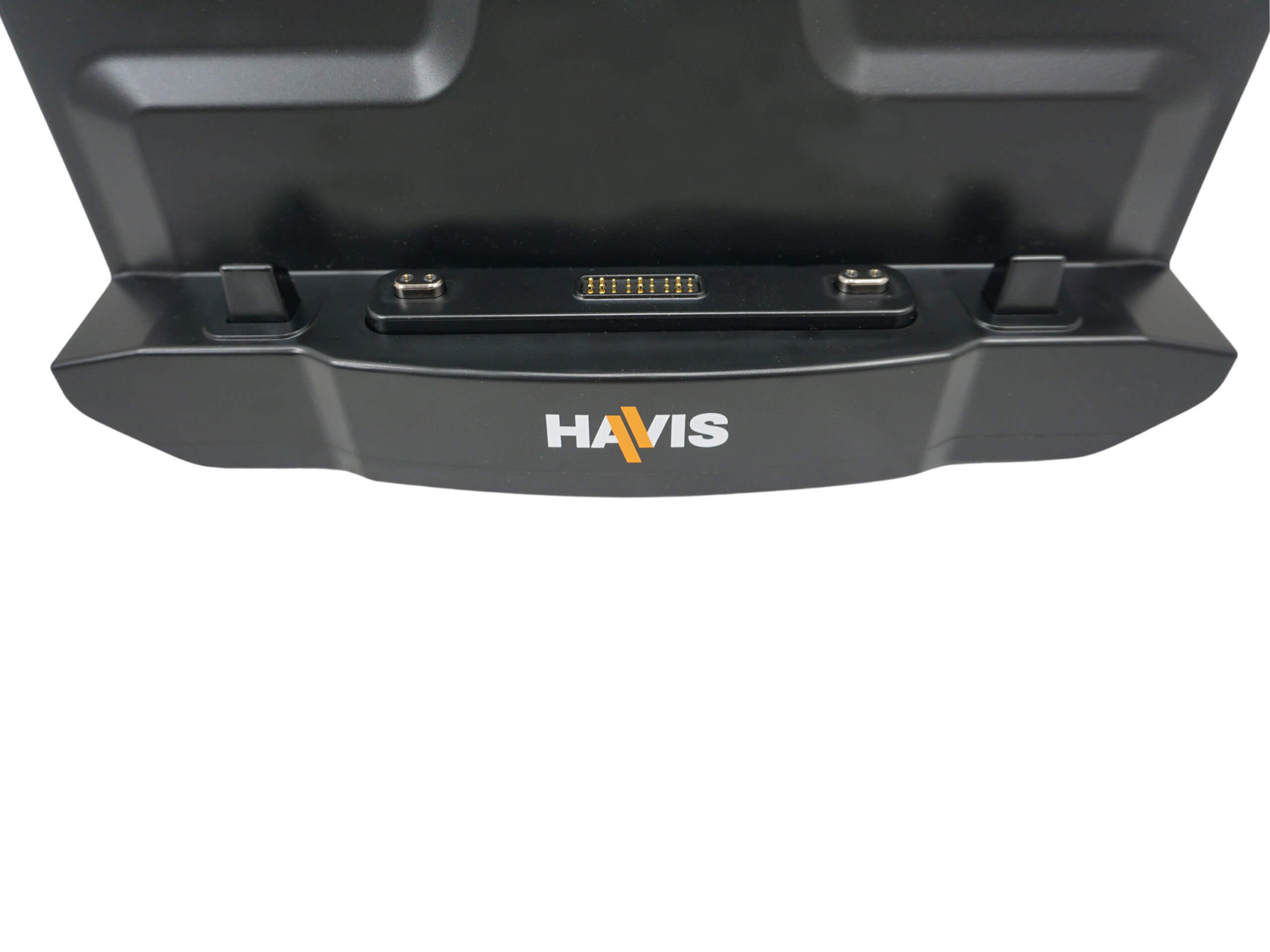

  • Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
  • Internal, non-isolated power supply (9-36V)
  • Provides access to all buttons, ports, and bar code scanner when tablet is docked
  • Compatible with Dell 7230 tablet accessories including hard and soft handles, magnetic mount, rotating hand strap and shoulder strap
  • Compact & lightweight
  • Integrated cable management system

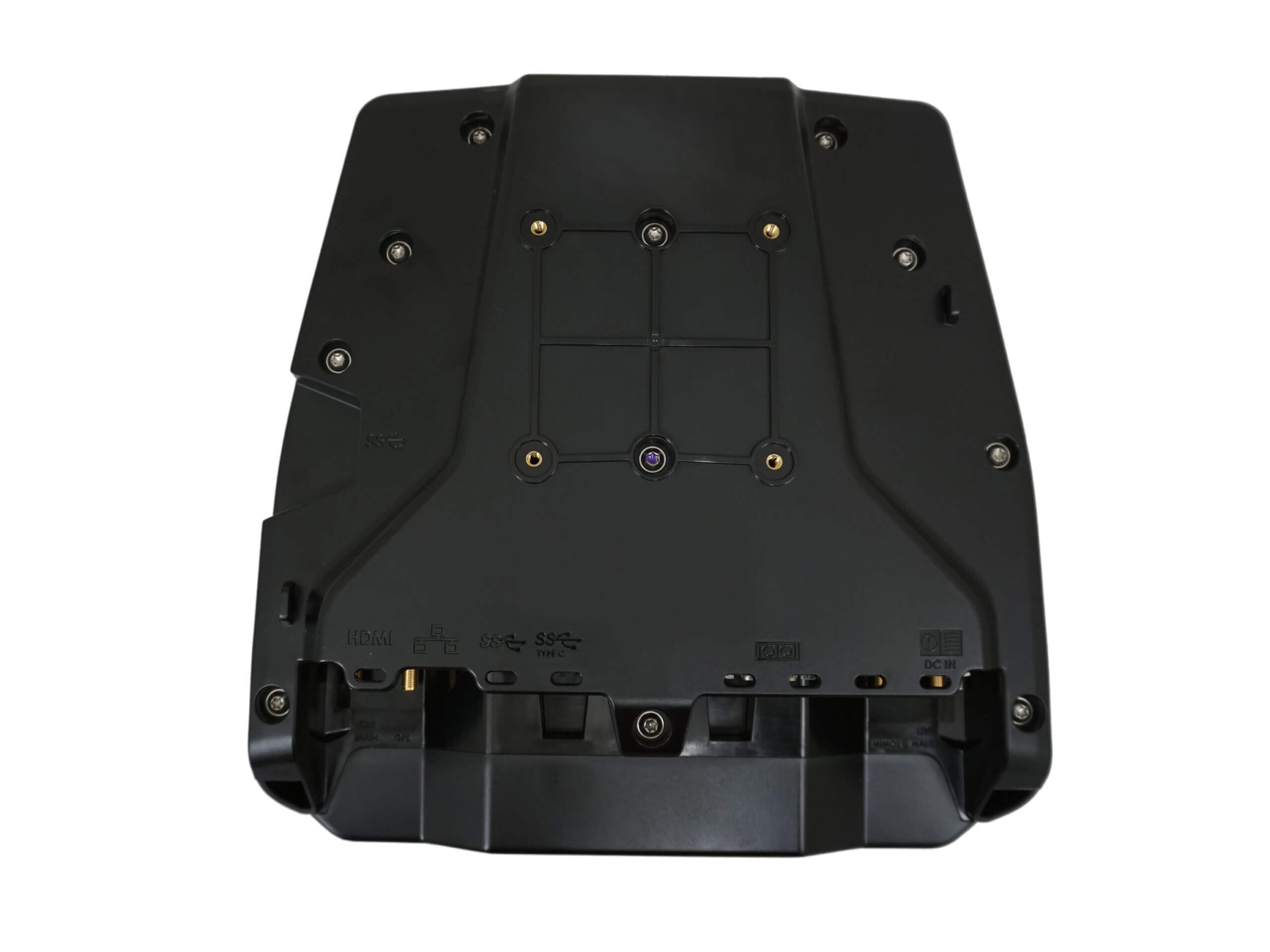

  • Integrated VESA 75 mounting pattern
  • Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
  • Rounded edges and corners for comfort and safety
  • Keyed lock for added security
  • Made in USA

Specifications

PRODUCT SPECIFICATIONS:
Compatible computer:Dell 12” Latitude 7230 Rugged Extreme Tablet
Certifications: Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -29° C to 63° C (-20° F to 145° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F)

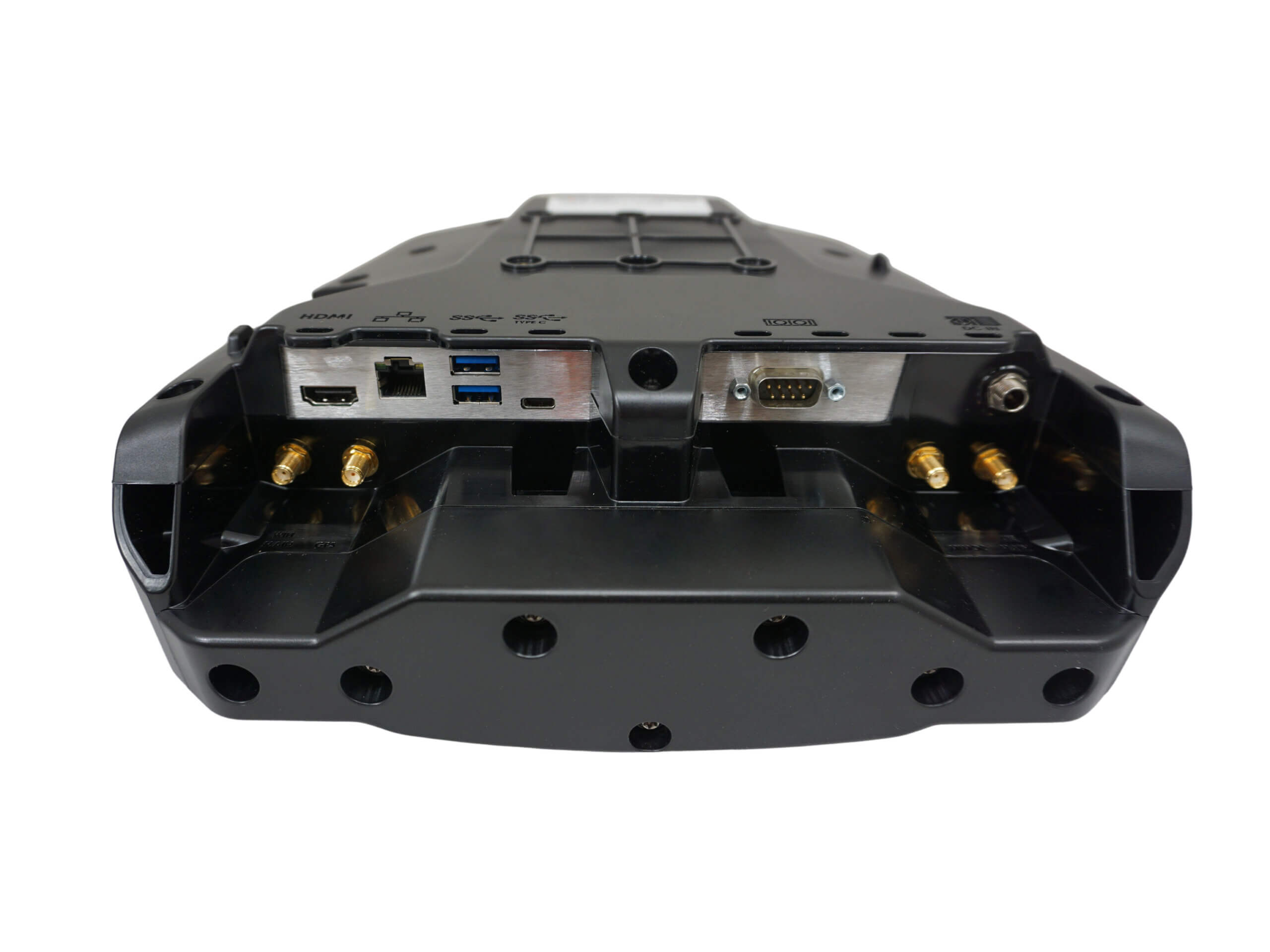

Port Replication:(1) RJ45 Ethernet, (3) USB3.0 Type A, (1) USB-C, (1) DB9 Serial - 5V powered, (1) HDMI, (1) DC In port,
Antenna:Quad RF Pass-Thru Connection (SMA)
Dimensions:Height 10.2” (259mm) latched, 10.7” (272mm) unlatched; Width 10” (254mm); Depth 3.5” (89mm)
Product weight:2.75 lbs (1.25kg)
Gross weight:4 lbs
