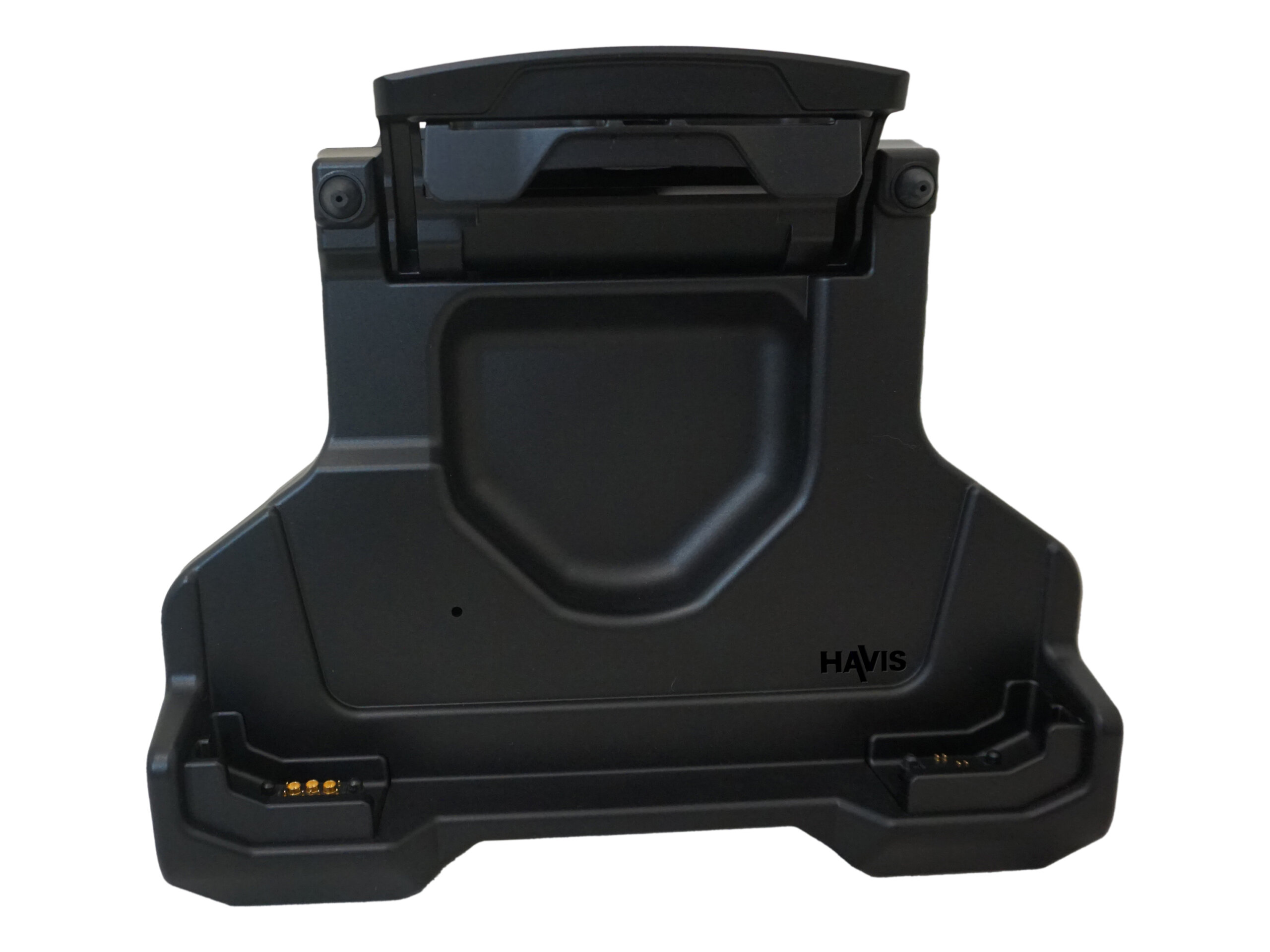

Features

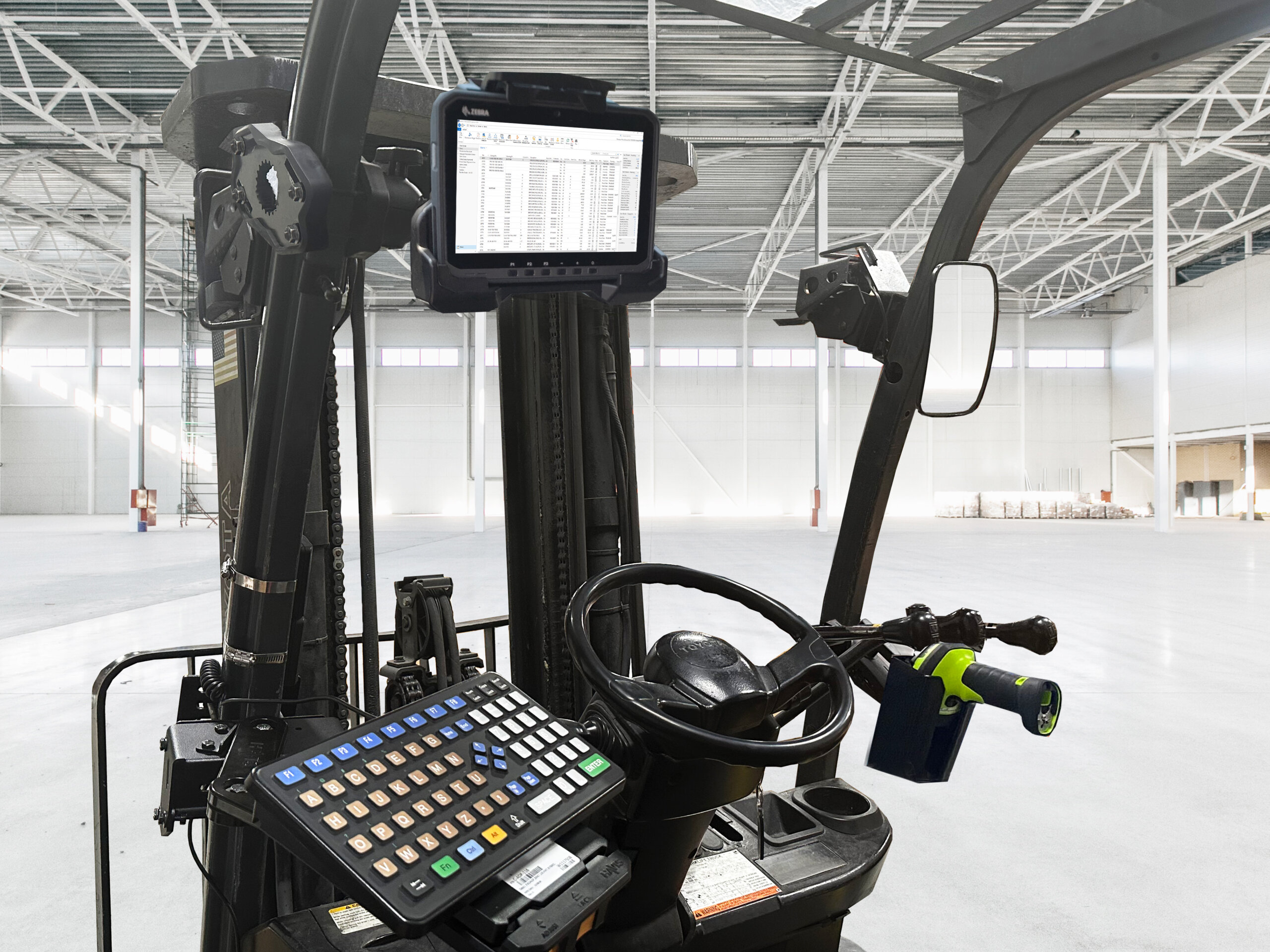

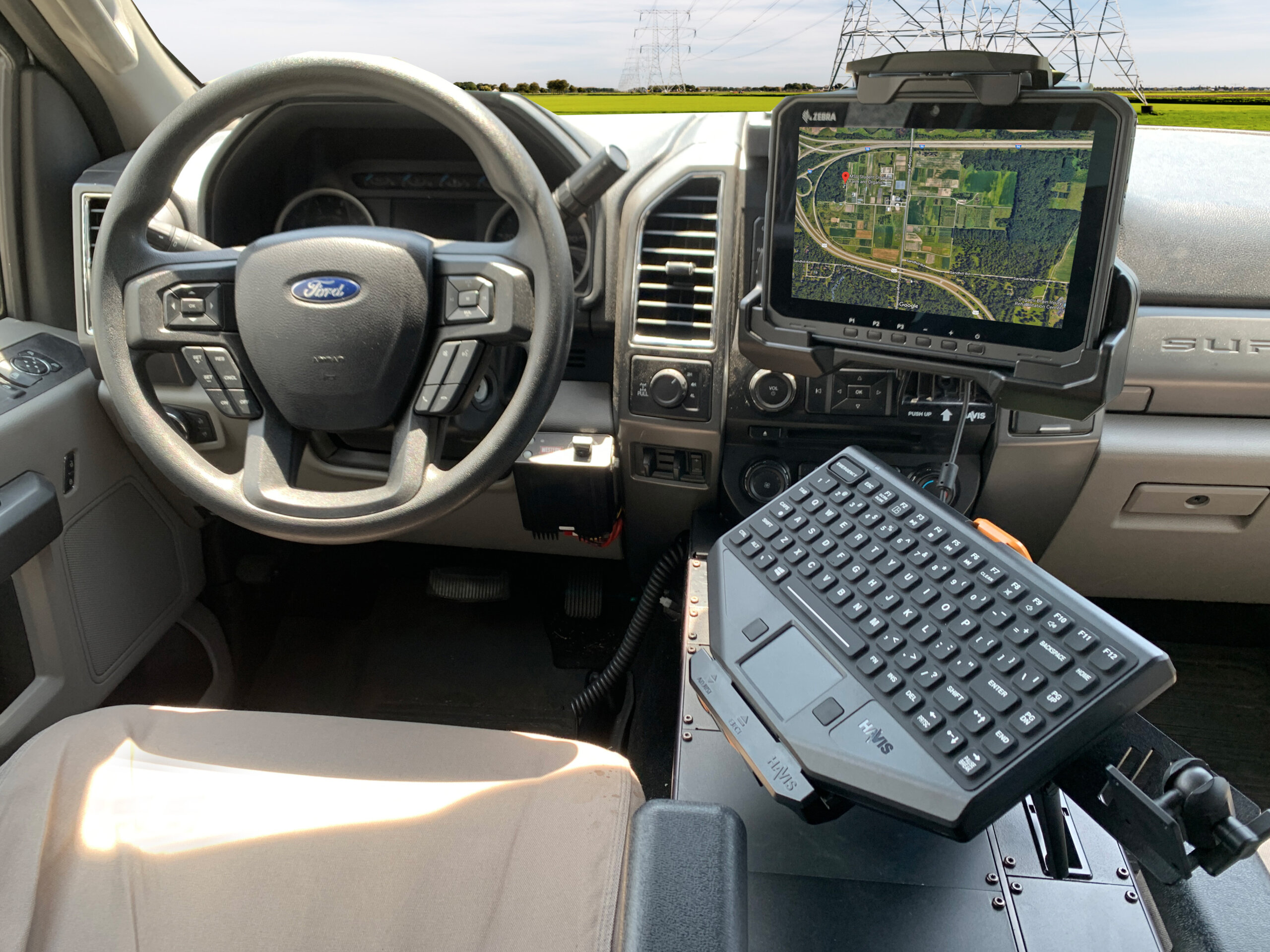

  • Supports Zebra's ET60 & ET65 Tablets in Public Sector, Material Handling, Utility Services, Waste Management and other demanding environments

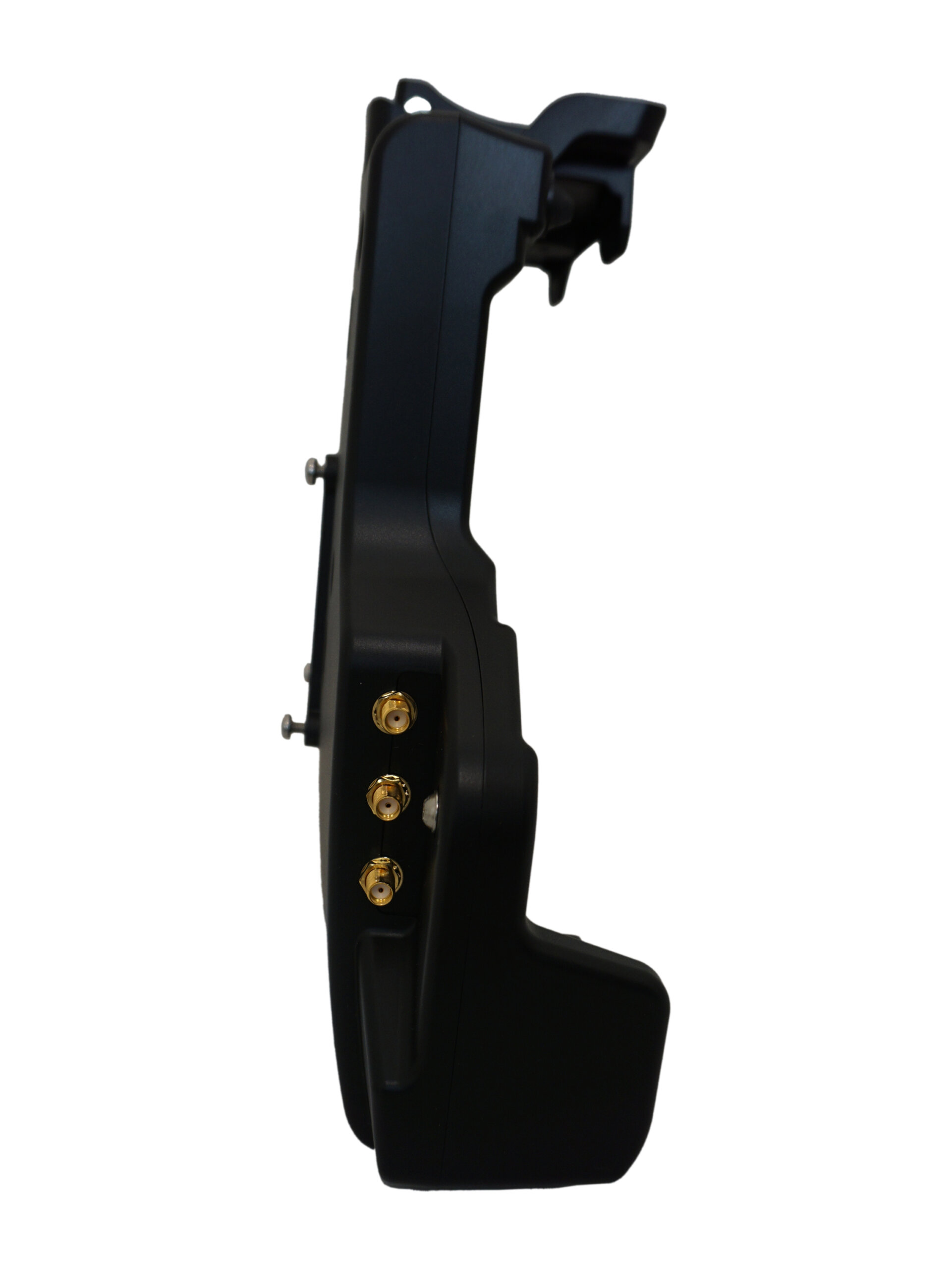

  • Advanced port replication includes video capability as well as standard options to support mission-critical peripherals
  • LED power indicator

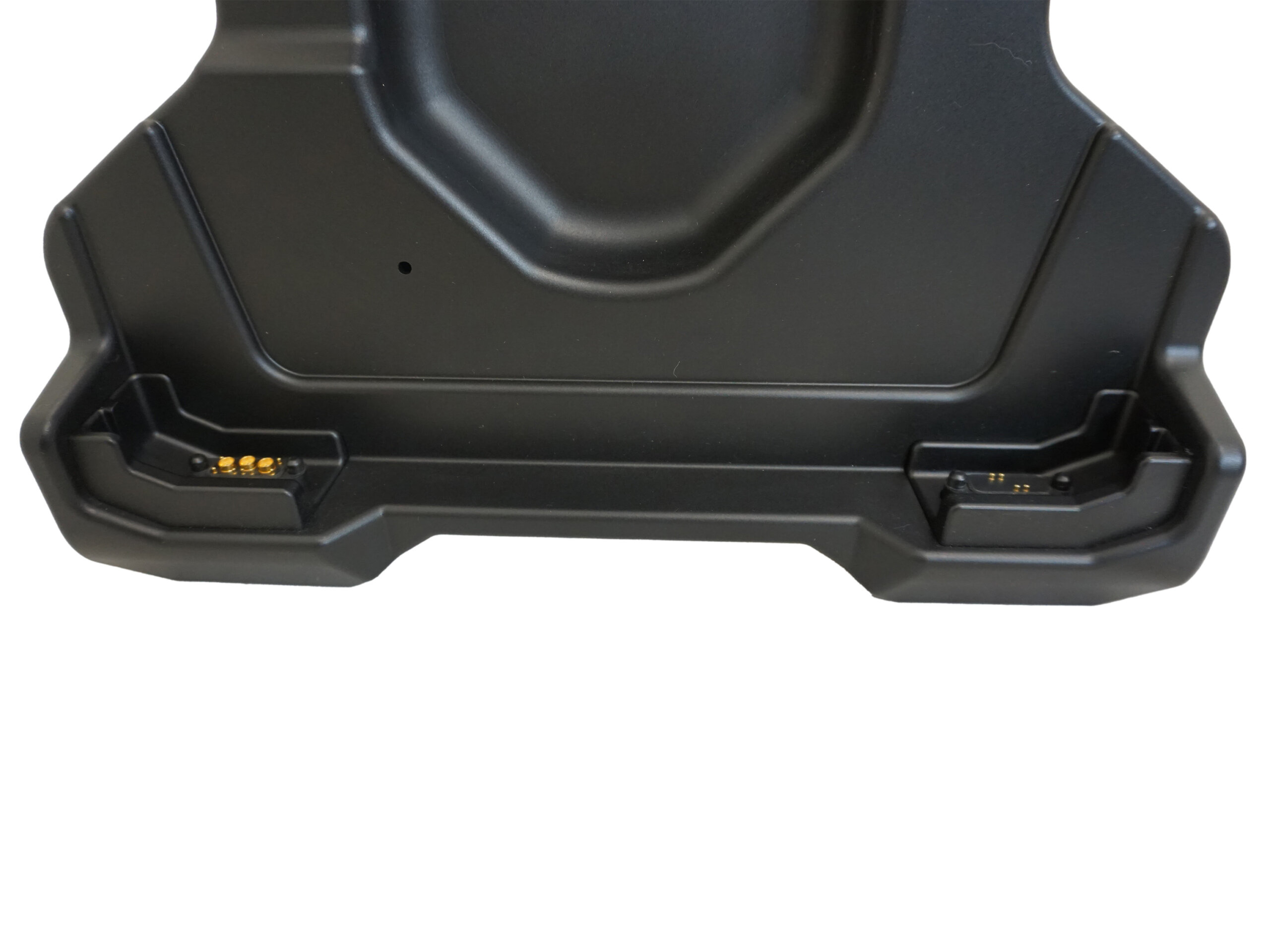

  • Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
  • One-handed docking & undocking
  • Requires a Havis-approved external power supply
  • Provides access to critical buttons, ports, and bar code scanner when tablet is docked
  • Compact & lightweight
  • Compatible with the Zebra Extended Battery, Kickstand with Hand Strap, Carry Handle, and CAC Reader
  • Integrated cable management system

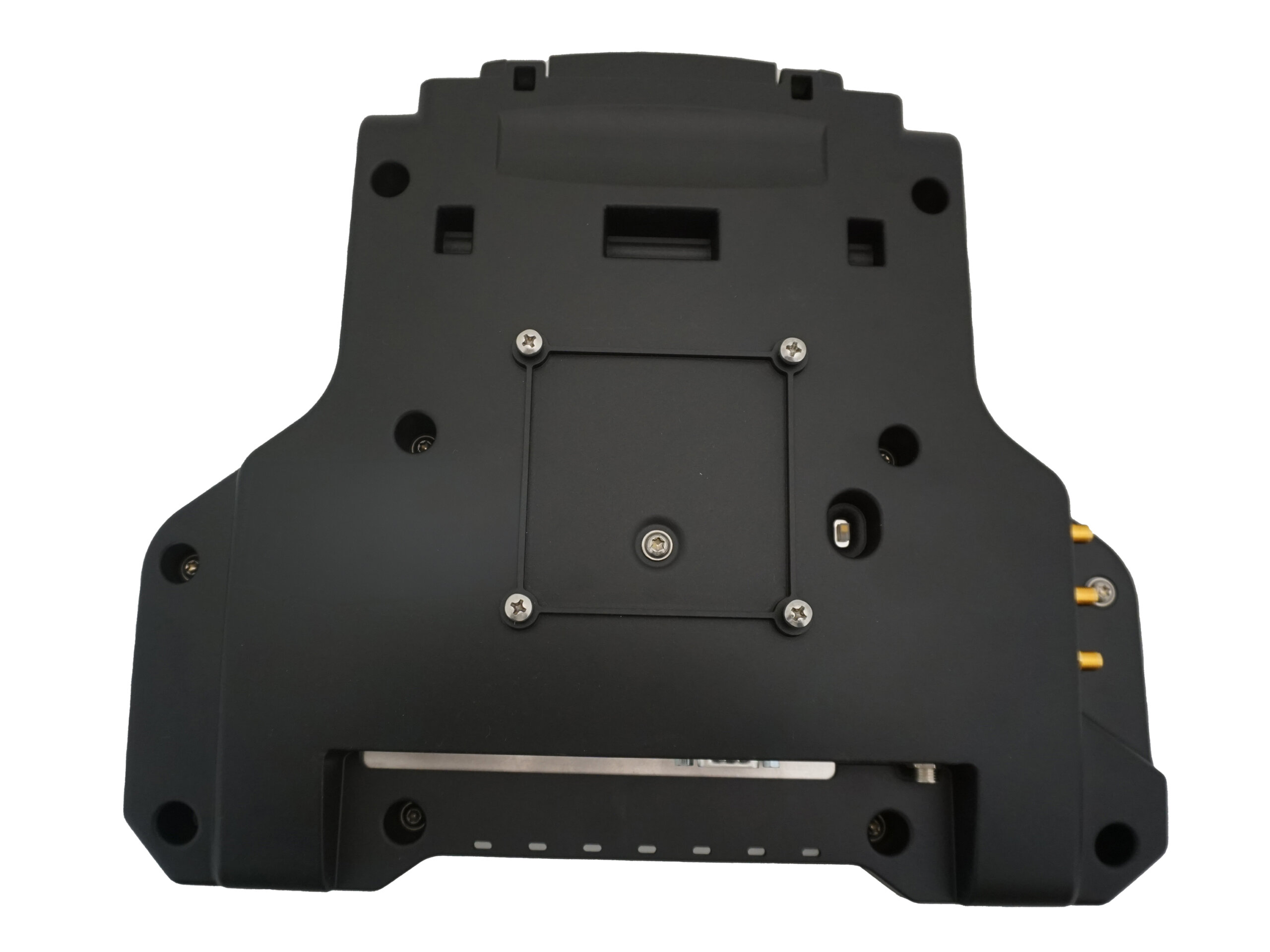

  • Integrated VESA 75 mounting pattern
  • Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
  • Rounded edges and corners for comfort and safety

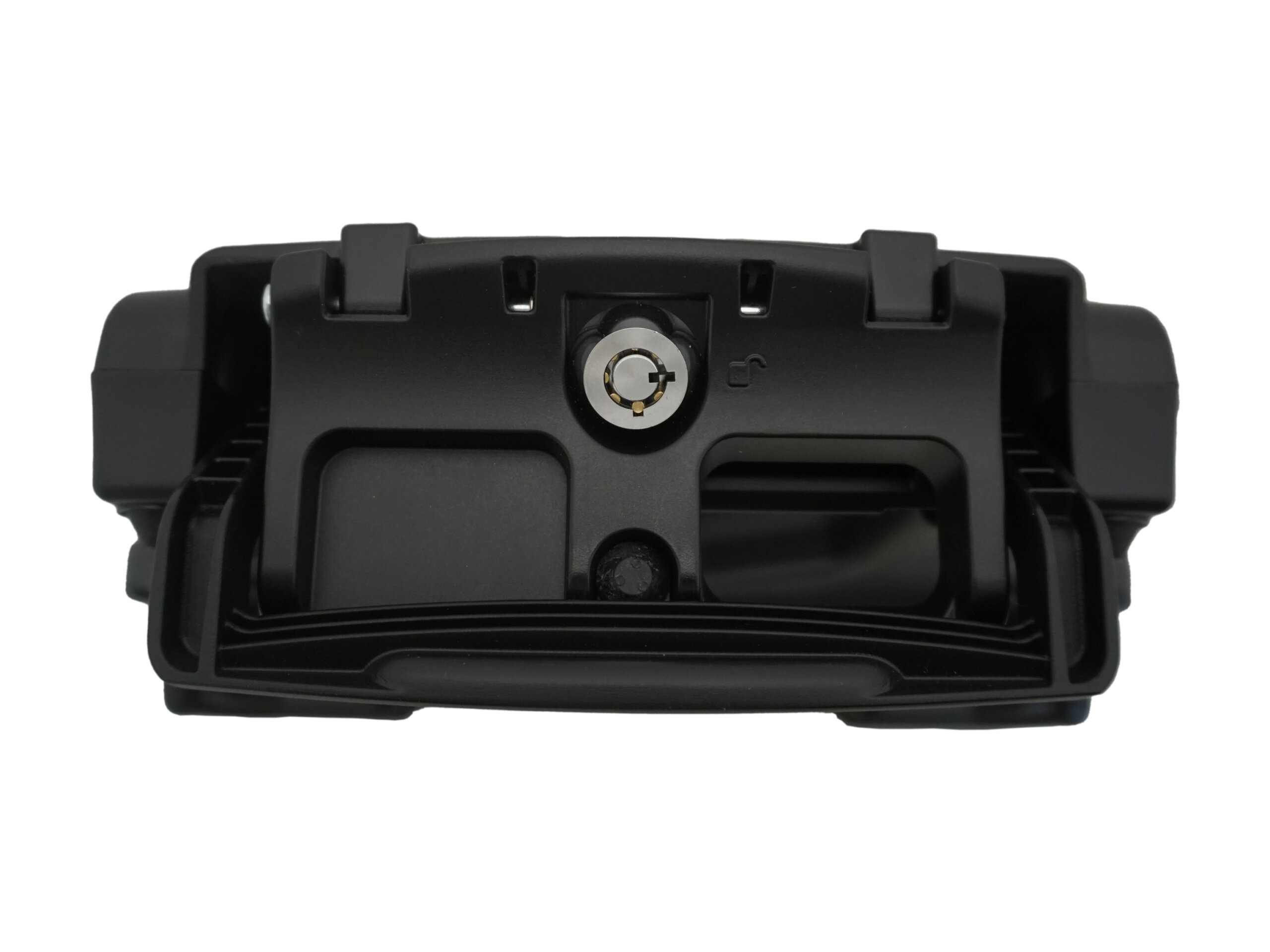

  • Keyed lock for added security
  • Made in USA

Specifications

PRODUCT SPECIFICATIONS:

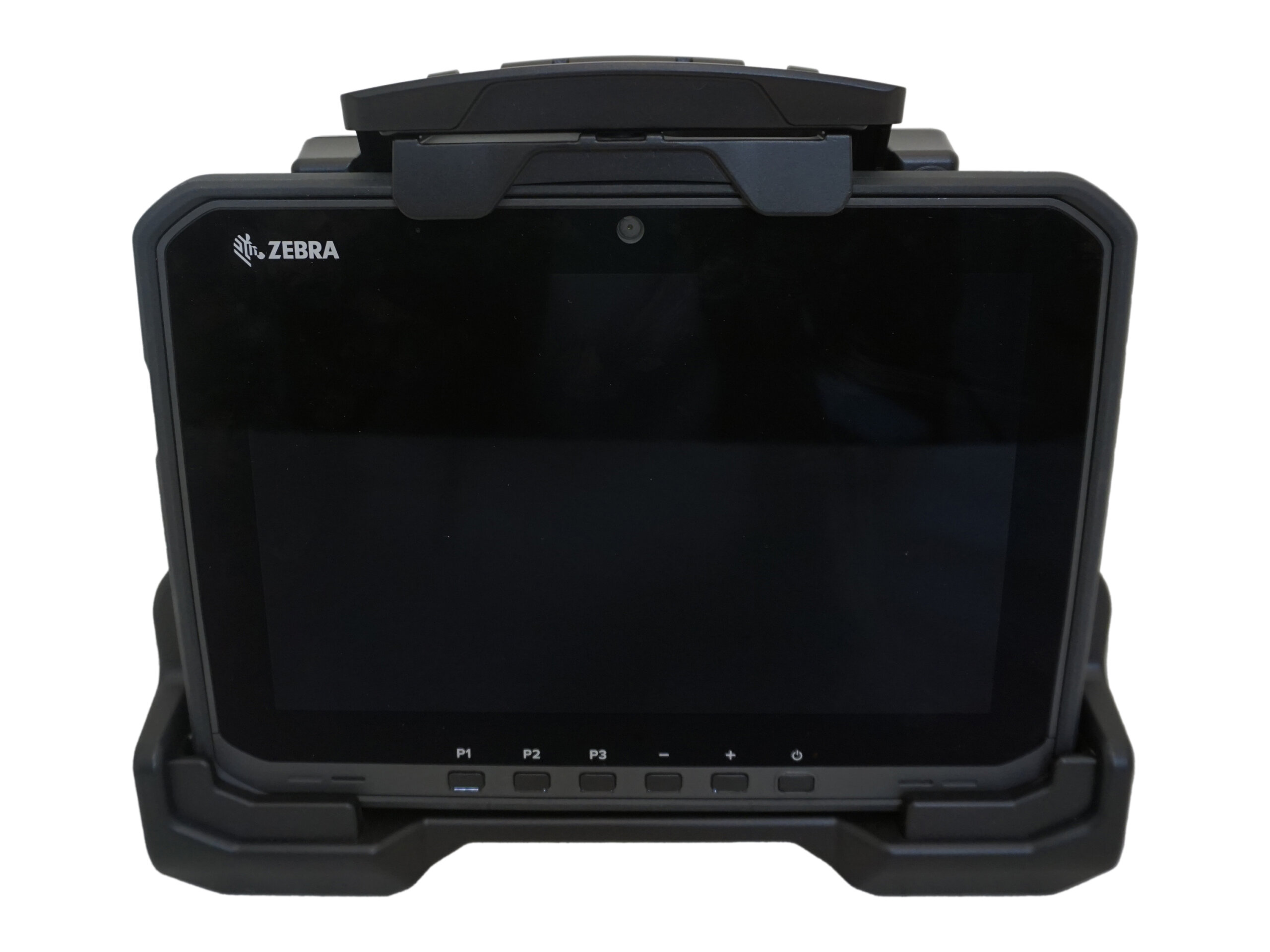

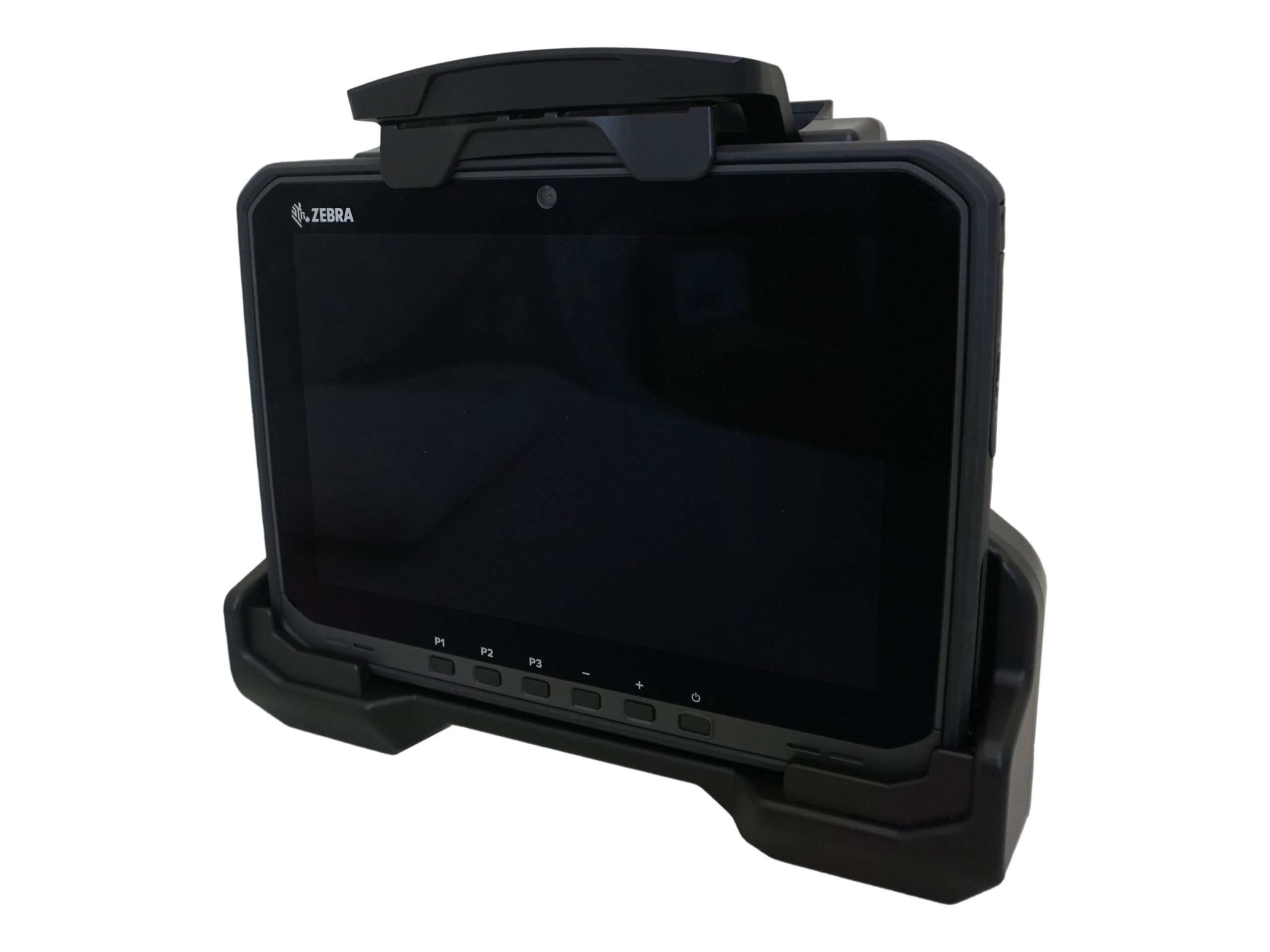

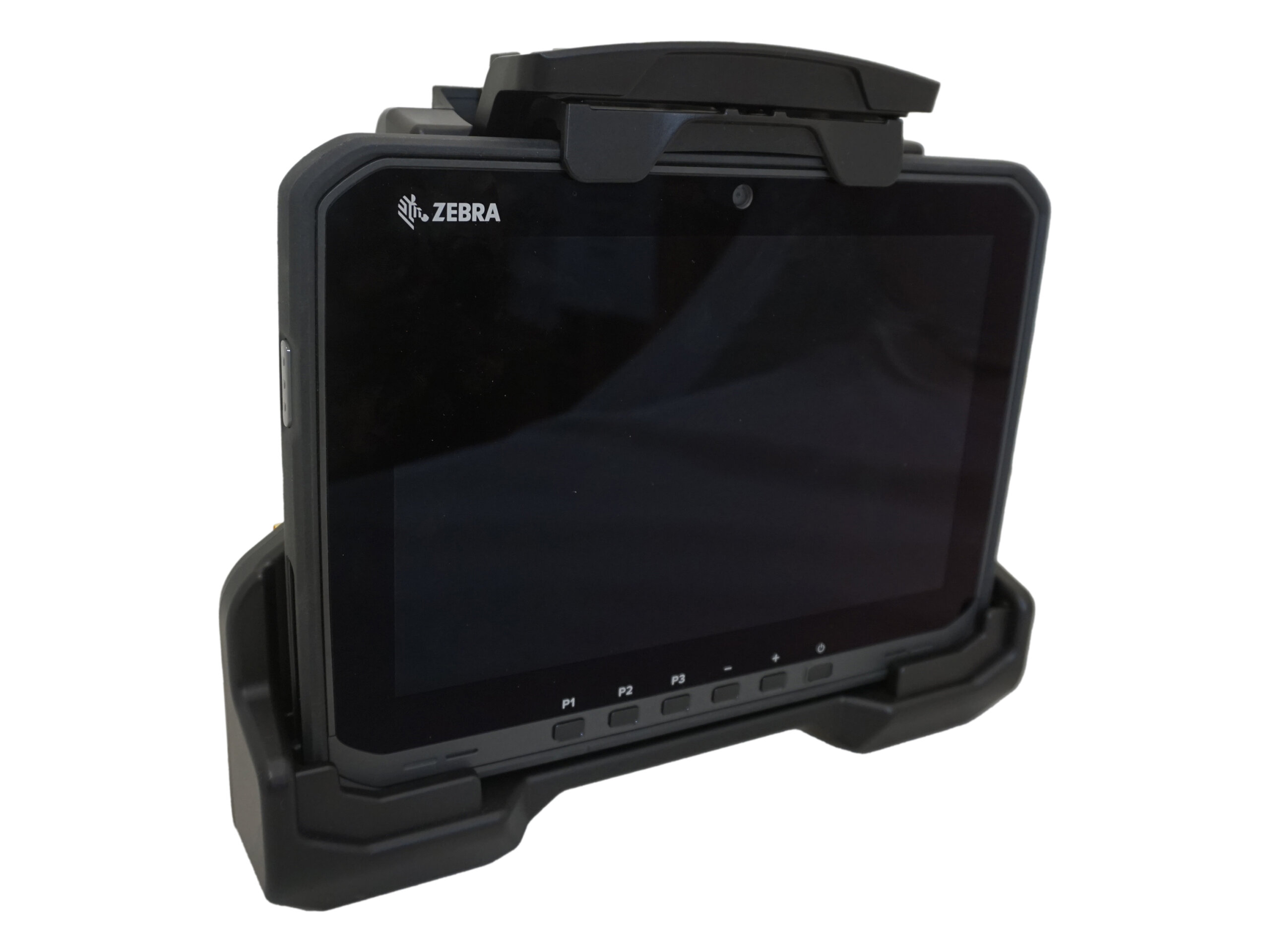

Compatible Devices:Zebra ET60 and ET65 Tablets
Certifications:Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -20° C to 60° C (-4° F to 140° F); Hot/Cold storage -30° C to 70° C (-22° F to 158° F)
Port Replication:Advanced: (2) USB 2.0 (1) RJ45 Ethernet (1) Powered Serial Port (5V)
Approved power supplies: LPS-189, LPS-190, LPS-191
Dimensions:11.1” (282 mm) H - Unlatched; 10.24"(260 mm) H - Latched 12.0” (304.8 mm) W 3.30” (83.8 mm) D
Product weight: 2.2 lbs. (1.0kg)
Gross weight:2.5 lbs

Resources

DS-ZEB-500 ET6X Series Sales Sheet - Public Safety
DS-ZEB-500 ET6X Series Sales Sheet - Public Safety
Download share
DS-ZEB-500 ET6X Series Sales Sheet - Material Handling
DS-ZEB-500 ET6X Series Sales Sheet - Material Handling
Download share
DS-ZEB-500 ET6X Series Sales Sheet - Work Truck
DS-ZEB-500 ET6X Series Sales Sheet - Work Truck
Download share

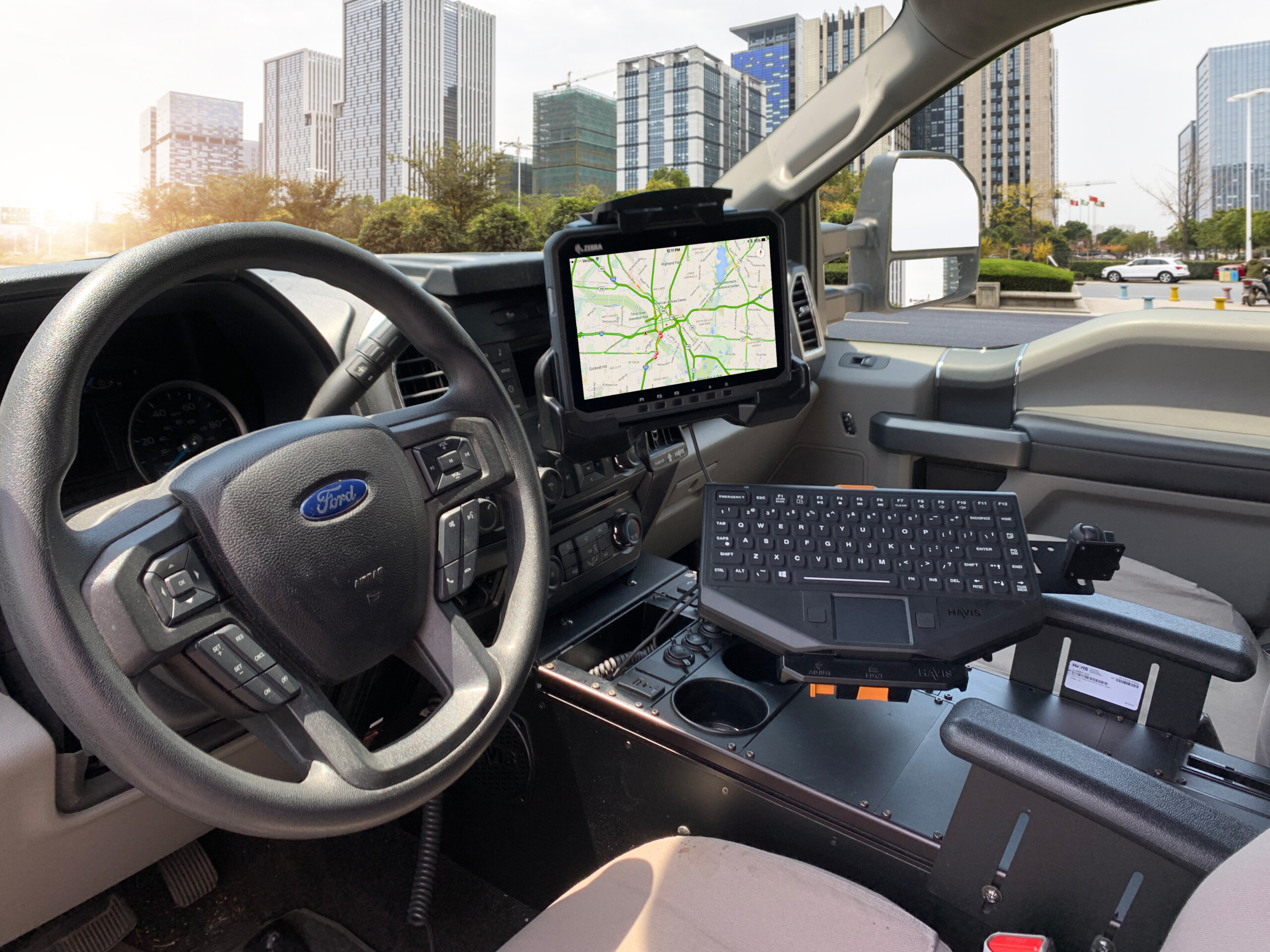

Application Gallery

product galleryproduct galleryproduct galleryproduct galleryproduct galleryproduct gallery

Compatibility

Zebra ET60 and ET65 Tablets
