Features

  • Supports Zebra's ET80 & ET85 Tablets in Public Sector, Material Handling, Utility Services, Waste Management and other demanding environments
  • Includes standard port replication to connect multiple mission-critical peripherals

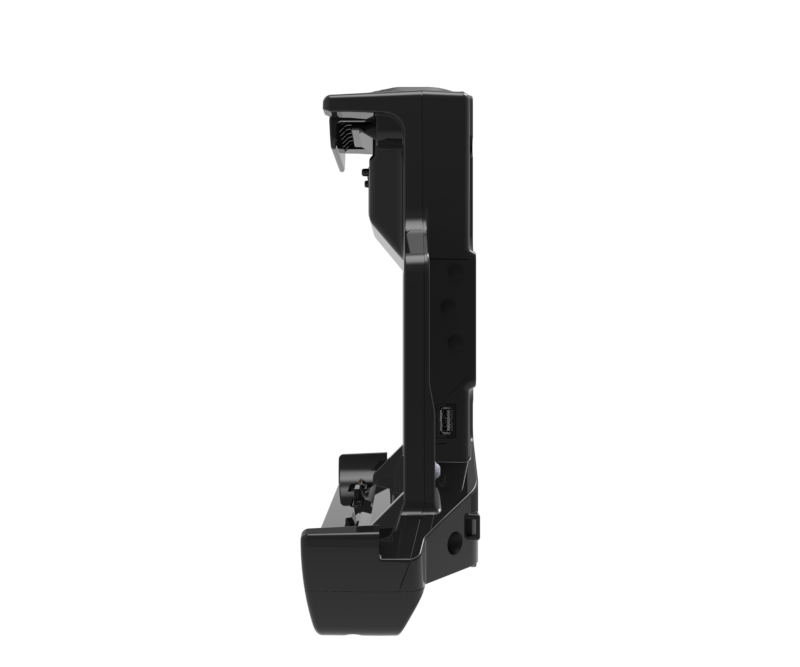

  • Side-mounted USB3.0 port
  • LED power indicator
  • Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
  • One-handed docking & undocking
  • Requires a Havis-approved external power supply
  • Provides access to critical buttons, ports, and bar code scanner when tablet is docked
  • Compact & lightweight
  • Compatible with the Zebra Stylus Tether, Stylus MPP 2.0, Handle with Stylus Holder, and Shoulder Strap
  • Integrated cable management system
  • Integrated VESA 75 mounting pattern
  • Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
  • Rounded edges and corners for comfort and safety
  • Keyed lock for added security
  • Made in USA

Specifications

PRODUCT SPECIFICATIONS:
Compatible Devices:Zebra ET80 and ET85 Tablets
Certifications:Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -20° C to 60° C (-4° F to 140° F); Hot/Cold storage -30° C to 70° C (-22° F to 158° F)

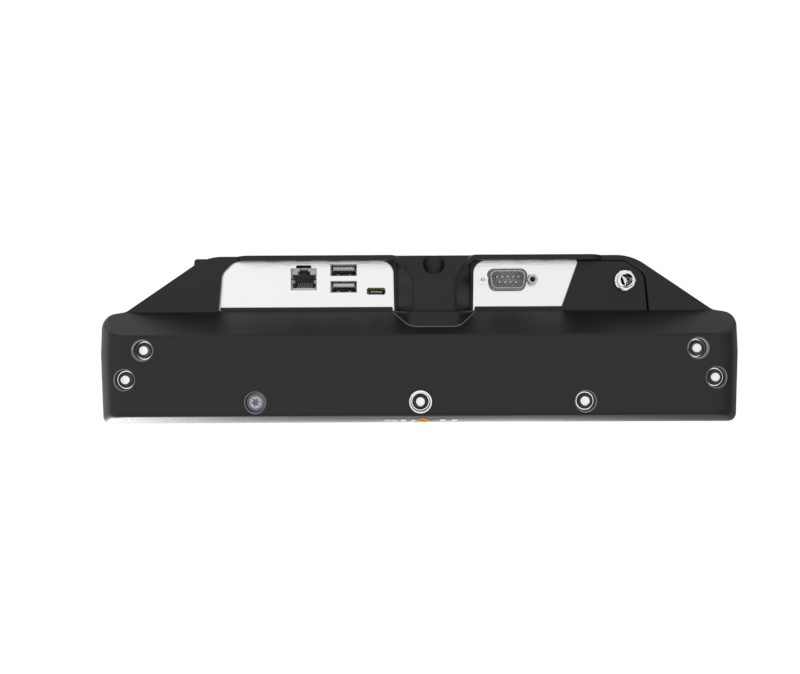

Port Replication:Standard: (3) USB 3.1 (1) USB-C (1) RJ45 Ethernet (1) Powered Serial Port
Approved power supplies: LPS-189, LPS-190, LPS-191
Dimensions:Unlatched: 11.94" (304 mm) H 13.0” (330 mm) W 3.42” (87 mm) D 11.25” (286 mm) H Latched
Product weight: 2.8 lbs (1.27kg)
Gross weight:3.25 lbs

Application Gallery

product galleryproduct galleryproduct galleryproduct galleryproduct galleryproduct galleryproduct galleryproduct gallery

Resources

Owner's Manual
Owner's Manual
Download share
DS-ZEB-400 Series Sales Sheet - Public Safety
DS-ZEB-400 Series Sales Sheet - Public Safety
Download share
DS-ZEB-400 Series Sales Sheet - Work Truck
DS-ZEB-400 Series Sales Sheet - Work Truck
Download share
DS-ZEB-400 Series Sales Sheet - Material Handling
DS-ZEB-400 Series Sales Sheet - Material Handling
Download share

Compatibility

Zebra ET80 and ET85 Tablets
Zebra ET80 and ET85 Tablets
