Features

  • Isolated 100 watt power supply used for 12-32 VDC input forklifts with DS-DELL-900/1100 & PKG-DELL-1000/1200 Series docking stations
  • Compatible Havis docking stations: DS-DELL-900/1100 & PKG-DELL-1000/1200 Series
  • Compatible computers: Can only be connected to compatible Havis docking stations - cannot be connected directly to tablet

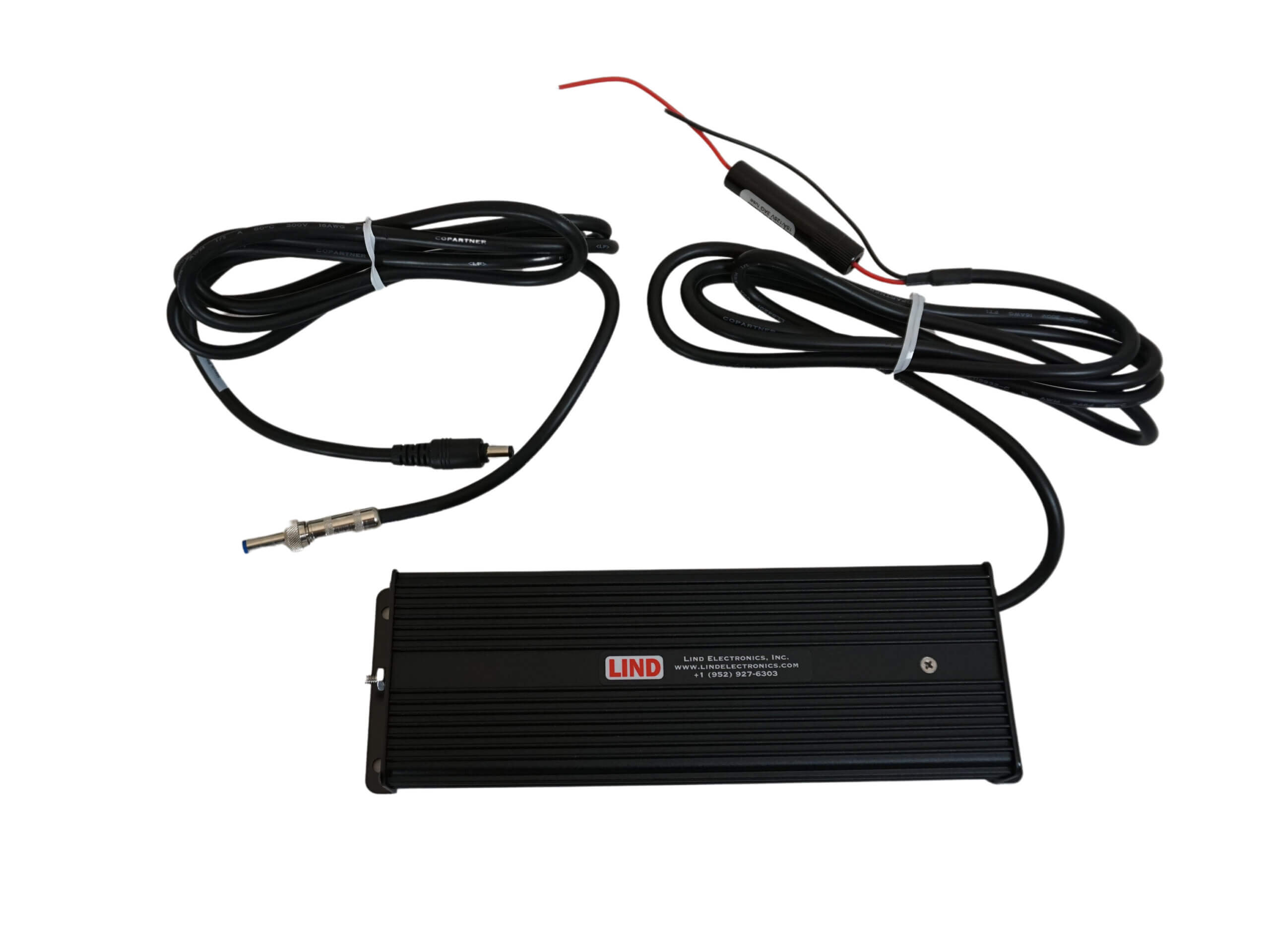

  • Power supply kit includes: 100W LIND power supply with attached input cable, 72" output power cable with straight threaded Switchcraft connector, and Mounting hardware
  • Integrated input cable with bare wire leads provides flexible connection to ChargeGuard or other appropriate power source
  • Removable output cable provides correct connector for compatible Havis docking stations (DS-DELL-900 Series)

Specifications

PRODUCT SPECIFICATIONS:
Watts:100
Input voltage range:12-32VDC
Input cable:72" integrated with bare wire leads
Output cable:72" removable with straight threaded Switchcraft connector
Dimensions:9.25" l (23.5 cm) x 3.0" w (7.7 cm) x 1.12" h (2.9 cm)
Gross weight:5 lbs

Compatibility

DS-DELL-900 Series Docking Stations
DS-DELL-900 Series Docking Stations
Dell 12” Latitude 7230 & 10
Dell 12” Latitude 7230 & 10" Latitude 7030 Rugged Extreme Tablet
