Features

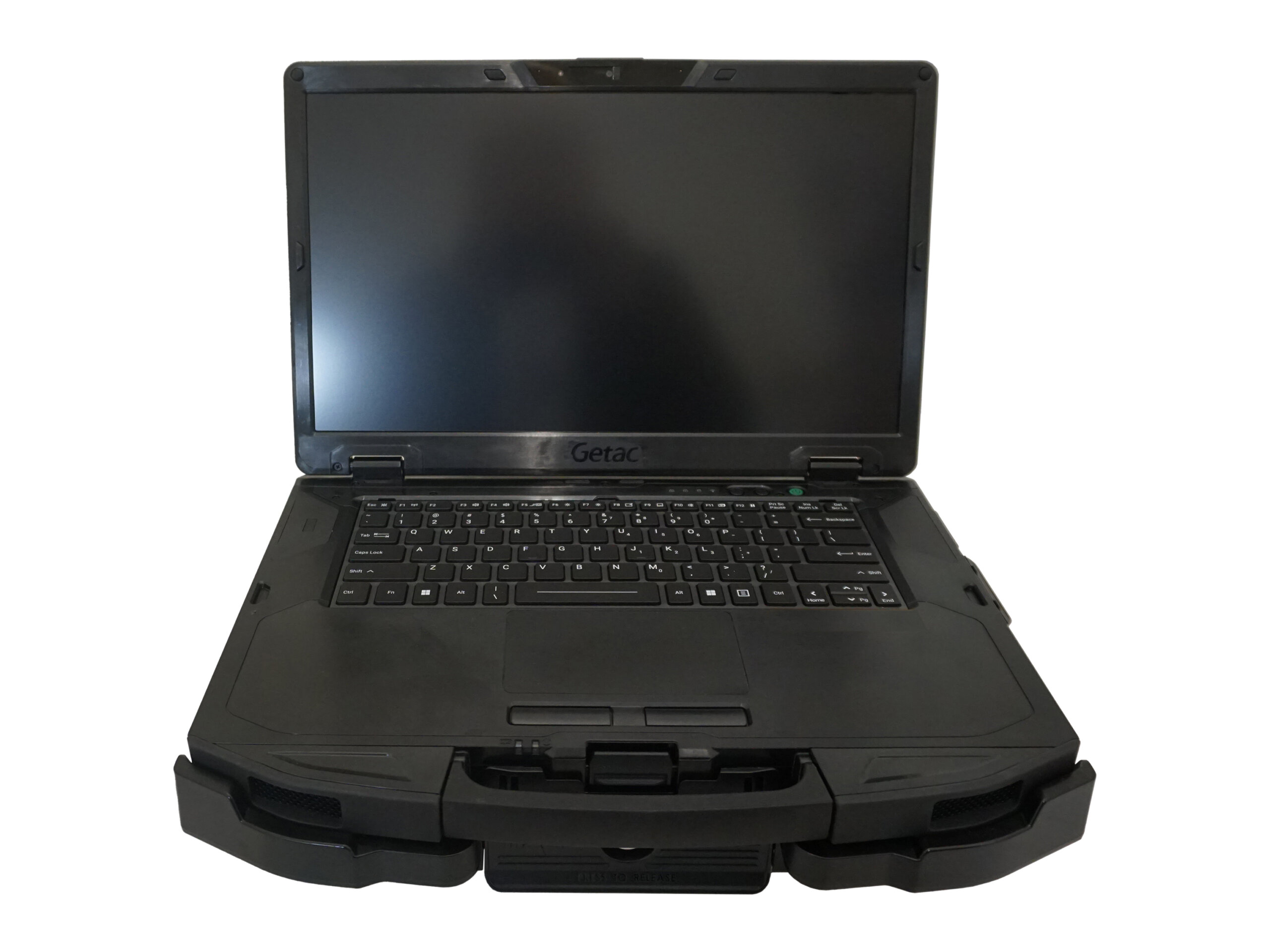

  • Supports Getac's S510 Laptop in Public Sector, Utility Services, and other demanding environments
  • Advanced port replication includes video capability as well as standard options to support mission-critical peripherals
  • Equipped with triple pass-through antenna connections
  • Powered by Getac 120W Vehicle Adapter (LPS-140, sold separately)
  • Includes DS-DA-418 Screen Support
  • Also includes LPS-208 & LPS-211 Accessory Brackets
  • Reinforced mounting bracket
  • Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
  • One-handed docking & undocking
  • Durable, compact & lightweight
  • Integrated cable management system
  • Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
  • Rounded edges and corners for comfort and safety

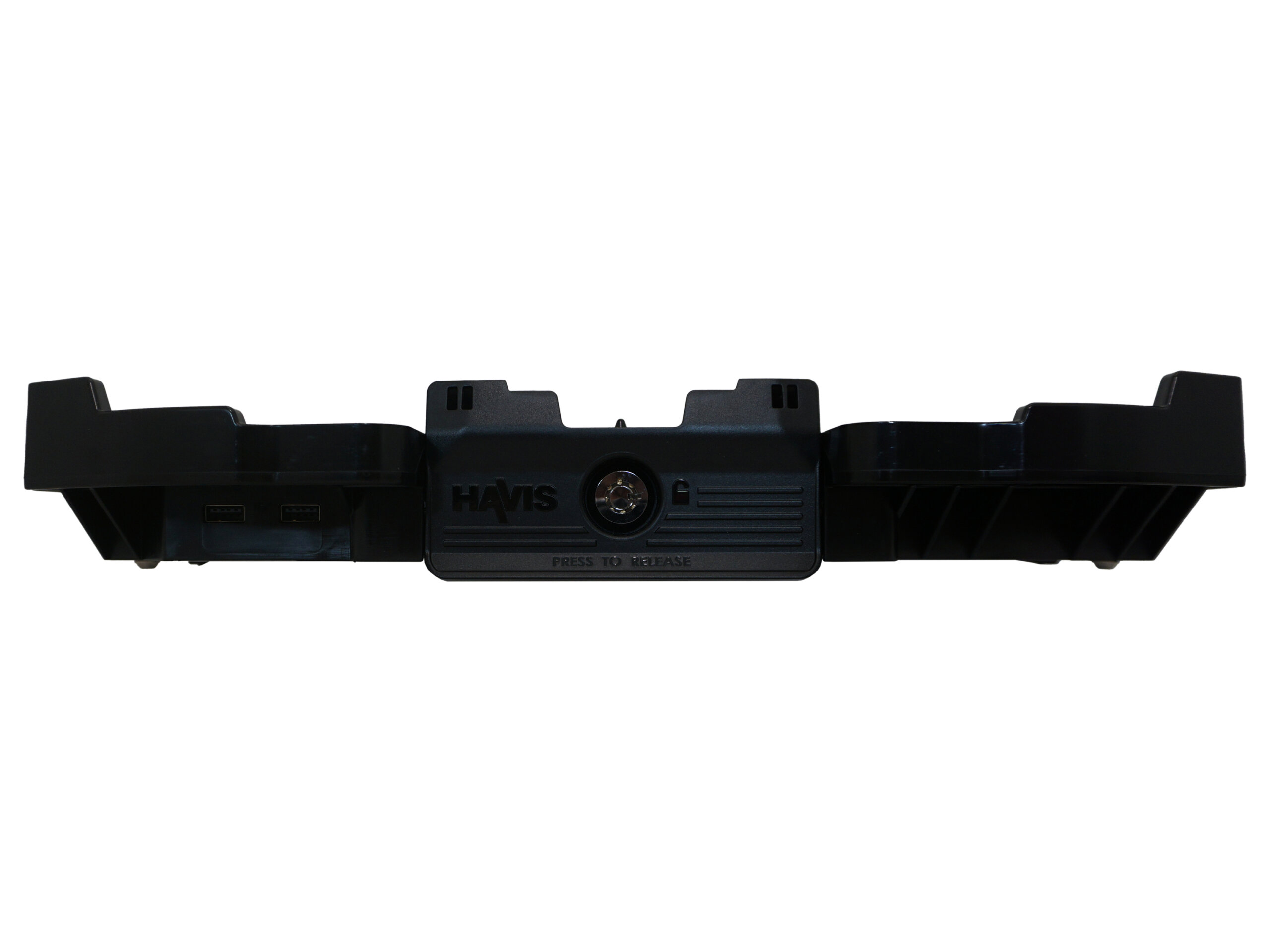

  • Keyed lock for added security
  • Made in USA

Specifications

PRODUCT SPECIFICATIONS:

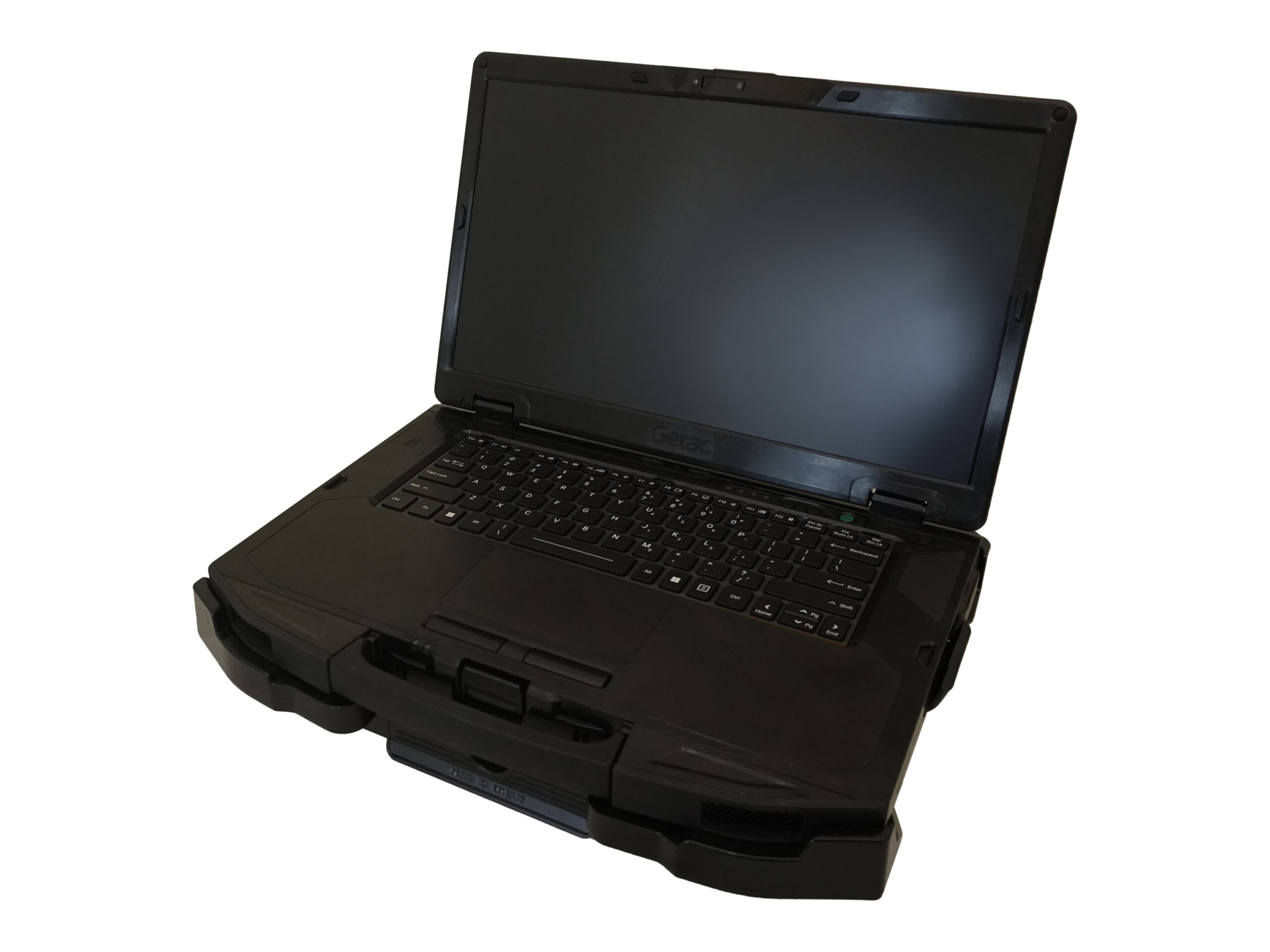

Compatible computer(s):Getac S510 Laptop
Certifications:Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -29°C to 63°C (-20°F to 145°F); Hot/Cold storage -40°C to 85°C (-40°F to 185°F)

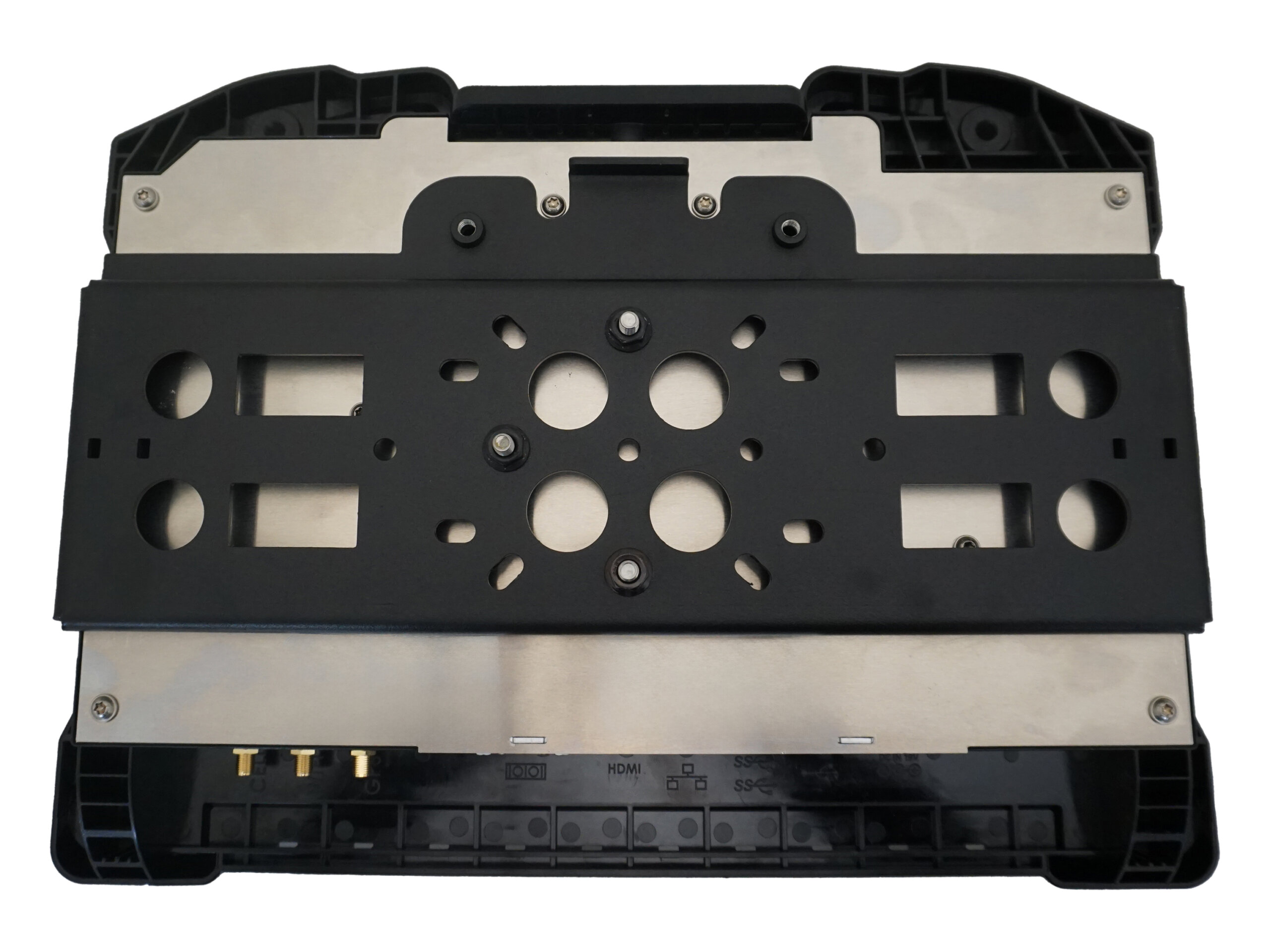

Port Replication:Advanced: (1) HDMI (2) USB 2.0 (Front Facing) (2) USB 3.0 (1) USB-C (1) RJ45 Ethernet (1) Powered Serial Port (5V) Antenna type: (3) SMA
Approved Power Supplies:LPS-140
Dimensions:11.41” (28.98 cm) H x 15.04” (38.20 cm) W x 2.75” (6.99 cm) D
Product Weight:5.7 lbs. (2.59 kg)
Gross weight:7.25 lbs

Resources

Owner's Manual (PDF)
Owner's Manual (PDF)
Download share

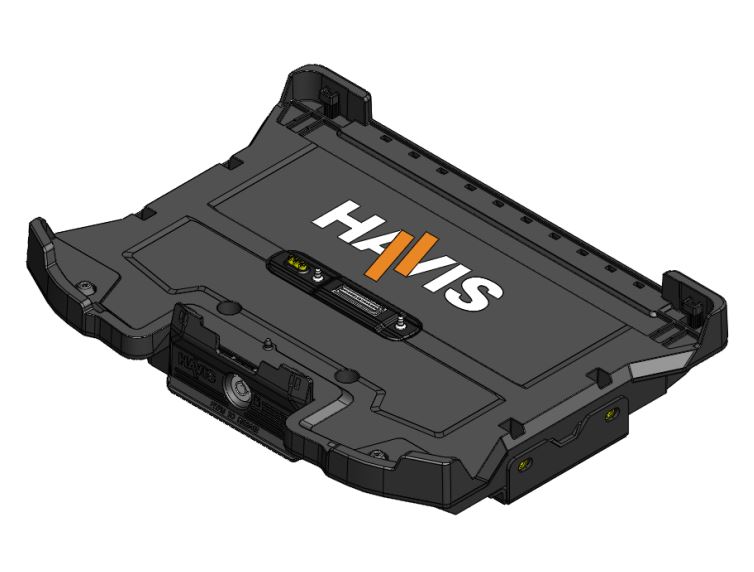

3D Rendering
3D Rendering
Download share
Getac Brochure
Getac Brochure
Download share
Getac Speeds & Feeds
Getac Speeds & Feeds
Download share
DS-GTC-1400 Sales Sheet - Public Safety
DS-GTC-1400 Sales Sheet - Public Safety
Download share
DS-GTC-1400 Sales Sheet - Work Truck
DS-GTC-1400 Sales Sheet - Work Truck
Download share

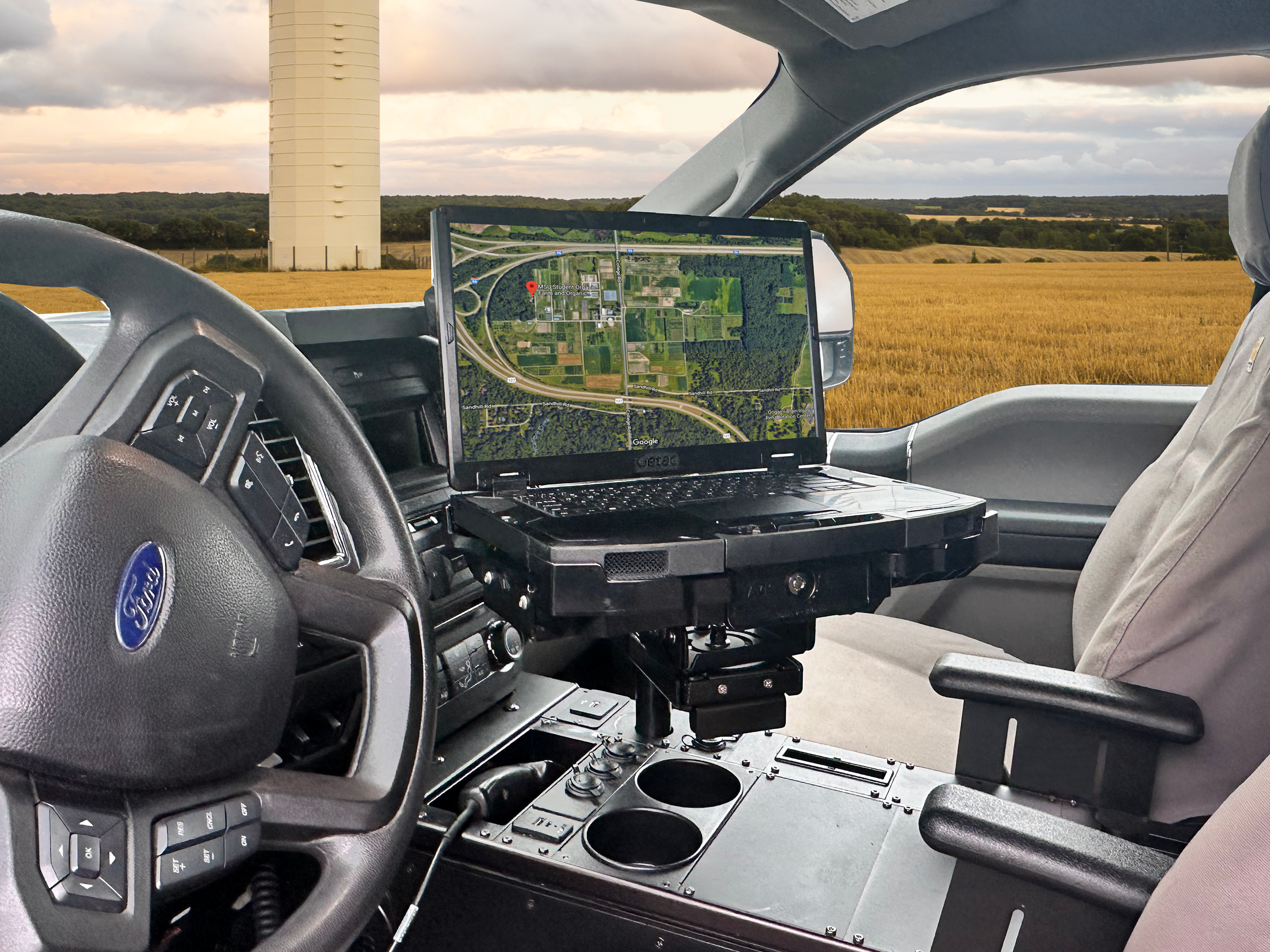

Application Gallery

product galleryproduct gallery

Compatibility

Getac S510 Laptop
Getac S510 Laptop
