Features

  • Flex arm package including flex arm and mounting for flat surfaces

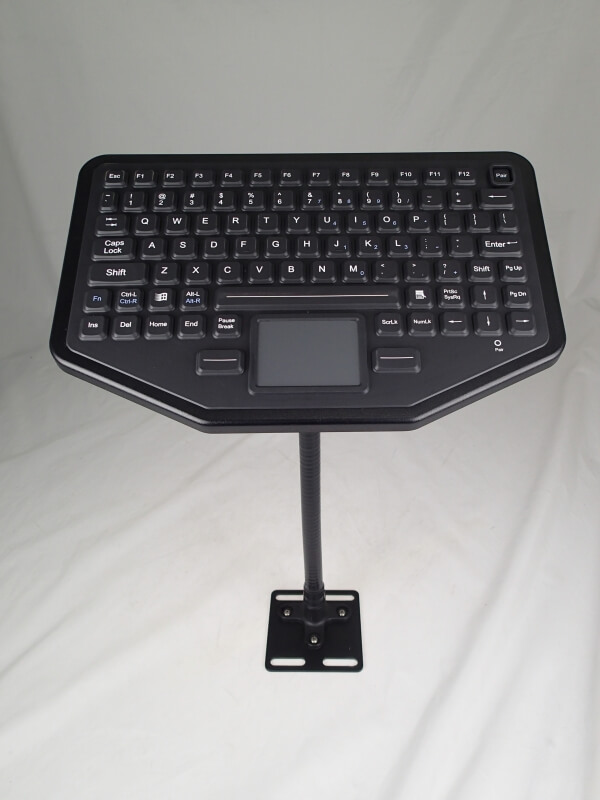

  • Intended for lightweight keyboard or tablet applications up to 5lbs. total weight
  • Flexible shaft C-FAM-201 included with swivel ball joint on top provides multiple positioning options

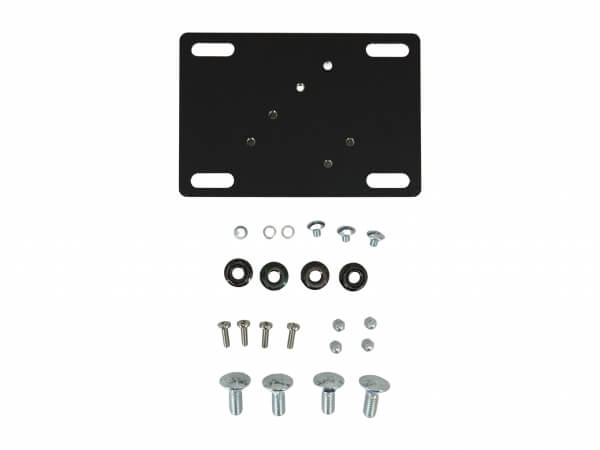

  • Base bracket mounts to any flat surface with 5.5" x 3.75" clear area
  • Works with 1.20" x 1.50" (30mm x 38mm) AMPS hole pattern
  • Keyboard or device can be removed by loosening ball mount at top
  • Use C-ADP-112 adaptor for attaching to devices with VESA 75 hole pattern (sold separately)
  • Optional quick release C-FAM-301 sold separately
  • Replaces DS-DA-206
  • Does not work with C-KBM-xxx or C-3329-UNV mount

Specifications

PRODUCT SPECIFICATIONS:
Material:10 ga. steel base plate
Gross weight:2 lbs

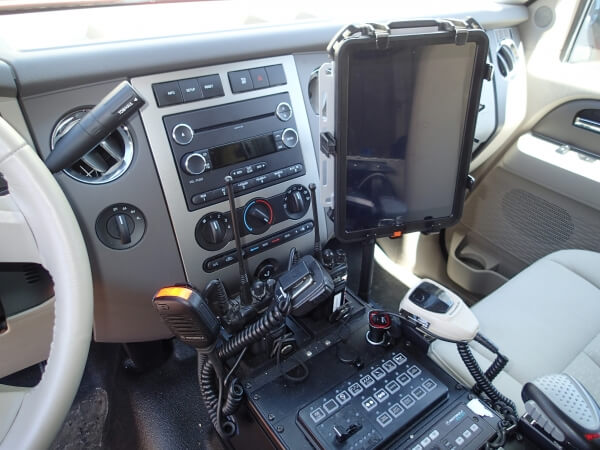

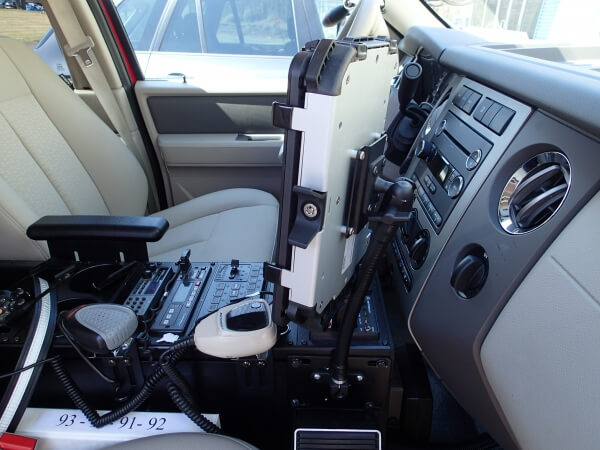

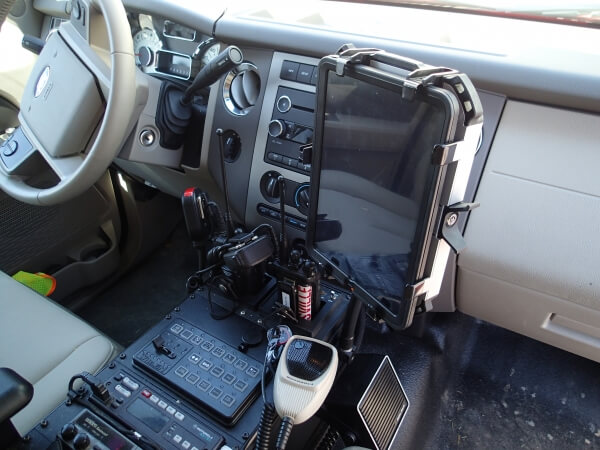

Application Gallery

product galleryproduct galleryproduct gallery

Resources

Installation Instructions (PDF)
Installation Instructions (PDF)
Download share

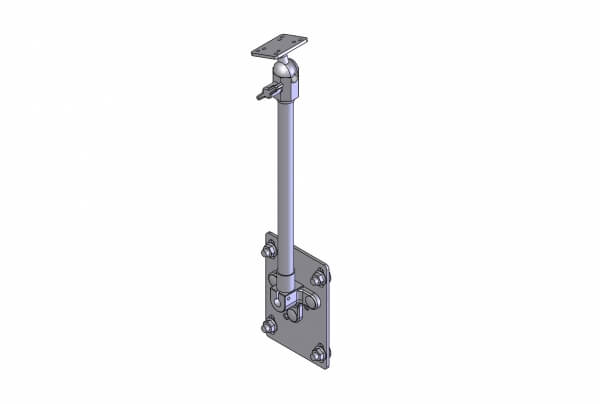

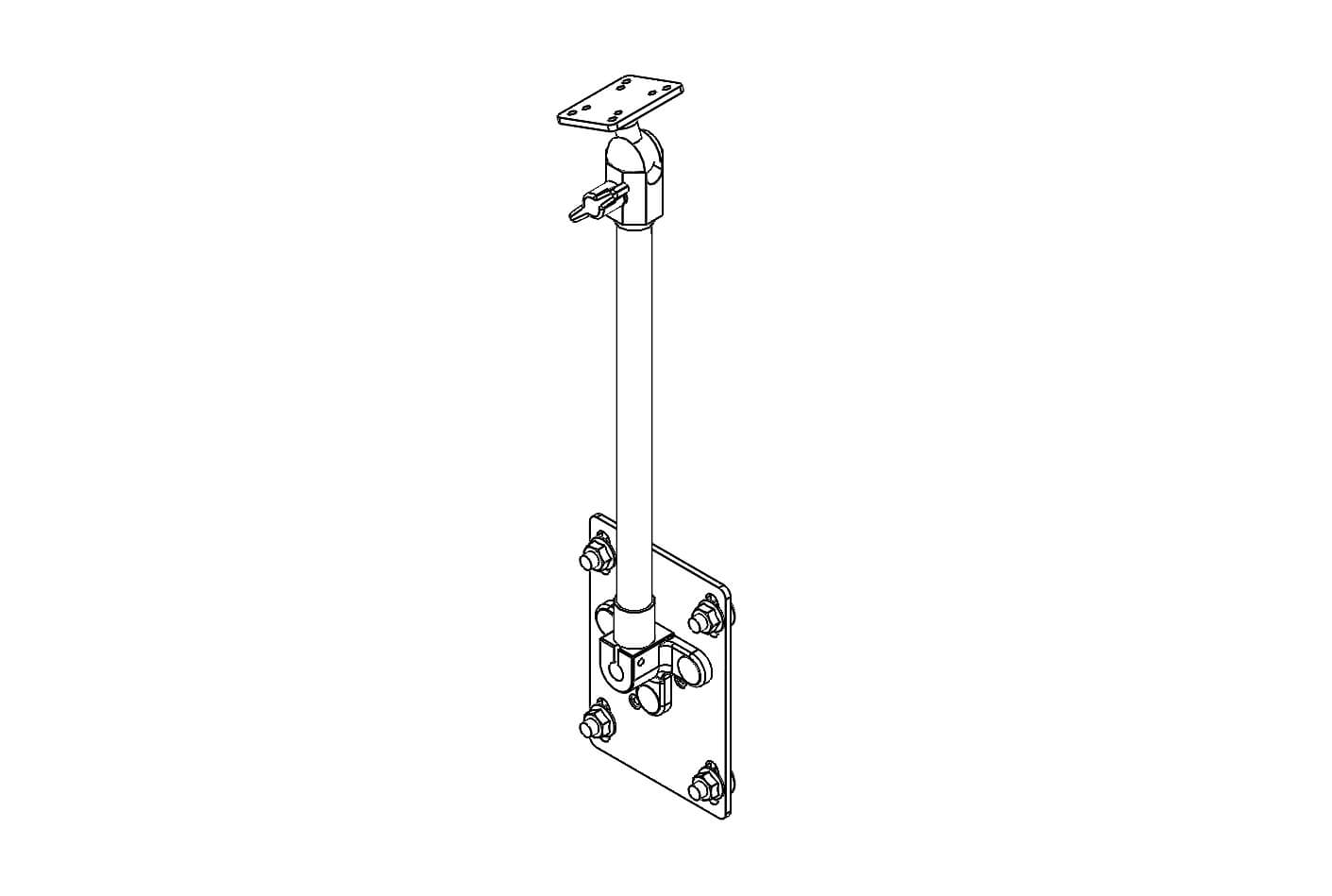

Isoview Drawing (JPG)
Isoview Drawing (JPG)
Download share
