Features

  • Compatible Havis docking stations: DS-PAN-720 & DS-PAN-700 Series
  • Compatible with the following Panasonic Toughbooks devices: G2, G1
  • Power supply kit includes: 90 w LIND power supply, 3' output power cable with straight yellow tip connector, 6' input cable with cigarette lighter adapter, and Mounting hardware

Specifications

PRODUCT SPECIFICATIONS:
Compatible computers:Panasonic TOUGHBOOK G2 & G1
Watts:90
Voltage:12-16 VDC input, 15 VDC output
Input cable:72" cigarette lighter adaptor
Output cable:36" yellow tip connector
Dimensions:1.1" (2.9 cm) x 5.5" (14.0 cm) x 3.1" (7.8 cm)
Gross weight:2 lbs

Resources

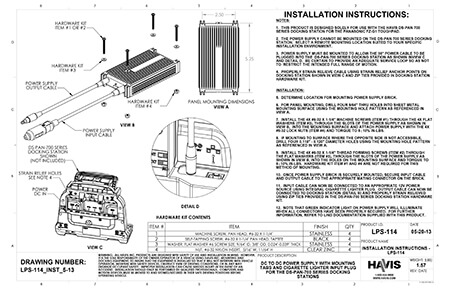

Installation Instructions (PDF)
Installation Instructions (PDF)
Download share
Compatibility Matrix (PDF)
Compatibility Matrix (PDF)
Download share

Compatibility

DS-PAN-720 & DS-PAN-700 Series Docking Stations
DS-PAN-720 & DS-PAN-700 Series Docking Stations
Toughbooks G2, G1
Toughbooks G2, G1

Related products

  • Docking Station For Panasonic TOUGHBOOK G2 Tablet With Advanced Port Replication & Dual Pass-Thru Antenna Connections
    DS-PAN-721-2
    $877.00
    Docking Station For Panasonic TOUGHBOOK G2 Tablet With Advanced Port Replication & Dual Pass-Thru Antenna Connections
    View product

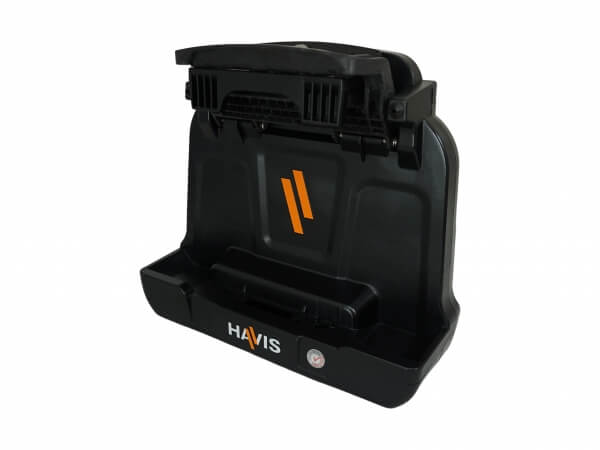

  • Cradle For Panasonic TOUGHBOOK G2 Tablet
