Features

  • Supports Public Sector, Retail, Hospitality, Warehouse & Distribution, Energy & Utilities, Field Service, and other demanding environments

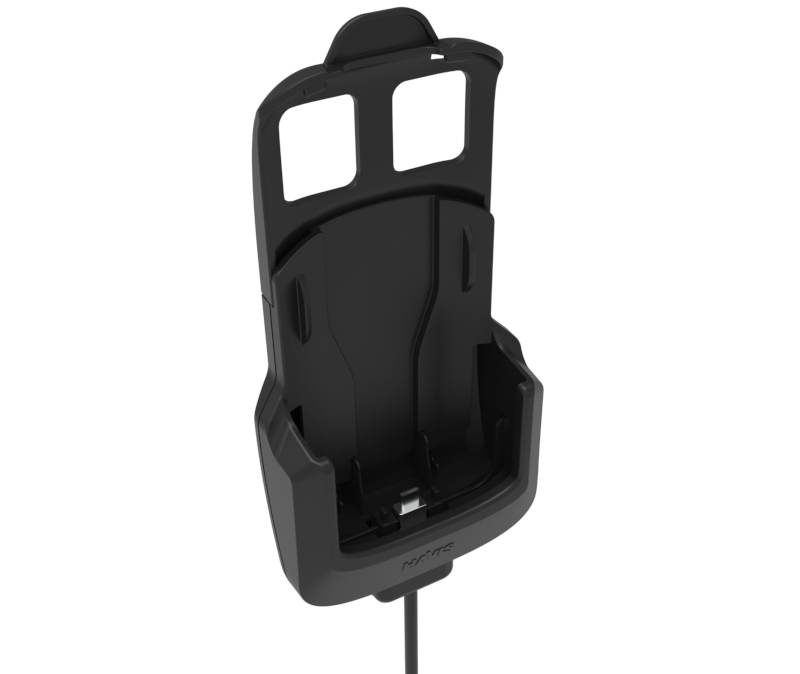

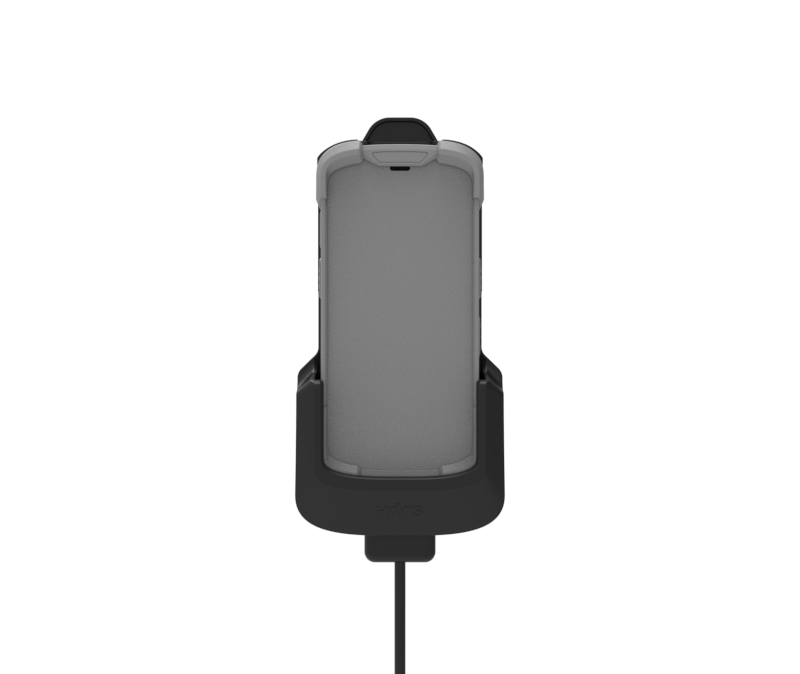

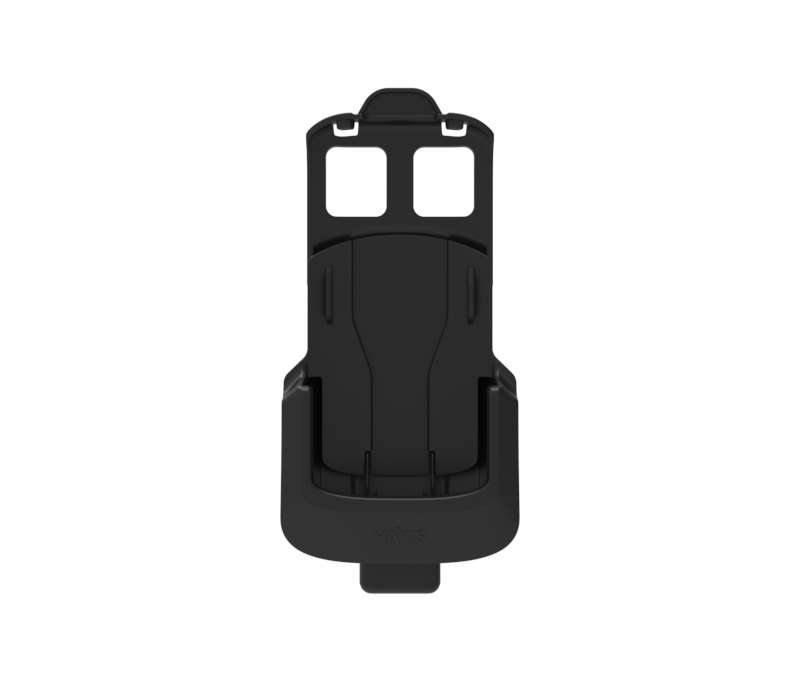

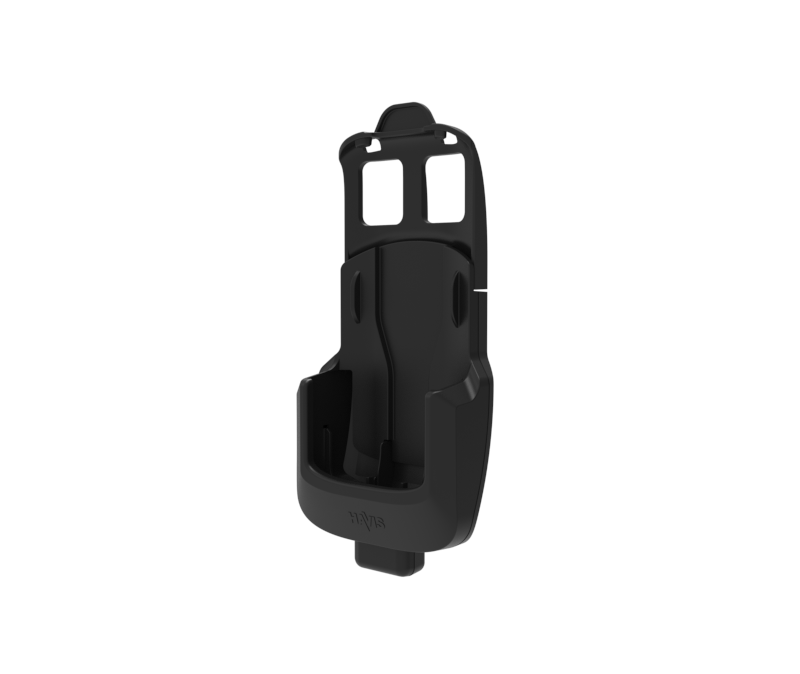

  • Robust docking solution for Zebra TC73/TC78 and Workstation Connect
  • Charging and data transfer via user replaceable USB-C cable
  • Easy access to all TC73/78 buttons
  • One handed docking and undocking
  • Compact and lightweight design
  • Supports extended battery and hand strap
  • Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
  • Rounded edges and corners for comfort and safety
  • Integrated AMPs mounting pattern

Specifications

PRODUCT SPECIFICATIONS:
Dimensions:9.06” (23.0 cm) H x 4.20” (10.7 cm) W x 2.19” (5.6 cm) D
Compatible Packages:PKG-DS-ZEB-701
Mounting:AMPS
Communication Interface:USB-C to USB-C cable
Working Voltage:5 VDC
Operating environment:-20°C to 50°C (-4°F to 122°F)
Storage environment:-40°C to 85°C (-40°F to 185°F)
Testing:Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30 mph Cycle Testing: Dock and undock for 20K cycles Environmental Testing: Hot/cold operating -20°C to 50°C (-4°F to 122°F) Environmental Testing: Hot/cold storage -40°C to 85°C (-40°F to 185°F)
Product weight: 0.65 lbs. (0.29 kg)
Gross weight:1 lbs

Resources

Owner's Manual (PDF)
Owner's Manual (PDF)
Download share
DS-ZEB-700 Series – Zebra TC73/78 Sales Sheet - Public Safety
DS-ZEB-700 Series – Zebra TC73/78 Sales Sheet - Public Safety
Download share
DS-ZEB-700 Series – Zebra TC73/78 Sales Sheet - Warehouse
DS-ZEB-700 Series – Zebra TC73/78 Sales Sheet - Warehouse
Download share

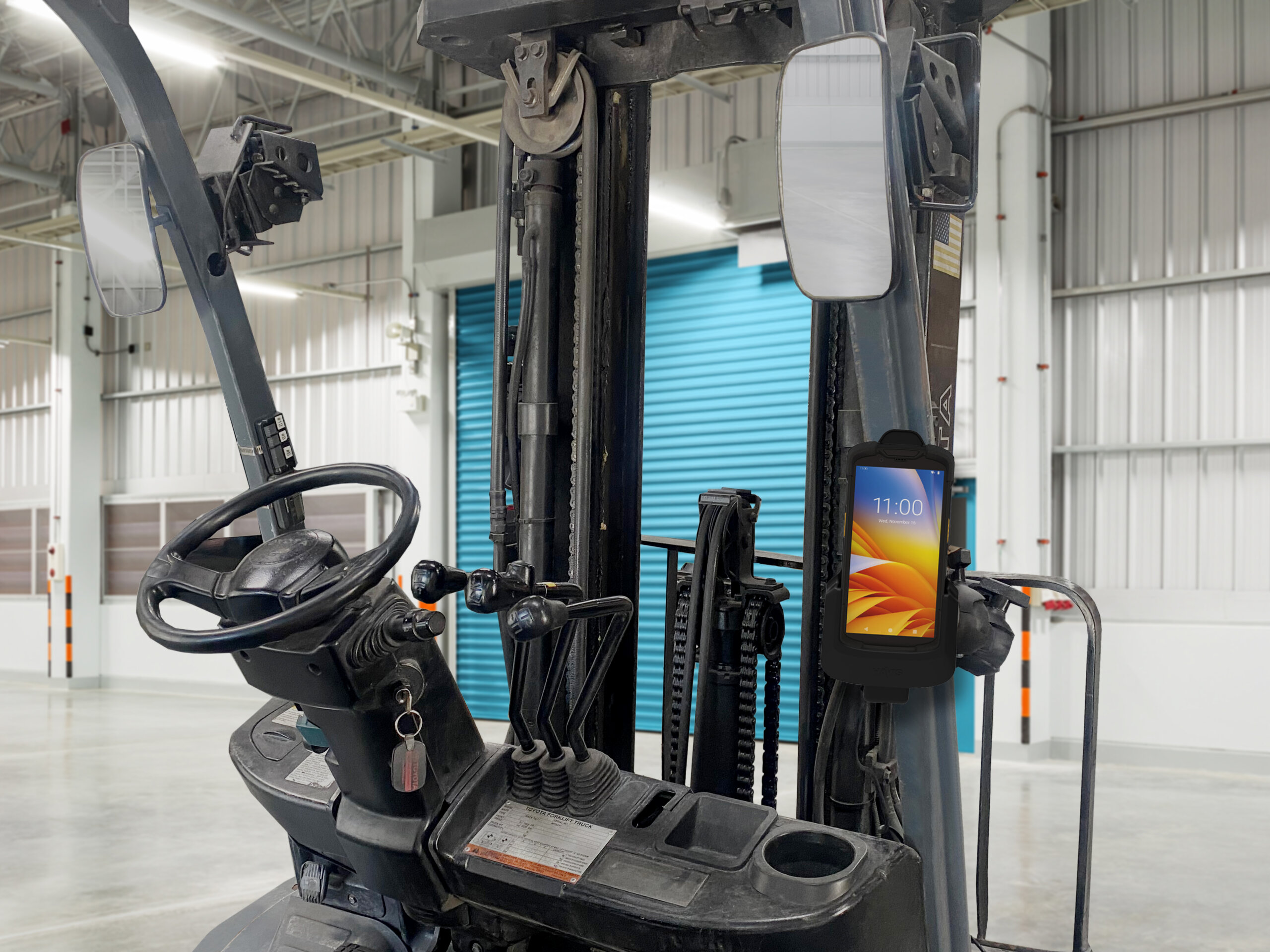

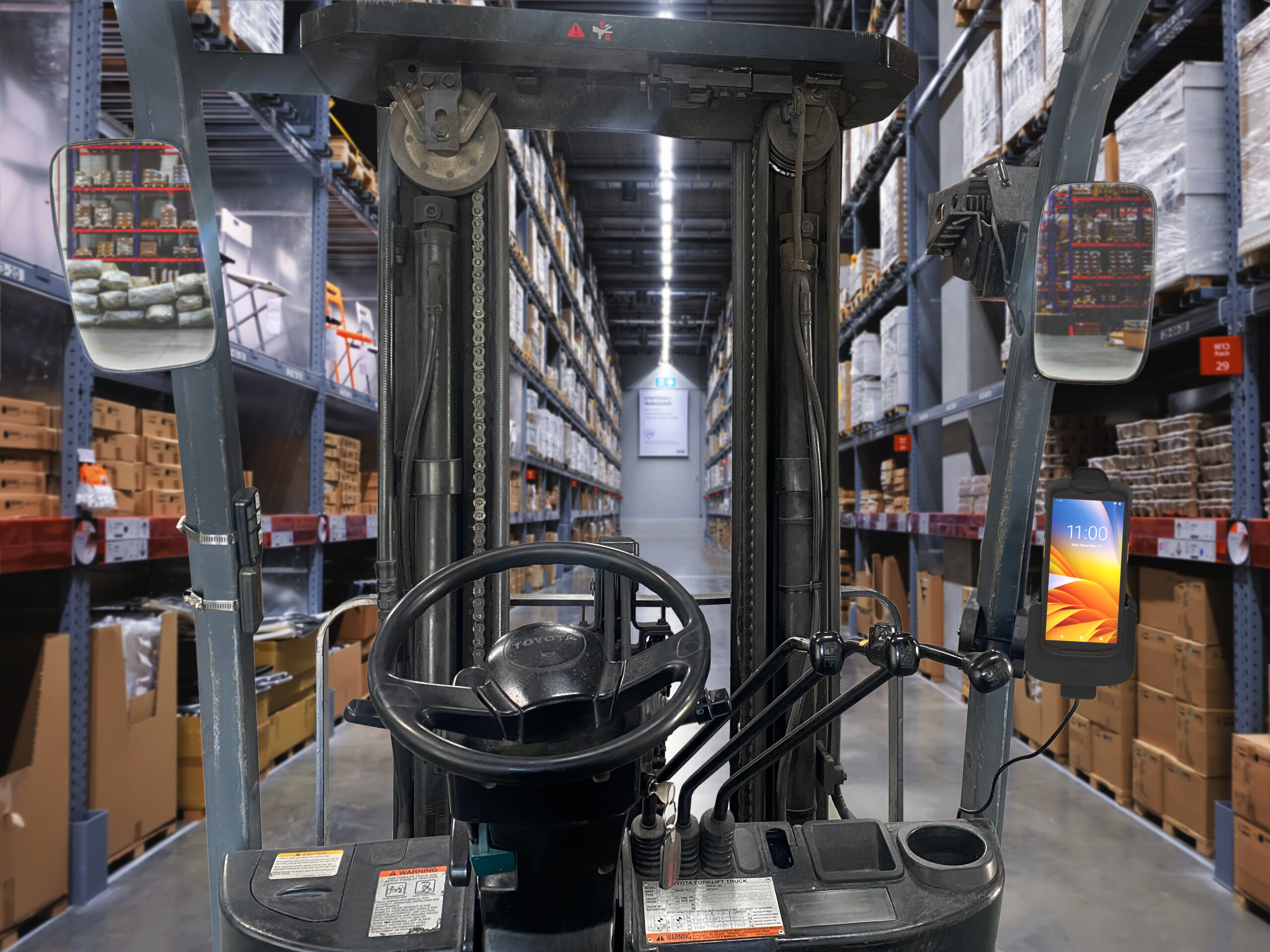

Application Gallery

product galleryproduct galleryproduct galleryproduct galleryproduct galleryproduct gallery

Compatibility

Zebra TC73/TC78 Mobile Computers
