Features

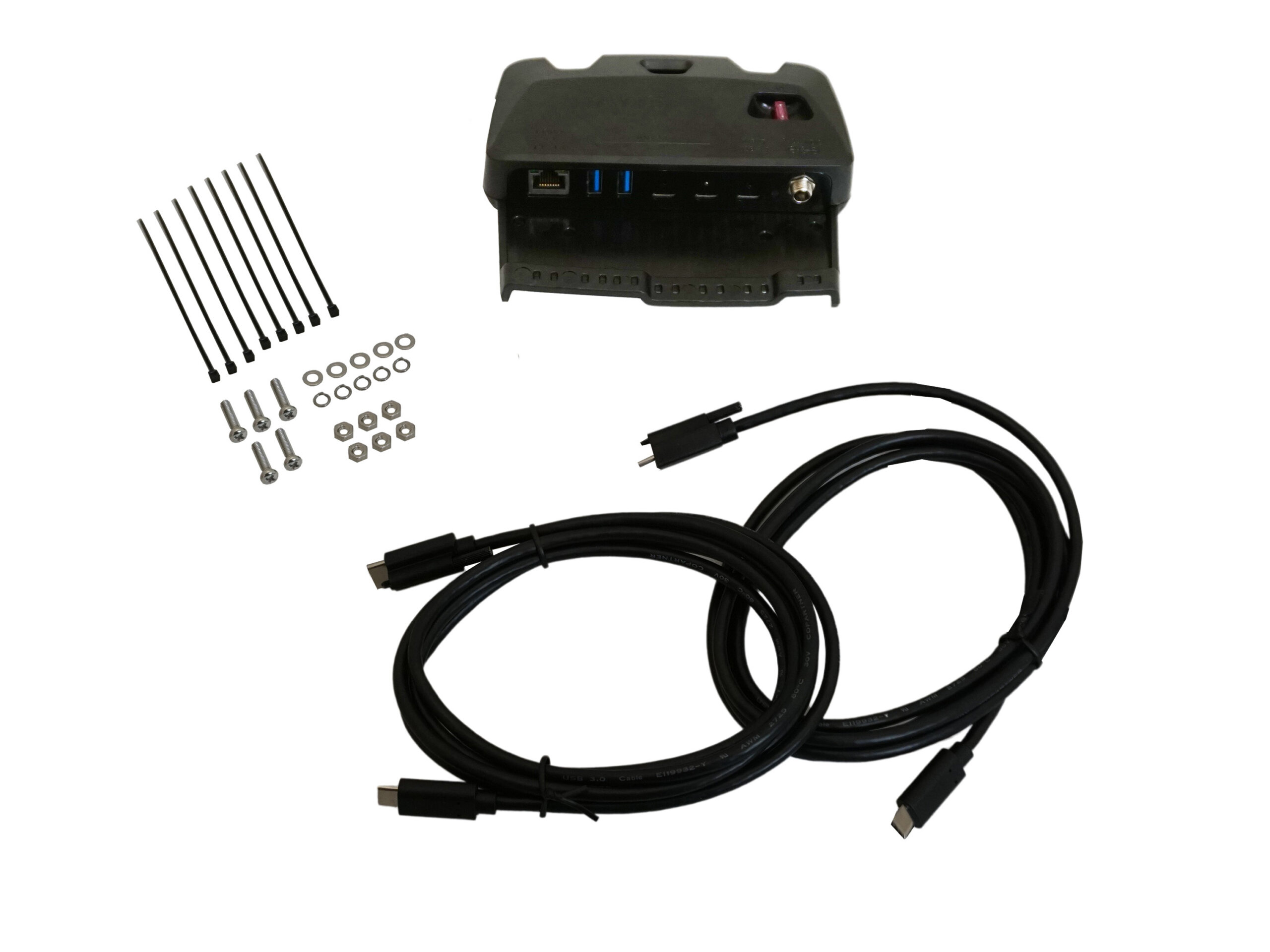

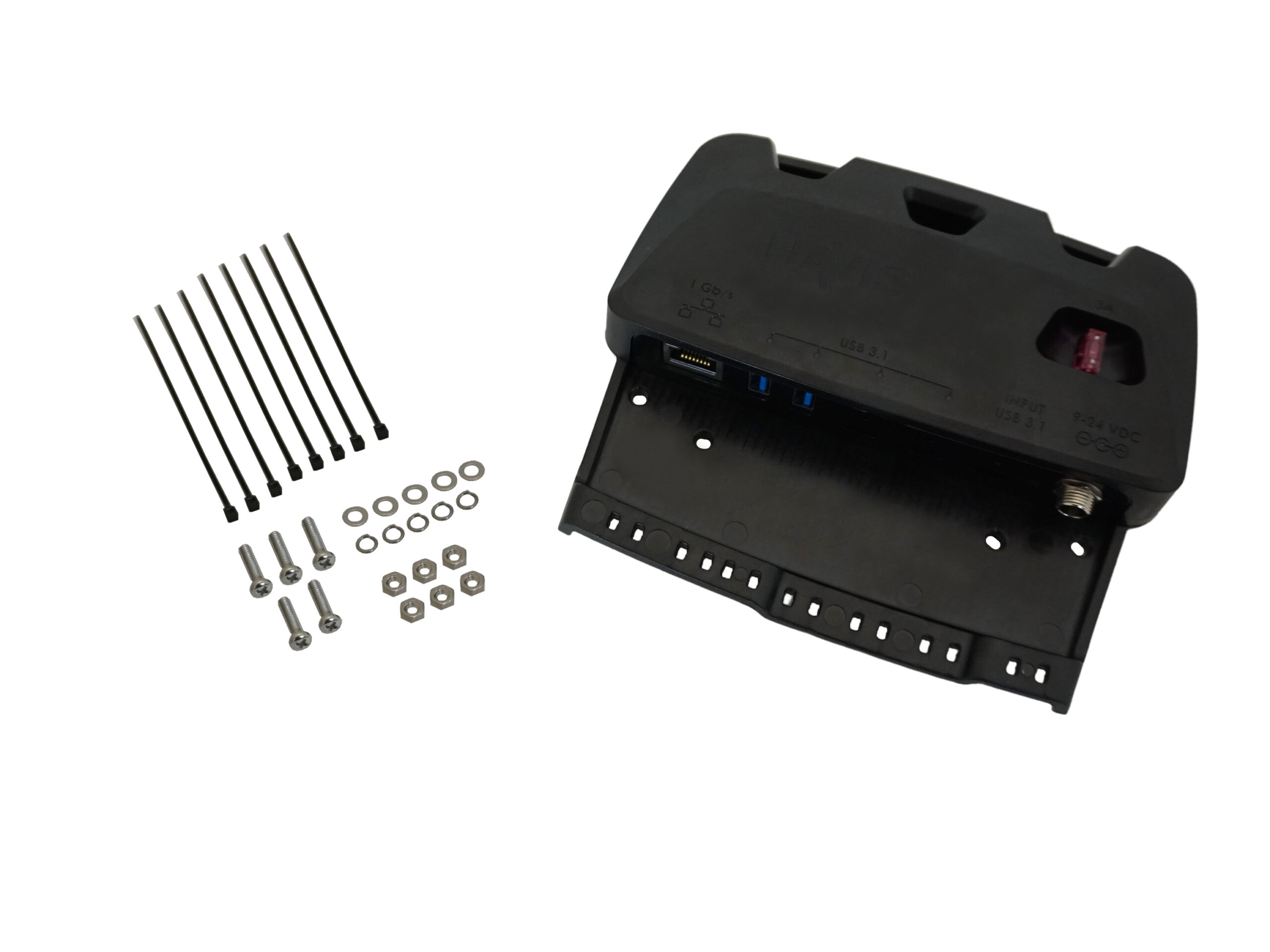

  • Rugged USB-C Port Replication Hub with power cable, upstream USB-C cable, driver software, 3A fuse, mounting hardware, and USB-C to USB cable
  • Ideal for use in unfavorable conditions where ruggedness and reliability is a necessity, such as mobile workplaces, manufacturing plants, shipping/loading docks, construction, and agricultural industries
  • RJ45 Gigabit Ethernet port
  • 2x Type C USB3.1 Gen1 ports with thumbscrew retention feature
  • 2x Type A USB3.1 Gen1 ports
  • Upstream USB-C cable included with thumbscrew retention feature
  • User-replaceable 3.0A fuse

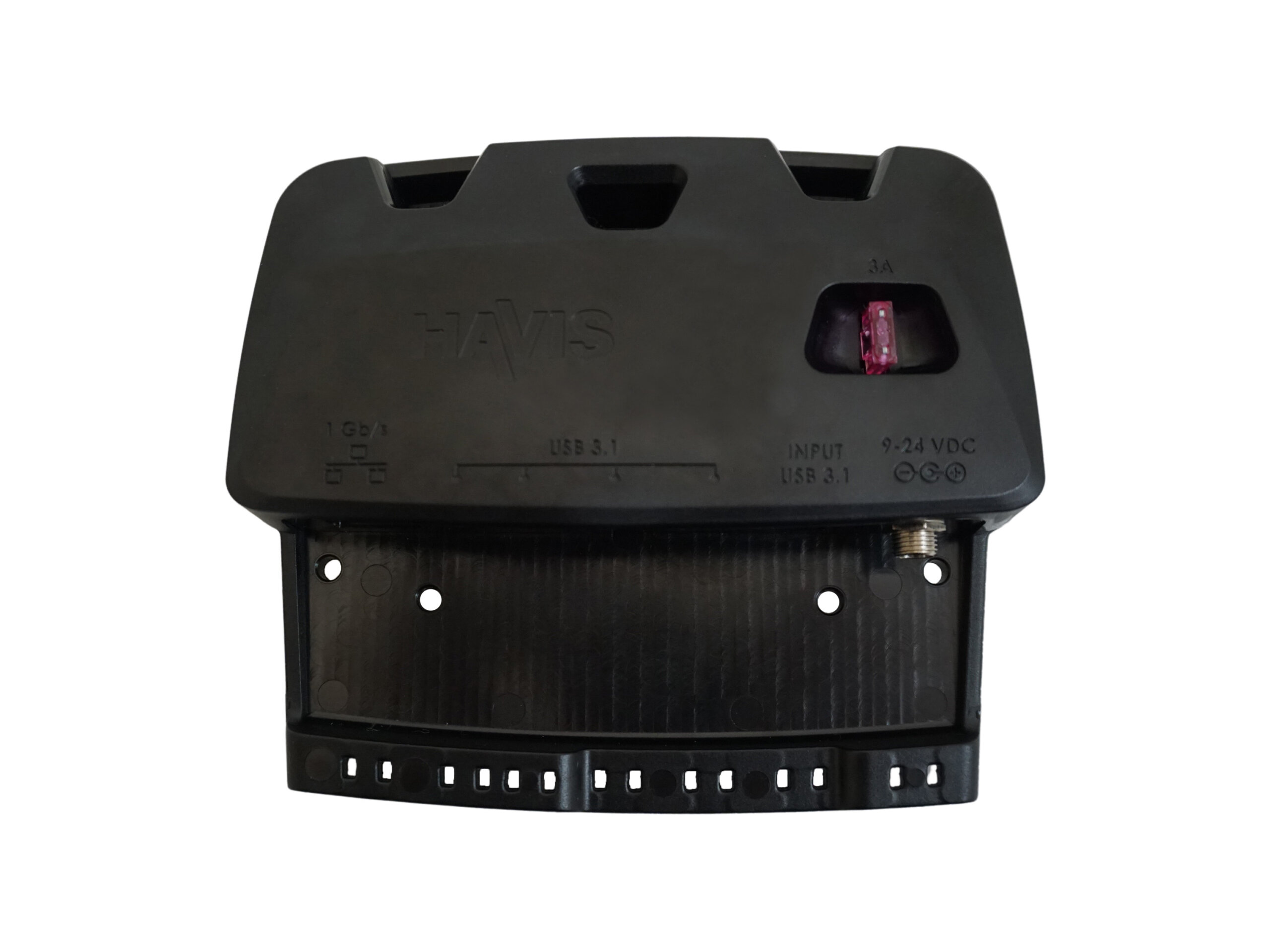

  • Multiple mounting hole patterns including VESA75 enable secure mounting on flat surface
  • Compact, lightweight Polycarbonate-ABS construction ensures durability and temperature resistance
  • Diagnostic LED indicators for hub power and RJ45 Ethernet link activity
  • Integrated strain relief secures cable connections, preventing disconnects and connector damage
  • Economical expansion of peripherals for harsh work environments, such as in-vehicle video, GPS, scanners, card readers, and printers
  • Internal power supply keeps peripherals safe from damage during over-voltage, engine cranking and voltage spikes

Specifications

PRODUCT SPECIFICATIONS:

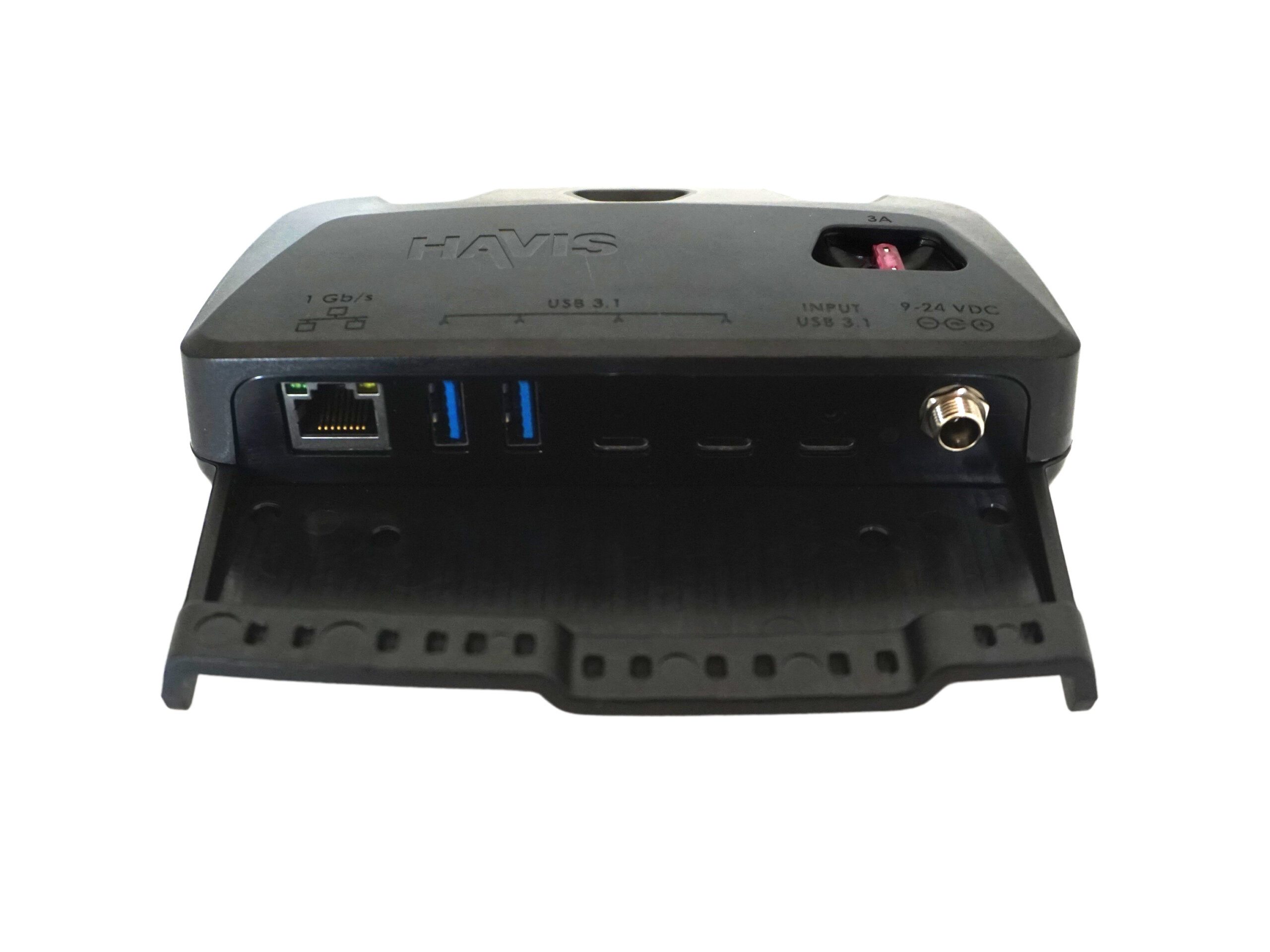

Port Replication:(1) RJ45 Gigabit Ethernet port, (2) USB3.1 Gen 1 Type A ports (maximum current 0.9A), (2) USB3.1 Gen 1 Type C ports (maximum current 1.5A)
Upstream connection:USB3.1 Type C upstream input with thumbscrew retention feature
Power requirements:Internal power supply input range 9-36VDC
Cables included:Type C upstream cable with thumbscrew retention feature, threaded power cable with cigarette lighter adapter
Other items included:User-replaceable 3.0A fuse, mounting hardware
Temperature range:Operating environment: -30° C to 70° C (-22° F to 158° F) Storage environment: -40° C to 85° C (-40° F to 185° F)
Product Dimensions:1.25” (3.18 cm) H x 5.65” (14.35 cm) W x 4.91” (12.47 cm) D
Product Weight:0.44 lbs. ( 0.20 kg)
Gross weight:1.25 lbs

Resources

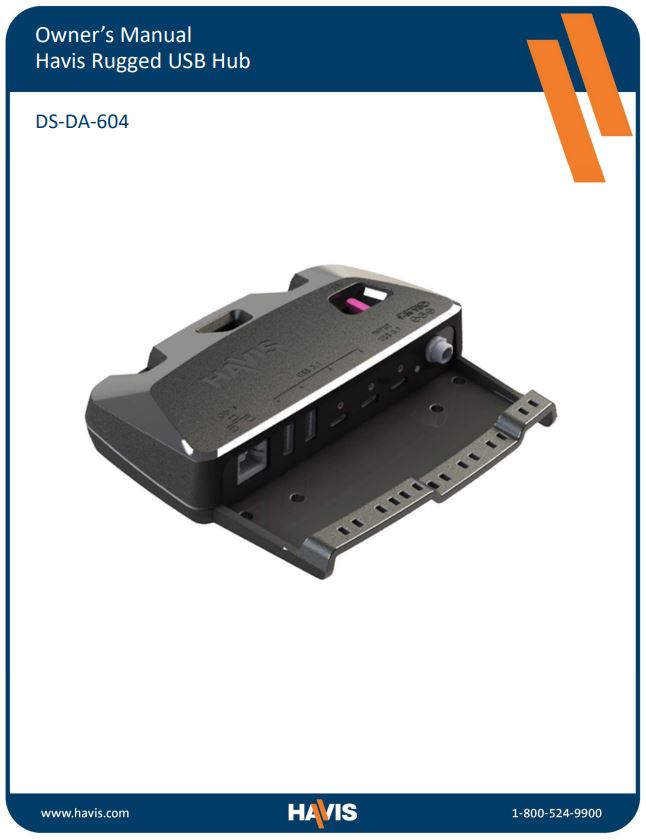

Owner's Manual (PDF)
