Features

  • Supports Zebra's ET60, ET65, ET60W, & ET65W Tablets in stationary environments
  • Advanced port replication includes ethernet and powered serial as well as standard options to support mission-critical peripherals
  • LED power indicator
  • Spring-loaded, floating docking connector head ensures consistent connectivity
  • One-handed docking & undocking
  • Requires a Havis-approved external power supply
  • Whenever the tablet is docked, critical buttons and ports for ET60, ET65, ET60W & ET65W devices are accessible, as well as the bar code scanner for ET60 & ET65 devices
  • Compact & lightweight
  • Compatible with the Zebra Stylus Tether, Stylus MPP 2.0, and Handle with Stylus Holder
  • Integrated cable management system

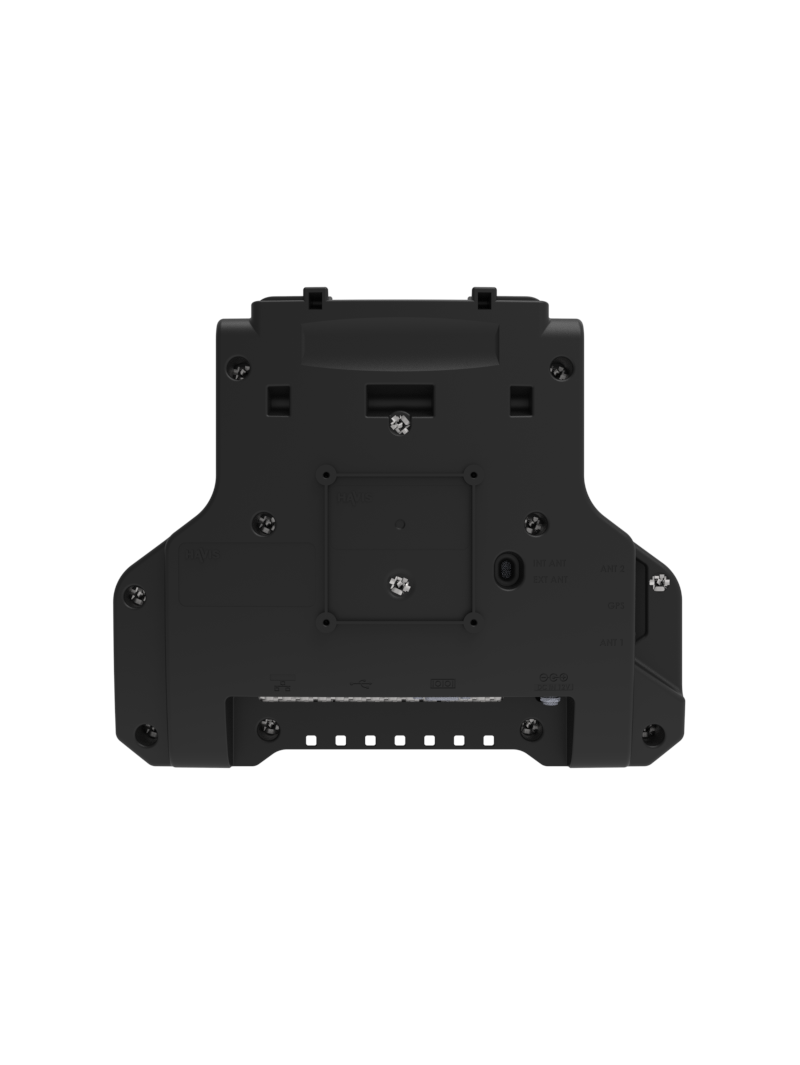

  • Integrated VESA 75 mounting pattern
  • Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
  • Rounded edges and corners for comfort and safety
  • Made in USA

Specifications

PRODUCT SPECIFICATIONS:
Compatible Devices:Zebra ET60, ET65, ET60W, & ET65W Tablets
Certifications:

Cycle Testing: Latch handle and docking connectors 30K cycles
Environmental Testing: Hot/Cold operational -4° C to 50° C (25° F to 122° F); Hot/Cold storage -40° C to 70° C (-40° F to 158° F)

Port Replication:Advanced: (2) USB 2.0 (1) RJ45 Ethernet (1) Powered Serial Port (5V)
Approved power supplies: LPS-189, LPS-190, LPS-191
Dimensions:9.9" (252mm) H x 12.0” (305 mm) W X 3.3” (84 mm) D
Product weight: 2.0 lbs (0.91kg)
Gross weight:2.25 lbs

Resources

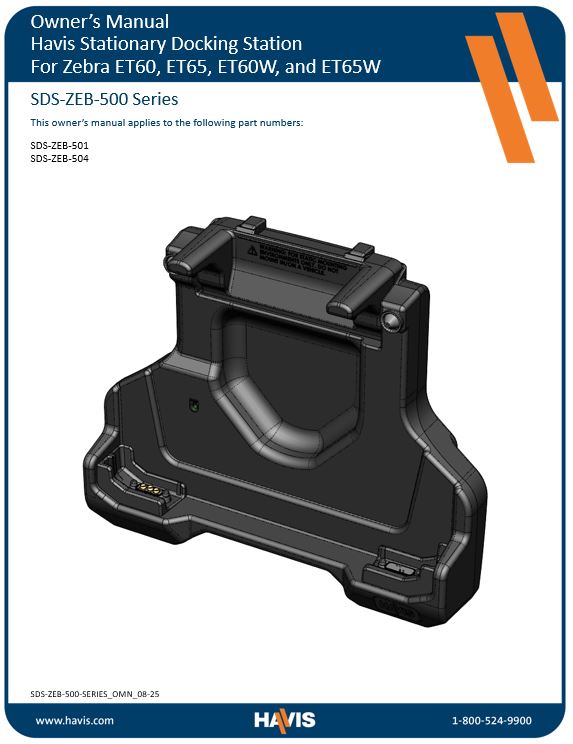

Owner's Manual (pdf)
Owner's Manual (pdf)
Download share
DS-ZEB-500 ET6X Series Sales Sheet - Public Safety
DS-ZEB-500 ET6X Series Sales Sheet - Public Safety
Download share
DS-ZEB-500 ET6X Series Sales Sheet - Material Handling
DS-ZEB-500 ET6X Series Sales Sheet - Material Handling
Download share
DS-ZEB-500 ET6X Series Sales Sheet - Work Truck
DS-ZEB-500 ET6X Series Sales Sheet - Work Truck
Download share

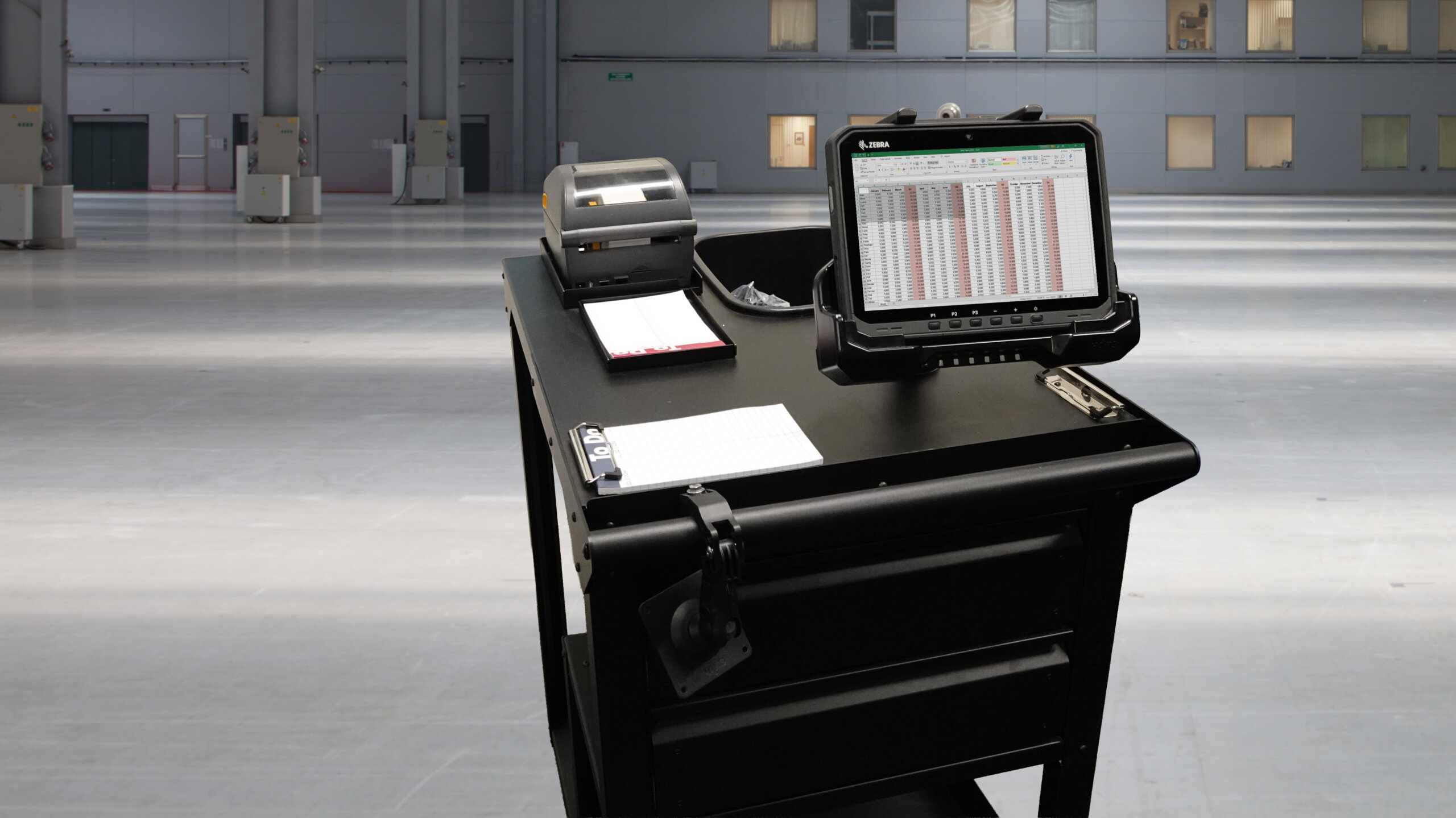

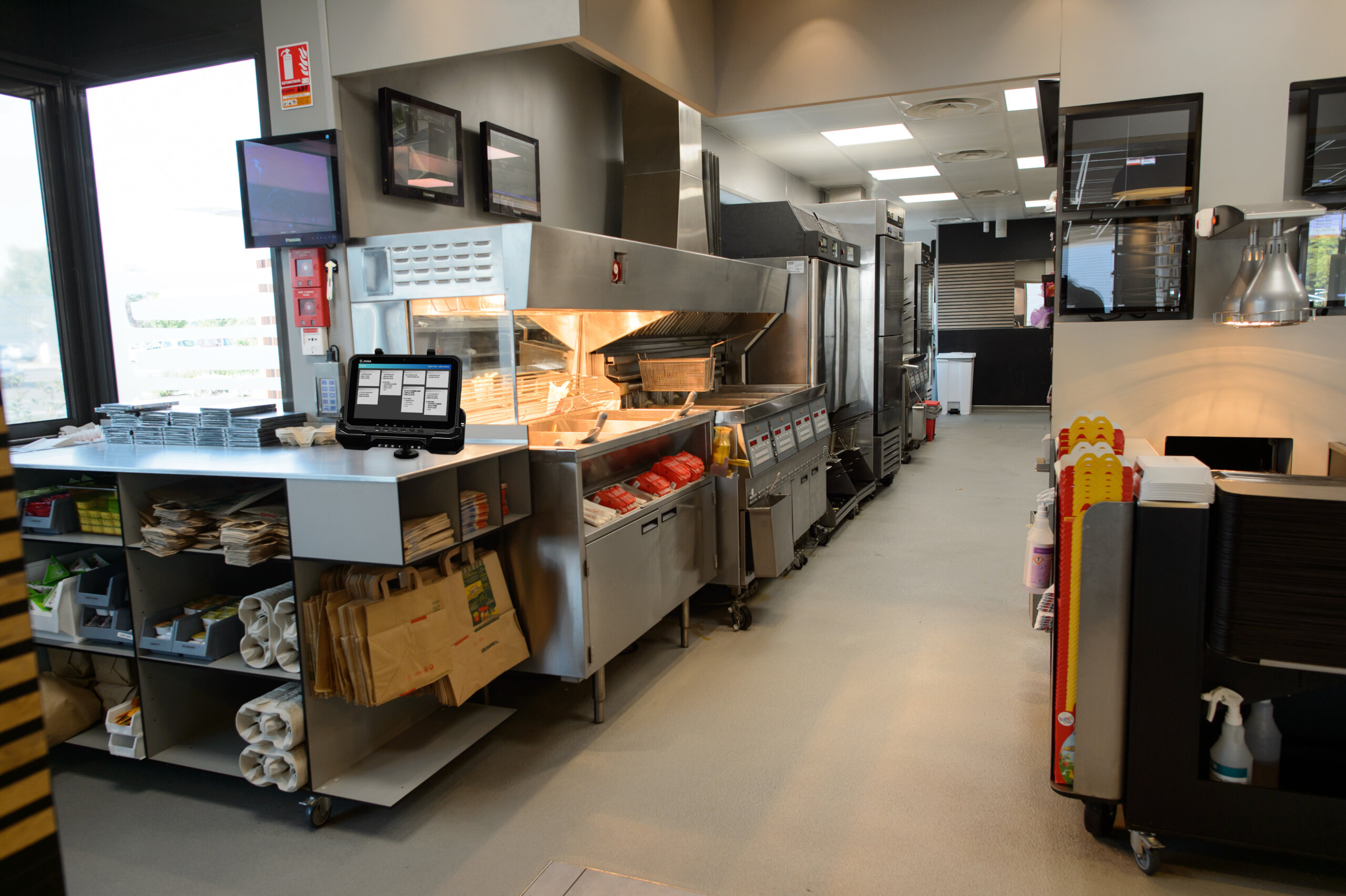

Application Gallery

product galleryproduct galleryproduct galleryproduct galleryproduct galleryproduct gallery

Compatibility

Zebra ET60, ET65, ET60W, & ET65W Tablets
