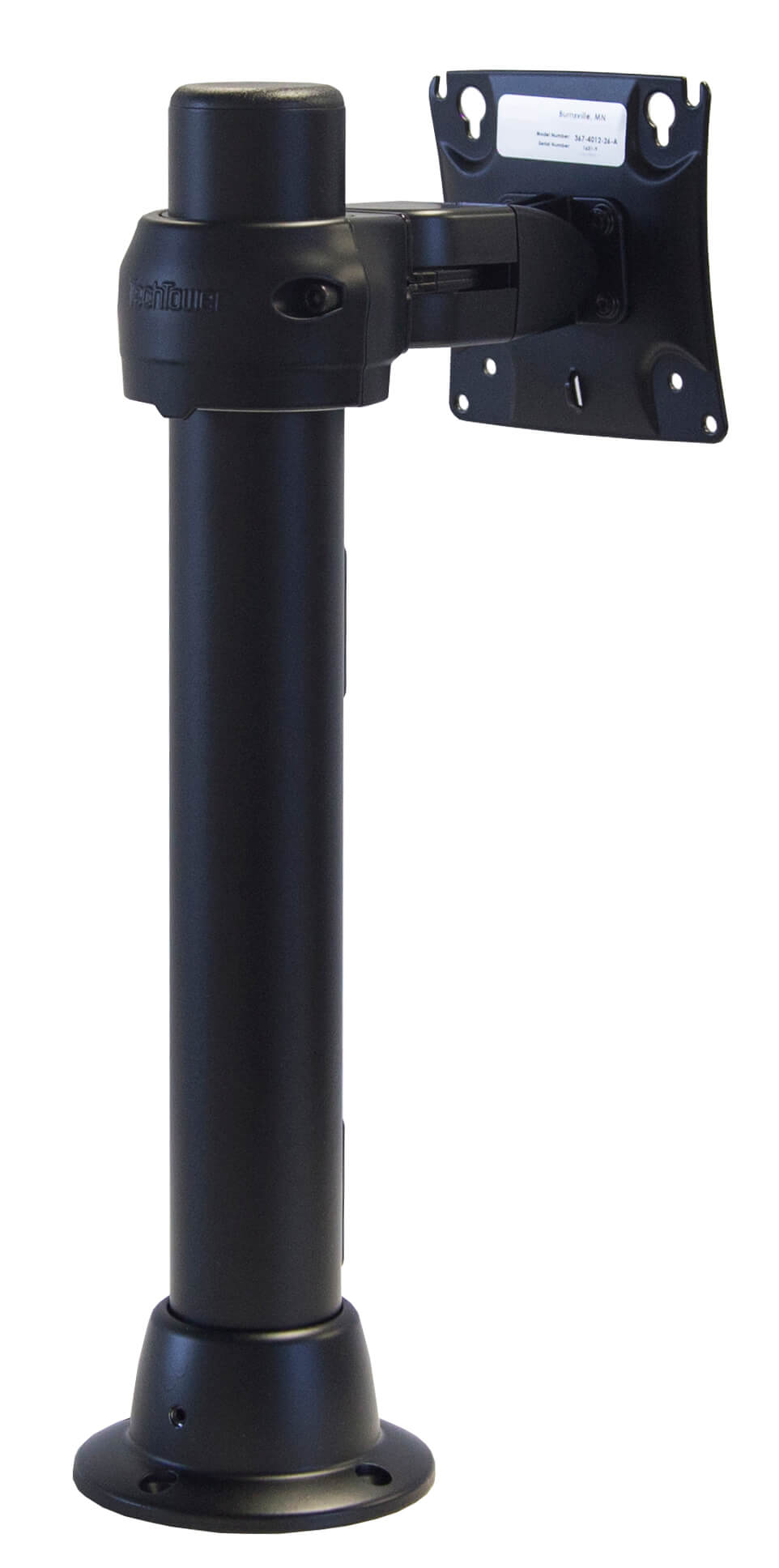

Features

  • Offering our popular Pre-configuration - order just 1 part number!
  • The durable cast metal Grommet Base can be attached above or below your countertop
  • 2" diameter Pole is large enough to allow all your cables and connectors to pass through!
  • Includes edge liners to protect cables as they enter or exit the Pole
  • Includes mounting hardware and a TechTower Tool kit
  • Double-pivot allows an upward Monitor tilt of 50 degrees, downward tilt of 10 degrees and 180 degrees of rotation around the pivot mount
  • No knobs or levers required to keep the Monitor in any tilt position
  • Tilt tension is adjustable using common tools
  • Provides 330 degrees of rotation around the axis of the Pole
  • Our VESA plate includes keyhole upper attachment points to allow easy one-person monitor installation
  • Constructed using the highest quality materials and no metal-to-metal contact on moving parts ensure long life of product
  • Cable management features prevent strain on your monitor cables and connectors
  • All rounded edges and corners for safety
  • Made in USA

PRODUCT SPECIFICATIONS:
Compatible Devices:Suitable for 100mm and 75mm VESA compliant monitors weighing up to 20 lbs.
Certifications:RoHS
Product Dimensions:16.3"W x 7.3"D x 4.5"H
Shipping Dimensions:18"W x 10"D x 6"H
Gross weight:7 lbs

Resources

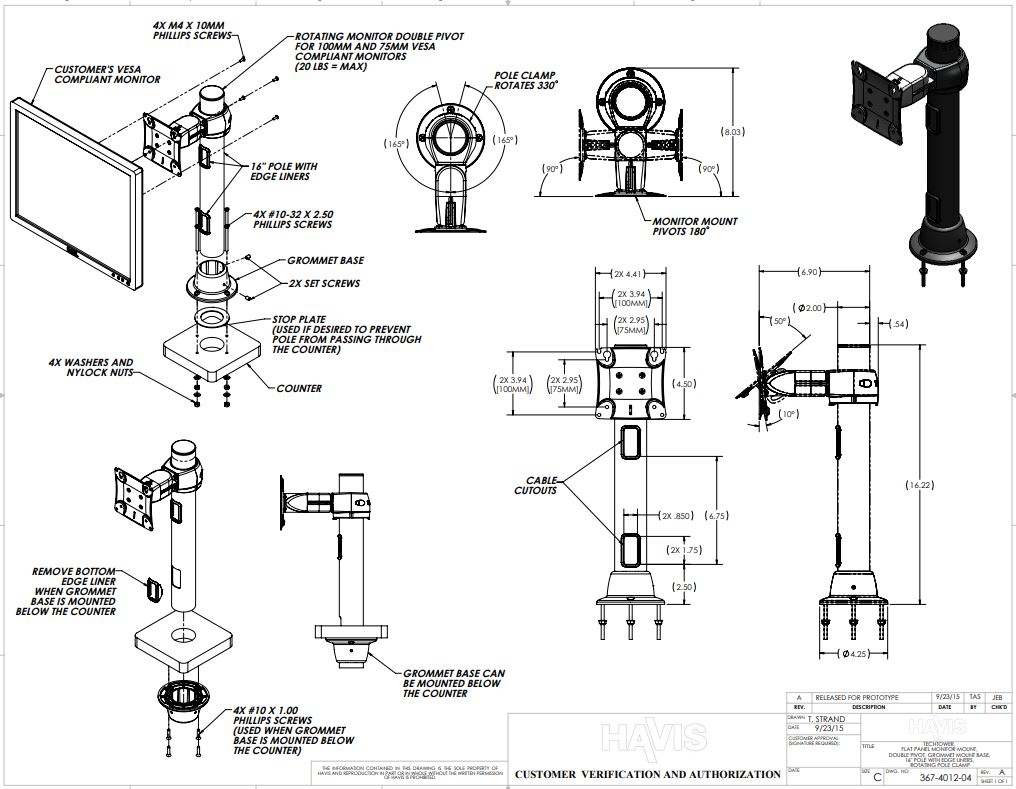

Customer Verification Drawing
Customer Verification Drawing
Download share

Compatibility

Related products

FAQs

If you would like to display Havis products in a showroom, demonstration vehicle, tradeshow display or similar area, please contact the Havis Sales Team to inquire.

Qualifying customers can test and evaluate products as part of the Test Drive Program. To submit an application to Test Drive a product, visit a product specification page and click Test this Product. After submitting your information, a Sales representative will contact you. Customers may also be interested in seeing a Havis demo vehicle in person. Check out our Find a Demo Unit page for more information.

Havis has elected to Go Green and will no longer be printing MSRP Price Booklets due to the fact that they are instantly outdated. However, our website is updated every day with the most accurate product information as well as many enhanced features. Product pricing can be found on each product specification page.

Havis has elected to Go Green and will no longer be printing catalogs due to the fact that they are instantly outdated. However, our website is updated every day with the most accurate product information as well as many enhanced features.

Electronic versions of Havis literature are available on the Havis Literature page.

Havis will provide literature to support Preferred Resellers. Please contact us, and enter your specific request under Questions/Comments.

The following illustrations demonstrate just some of the many ways to mount your computer onto our consoles or computer mounts. For more information, contact us at 1.800.524.9900.

In many cases, products are easily transferable between old and new vehicles. However, product transferability does depend on many variables including vehicle year/make/model, other equipment, etc. For more information, please contact Havis Sales Team.

Sales and Technical Support try to respond to all installation questions as quickly as possible. You should hear back within 24 hours of your request.

No, Havis does not have authorized installers nationwide. However, many Havis Resellers offer installation services and would be willing to work with you. To locate a reseller in your area, please use our interactive reseller map.

Havis does provide installation services to local customers near the Warminster, PA location. Please contact the Havis Sales Team to inquire.

Many Havis Resellers offer installation services and would be willing to work with you. To locate a reseller in your area, please use our interactive reseller map.

If you need installation help, please contact our Sales department by calling 1.800.524.9900 or by contacting us online. If Sales is unable to answer your question, they will direct you to the appropriate Technical Support representative to assist with your installation.

Product assembly varies between each specific product. Installation instructions are provided with your shipment for each product and on each product specification page online.
