Features

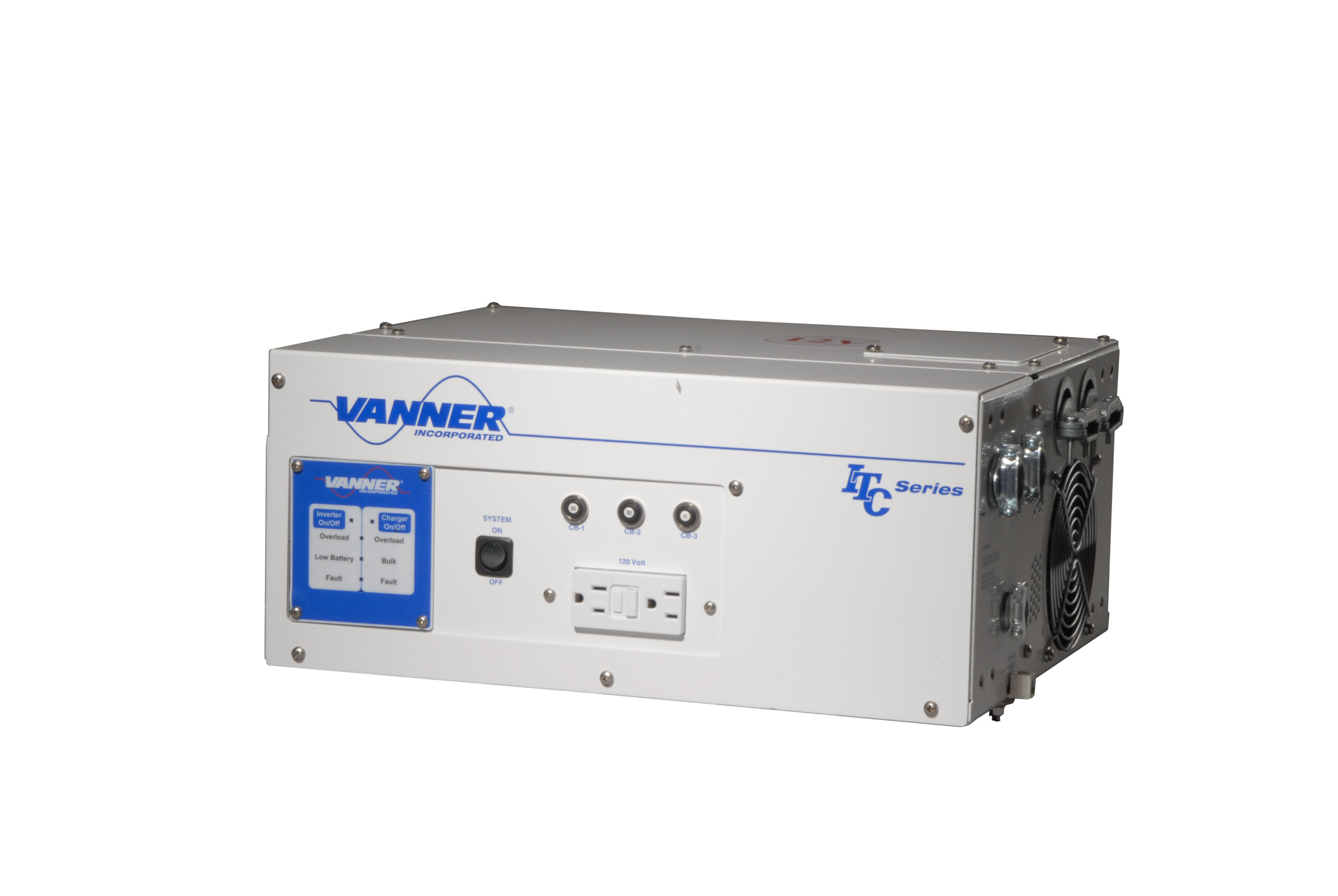

  • Industrial Grade ITC Series AC Power Inverters operate and protect equipment while including a battery charger with Automatic Power Management
  • Provides 2100W of continuous sine wave power and 3-second surge power up to 4200W
  • DC-AC inverter, battery charger, and automatic AC transfer switch; all designed with advanced power electronics and microprocessor technology
  • TruSine™ technology generates pure sine wave AC power to operate and protect the most sensitive electronic devices in the most extreme conditions.
  • Integrated Control / Display unit (remote mount capable)
  • Inverter Frequency Regulation ±0.5% and Waveform Regulation <4% THD
  • DC input range of 10.5Vdc to 17.0Vdc offers the widest DC input range available and compatible with all OEM multi-voltage and multi-mode alternators
  • Operating temperature range of -40F to 105F (-40C to 40C) for reliability in any climate
  • Three seconds of surge time offers ample surge time to start and operate the most demanding tools and equipment
  • Easy installation via Multi-Configurable mounting brackets
  • Hubbell self-test GFCI receptacle
  • Inverter is protected by safety interlocks to protect against failure
  • Automatic Multi-Stage Battery Charger
  • Efficient 0.85 PF charging from 30A AC Source (80A max)
  • Automatic Power Management (APM)
  • Flooded and Gel Lead Acid Battery compatible
  • All-metal body and chassis ensures safe operation and secure mounting regardless of orientation
  • 4-yr warranty if installed with Havis approved installation harness
  • UL / CUL Certified for Safety

PRODUCT SPECIFICATIONS:
Certifications:UL 458
DC Input:12Vdc
DC Voltage Range:10.5V to 16.5V
Operating Temperature:-40F to 105F (-40C to 40C)
Surge Rating:200% of continuous power for 3 seconds
Dimensions:8.25”H x 18.45”W x 13.65”D
Product Weight:66 lbs
EMC Standards:FCC Class B
Efficiency:77% to 88%
Standby Recovery:5 seconds
Gross weight:0 lbs

Resources

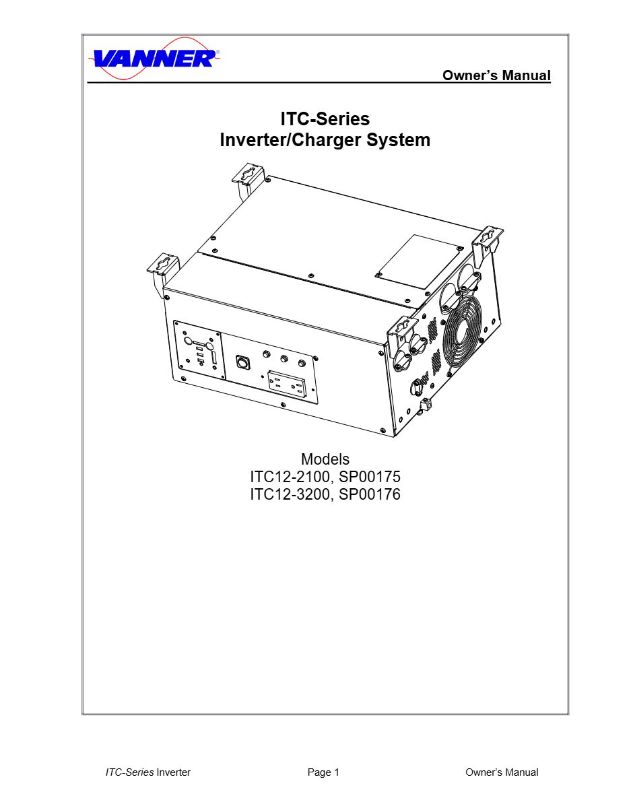

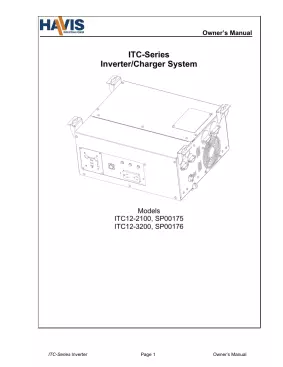

Owner's Manual
Owner's Manual
