Features

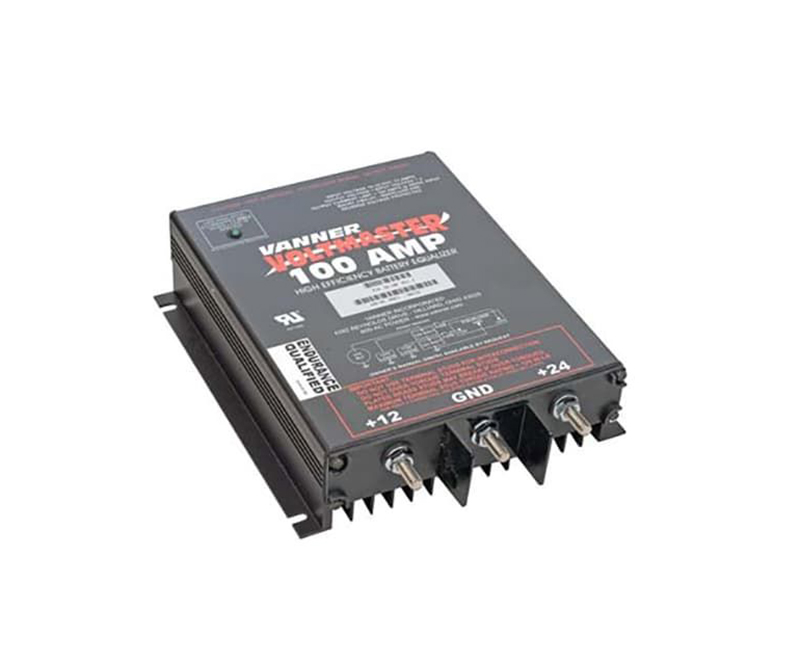

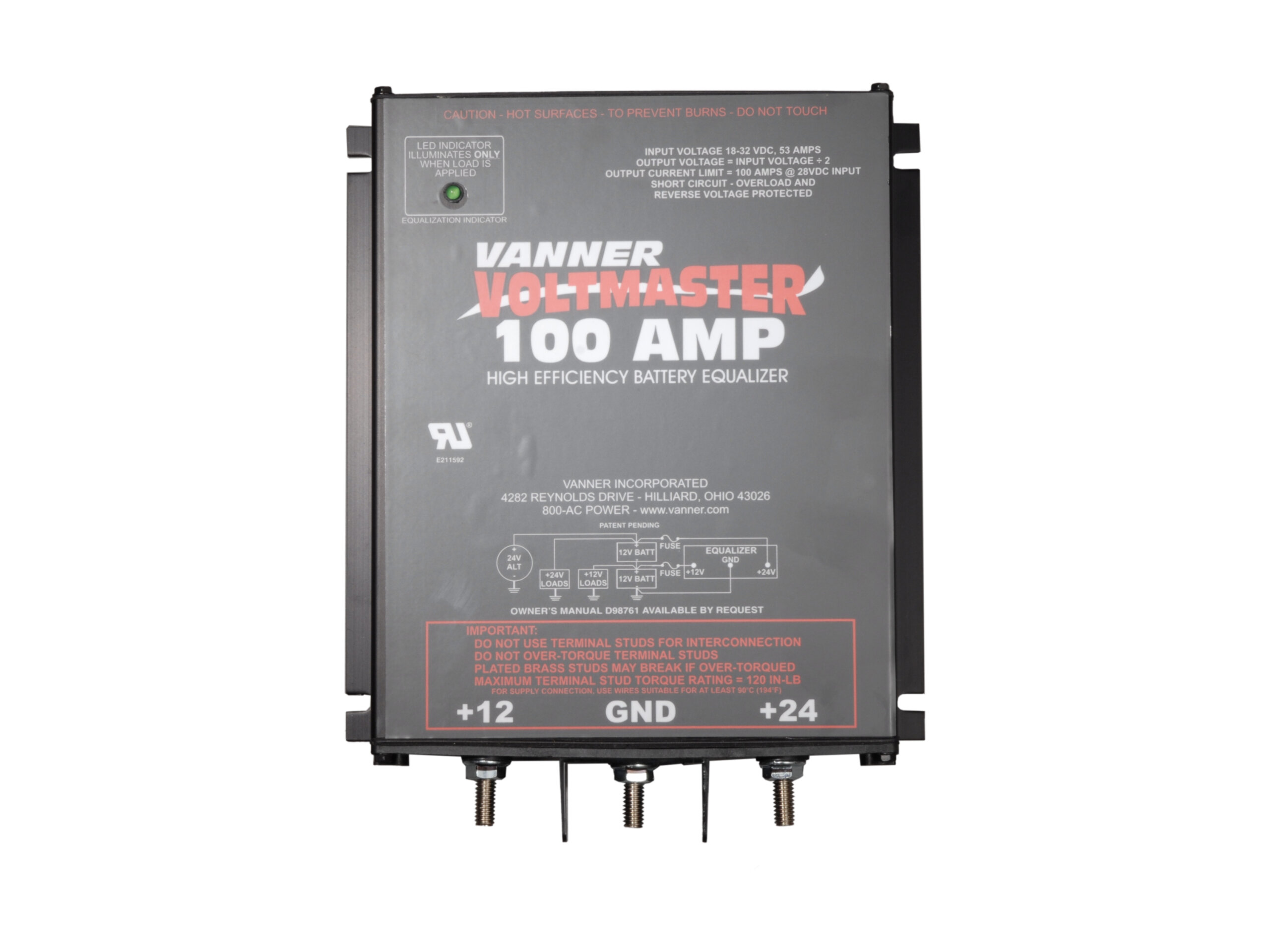

  • VoltMaster Battery Equalizer is an efficient and highly reliable method of obtaining a 12 volt DC power source from a 24 volt DC electrical system
  • The equalizer makes the batteries look like they are in series and parallel at the same time
  • In addition to providing regulated 12 volt power, the system ensures that battery voltages remain equal which significantly extends battery life
  • Ideally suited for vehicle and alternate energy applications, the VoltMaster Battery Equalizer is designed to save your batteries and the money you would spend replacing them
  • Efficienty rating of 96% extends the life of your batteries
  • Max input current at 24Vdc provides 32 Amps & output current at 12Vdc provides 0-100 Amps to support your application needs
  • Operating temperature range of -40C to +75C for reliability in any climate
  • Mounting location should be a flat surface close to the batteries to allow short battery cable runs
  • Anodized aluminum enclosure provides protection against salt, fungus, dust, water, fuel vapors and all fluids associated with commercial and off-highway vehicle operations

PRODUCT SPECIFICATIONS:
DC Input:20 to 32 Vdc
Efficiency:>96%
Max Input Current (24Vdc):53 Amps
Output Voltage:(Input Voltage/2) +/- 2% - 50mv
Output Current (12Vdc):0-100 Amps
Operating Temperature:-40C to +75C
Standby Mode Current @28.4V:17 milliamps nominal
Storage Temperature:-54C to +95C
Dimensions:9.8"H x 8.5"W x 2.5"D
Product Weight:6.3 lbs
UL Recognized:Yes
Gross weight:0 lbs

Resources

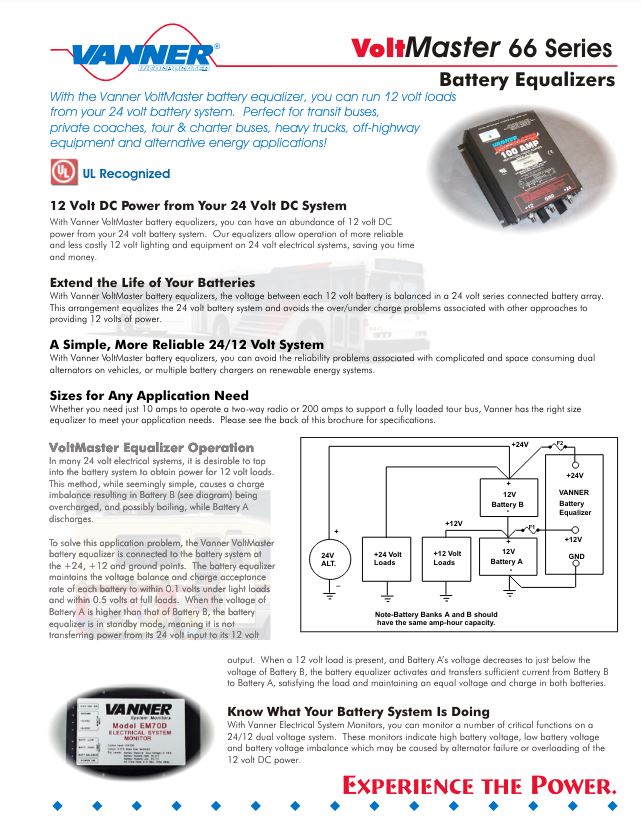

Brochure
Brochure
Download share

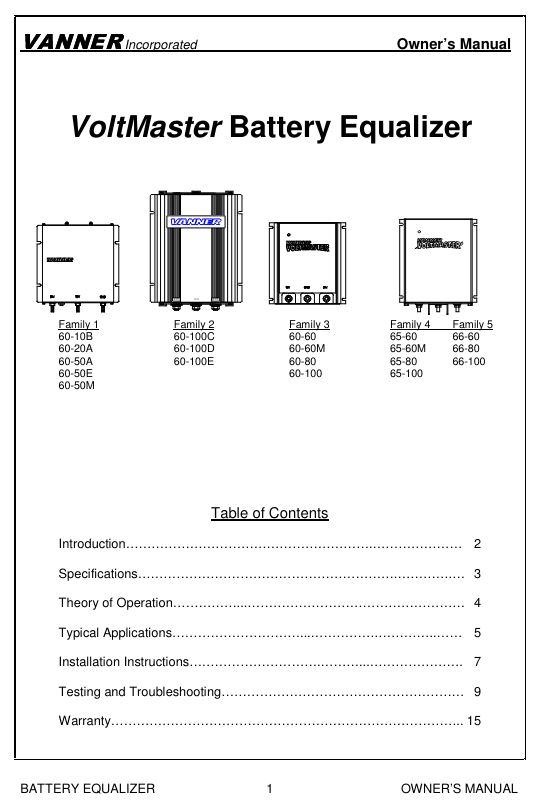

Owner's Manual
Owner's Manual
Download share

Related products

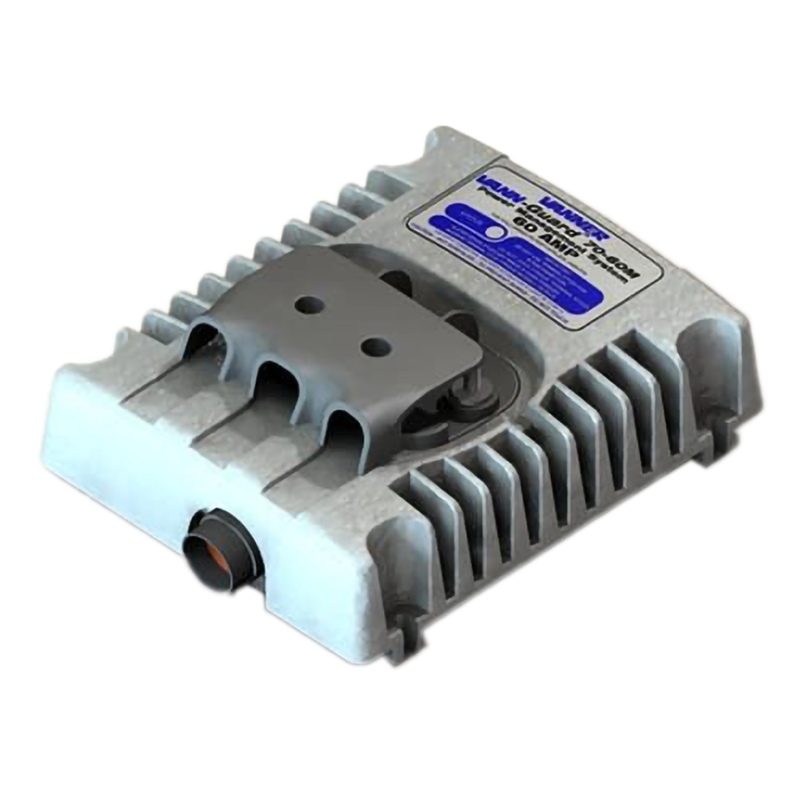

  • VANN-Guard 70 Series Battery Equalizer With 18 to 32 VDC Input & 60 Amp Output
    70-60
    $861.00
    VANN-Guard 70 Series Battery Equalizer With 18 to 32 VDC Input & 60 Amp Output
    View product

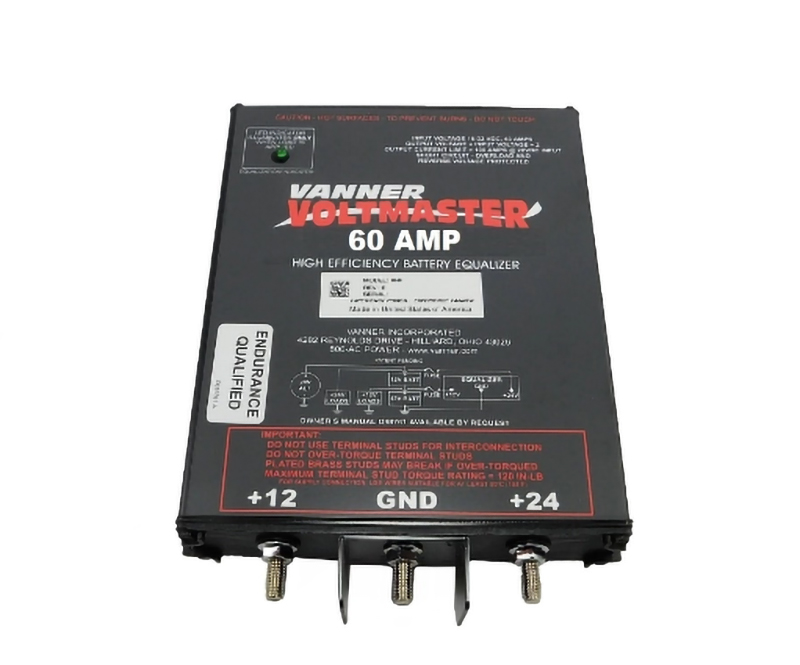

  • VoltMaster 66 Series Battery Equalizer With 20 to 32 VDC Input & 60 Amp Output
