Features

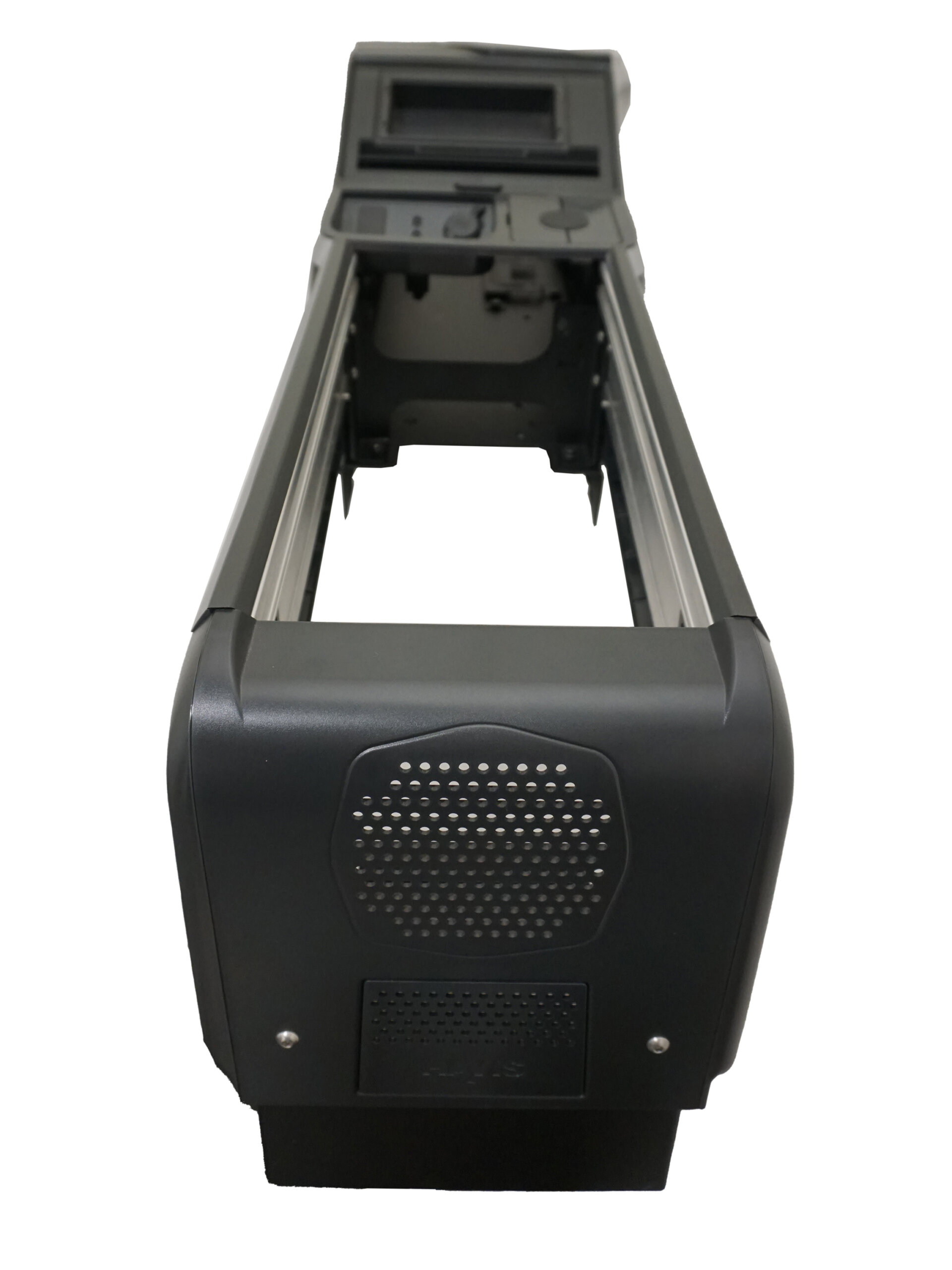

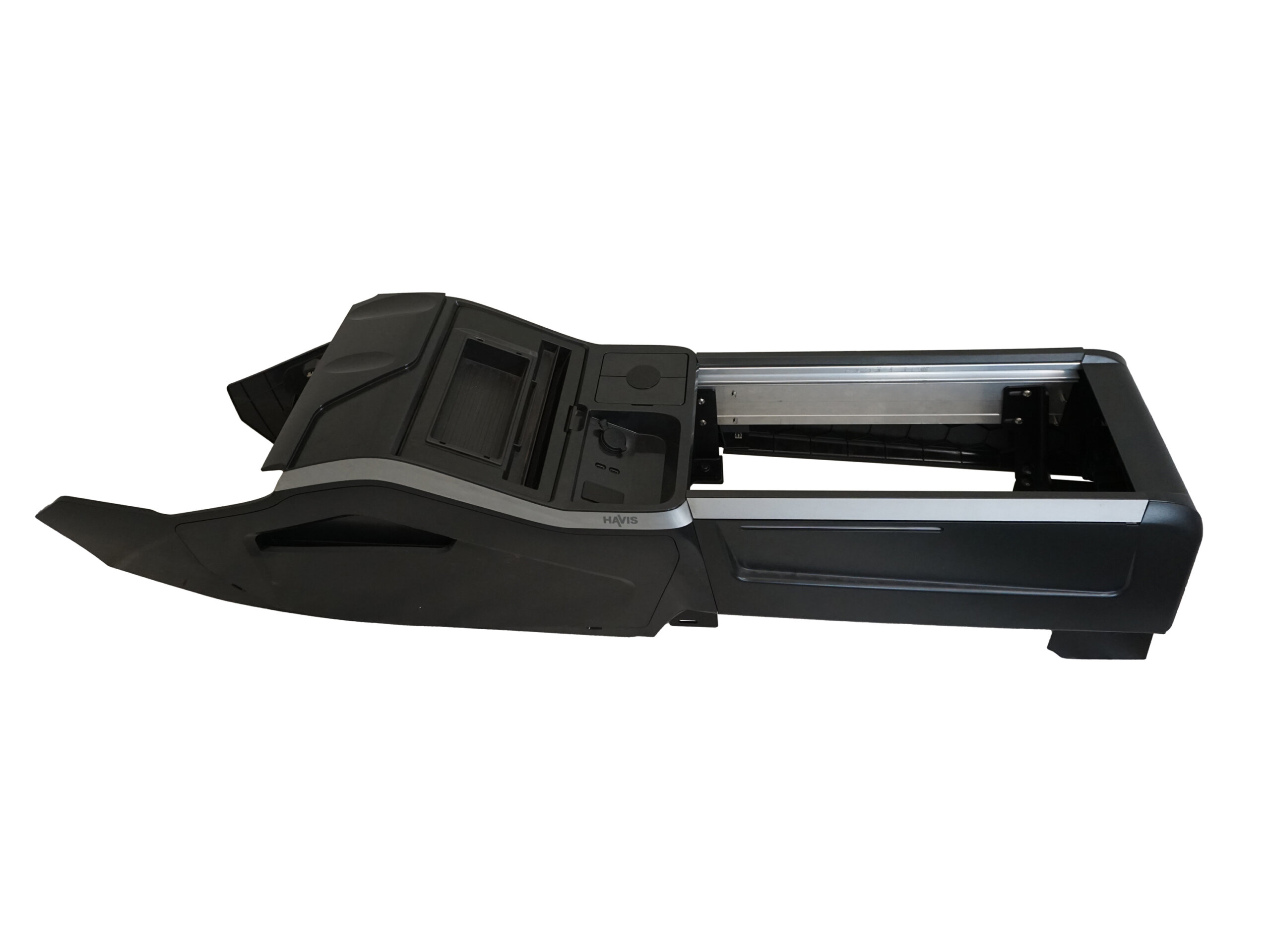

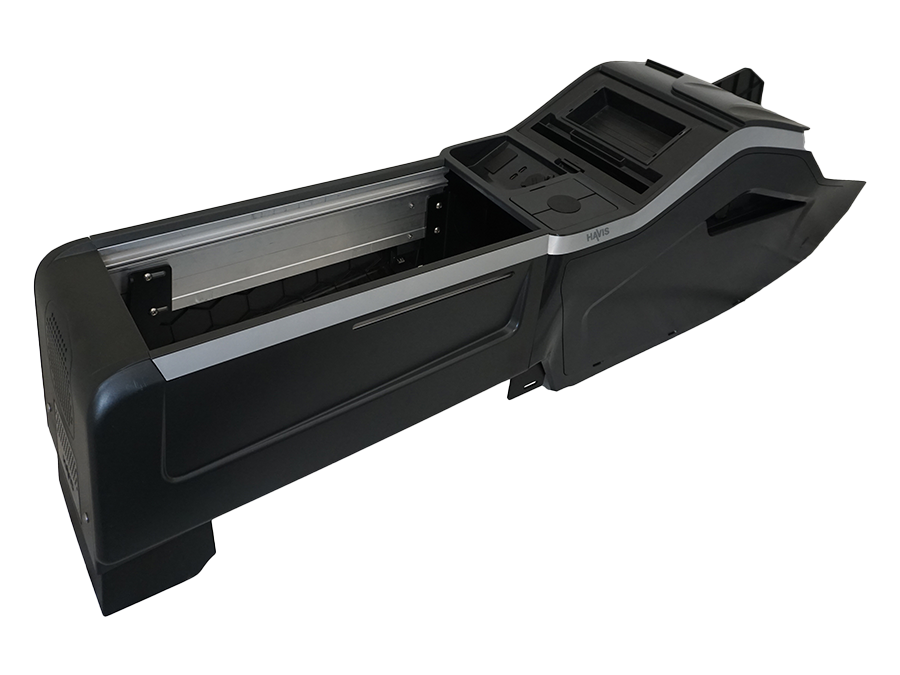

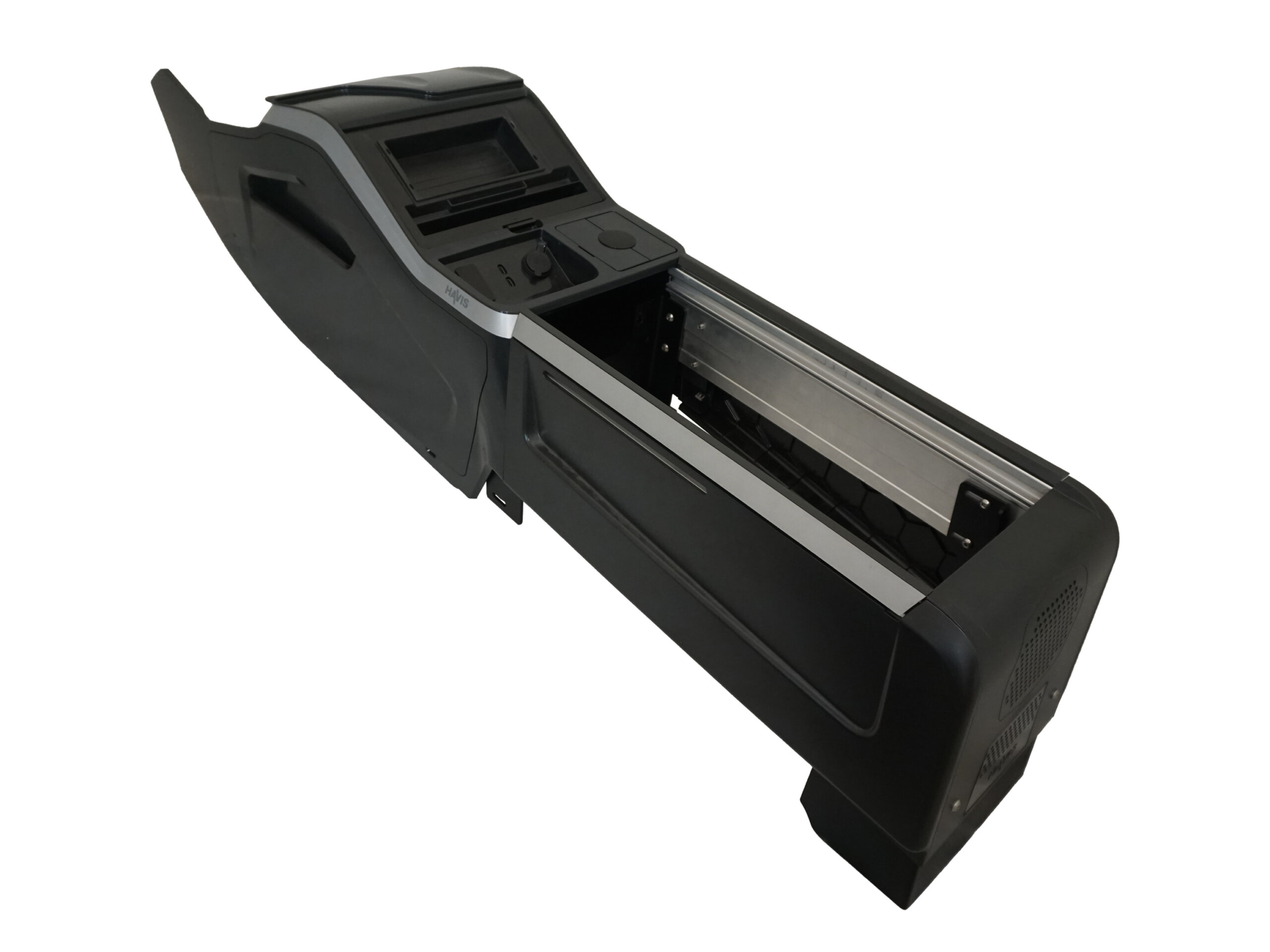

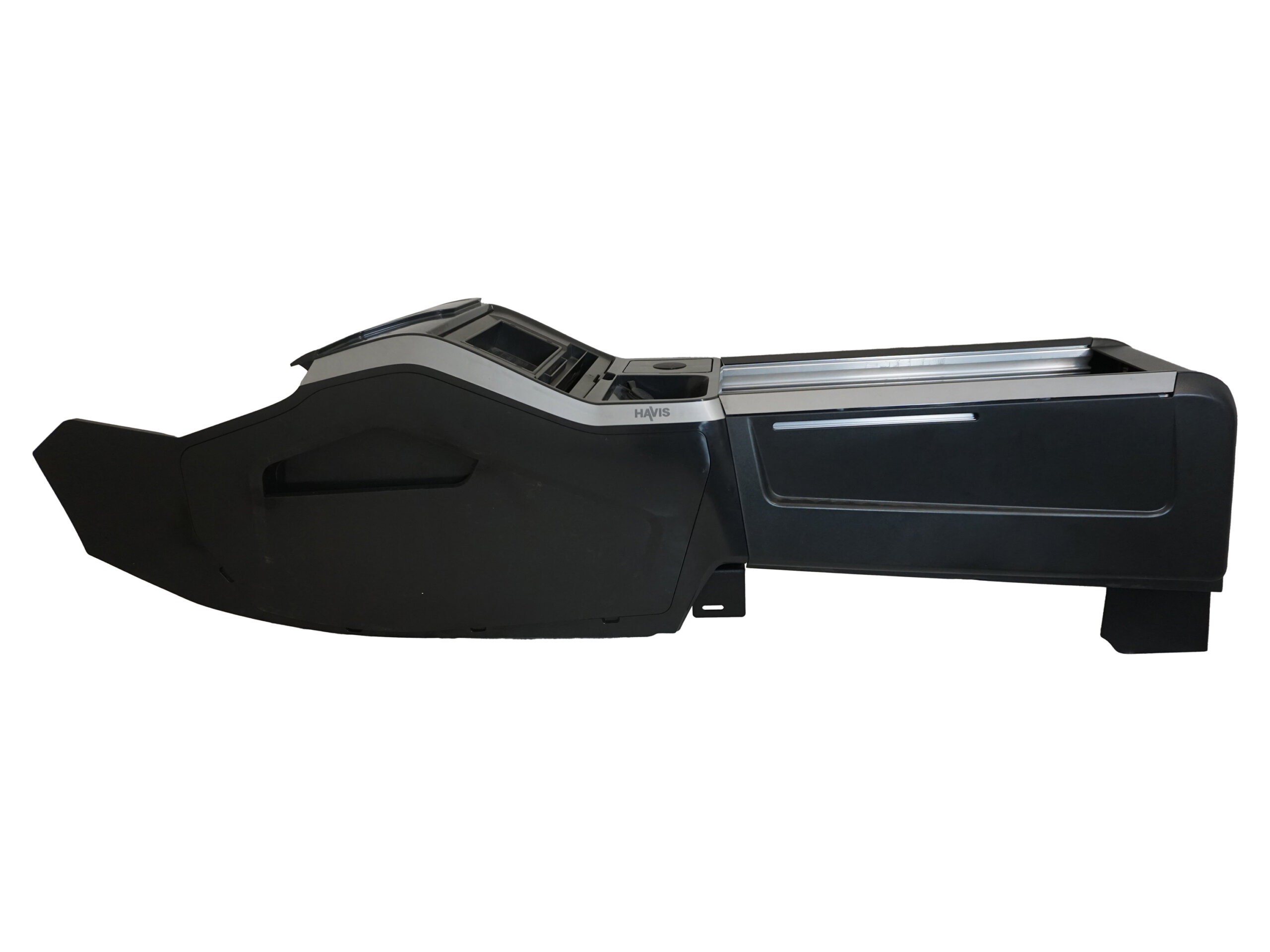

  • Innovative console design incorporates the strength of steel with a lightweight engineered polycarbonate
  • Heavy-duty steel floor-mounting structure provides rigid framework for console
  • Polycarbonate chassis mounts to steel frame to offer high degree of strength, impact resistance, and thermal performance
  • 16% lower weight than comparable steel consoles
  • Low profile for safety and side-to-side egress

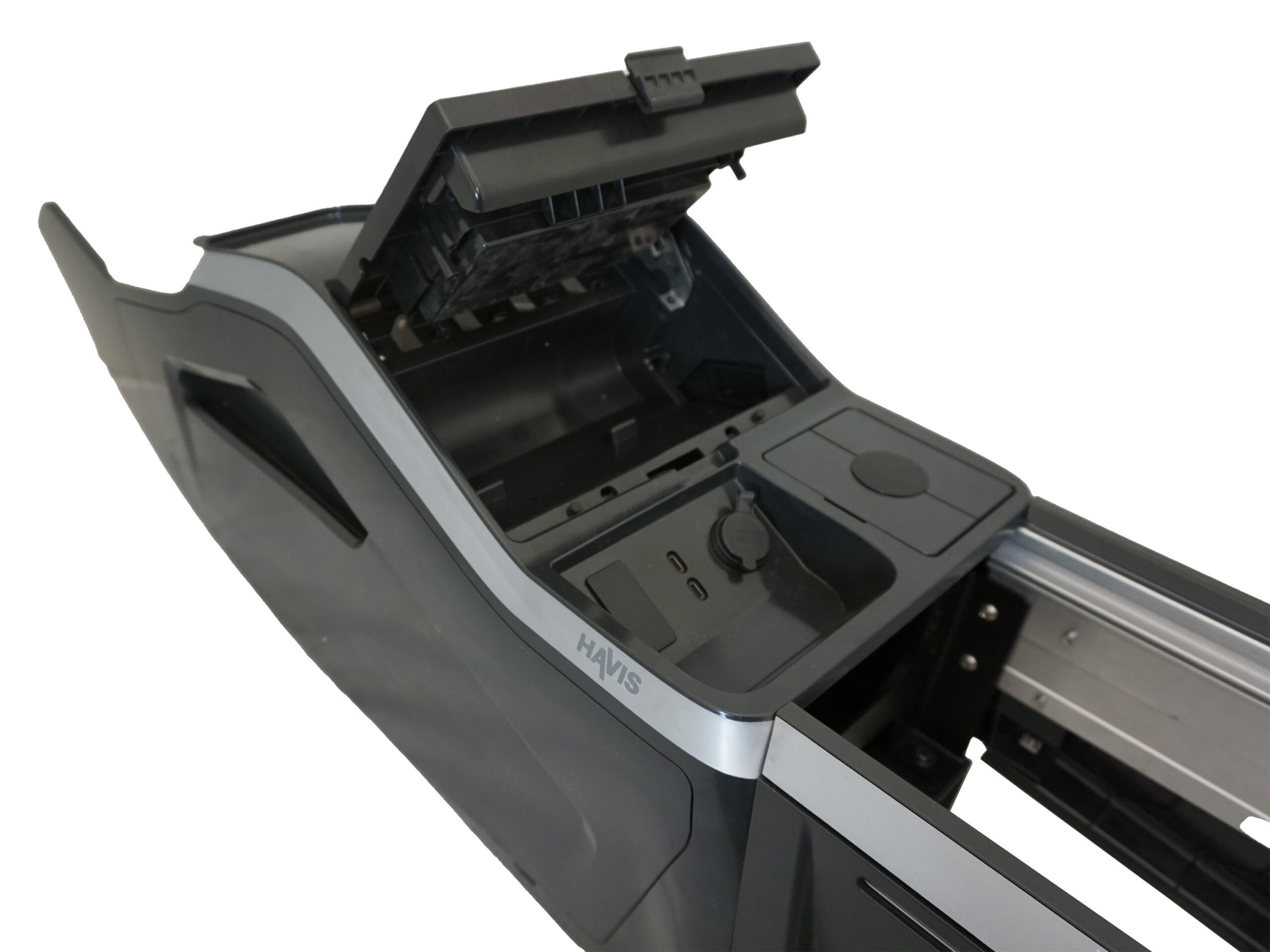

  • Integrated printer mount for Brother PocketJet printer stows safely inside the front of the VSX console and creates additional mounting space
  • Supports both PocketJet 7 and PocketJet 8 printers (appropriate USB cable is required and sold separately)
  • If printer is not being used, leave pre-installed liner in place
  • Removable tray in front storage bin can be replaced with optional C-EBX kits for siren light control head options (sold separately): See VSX console accessories

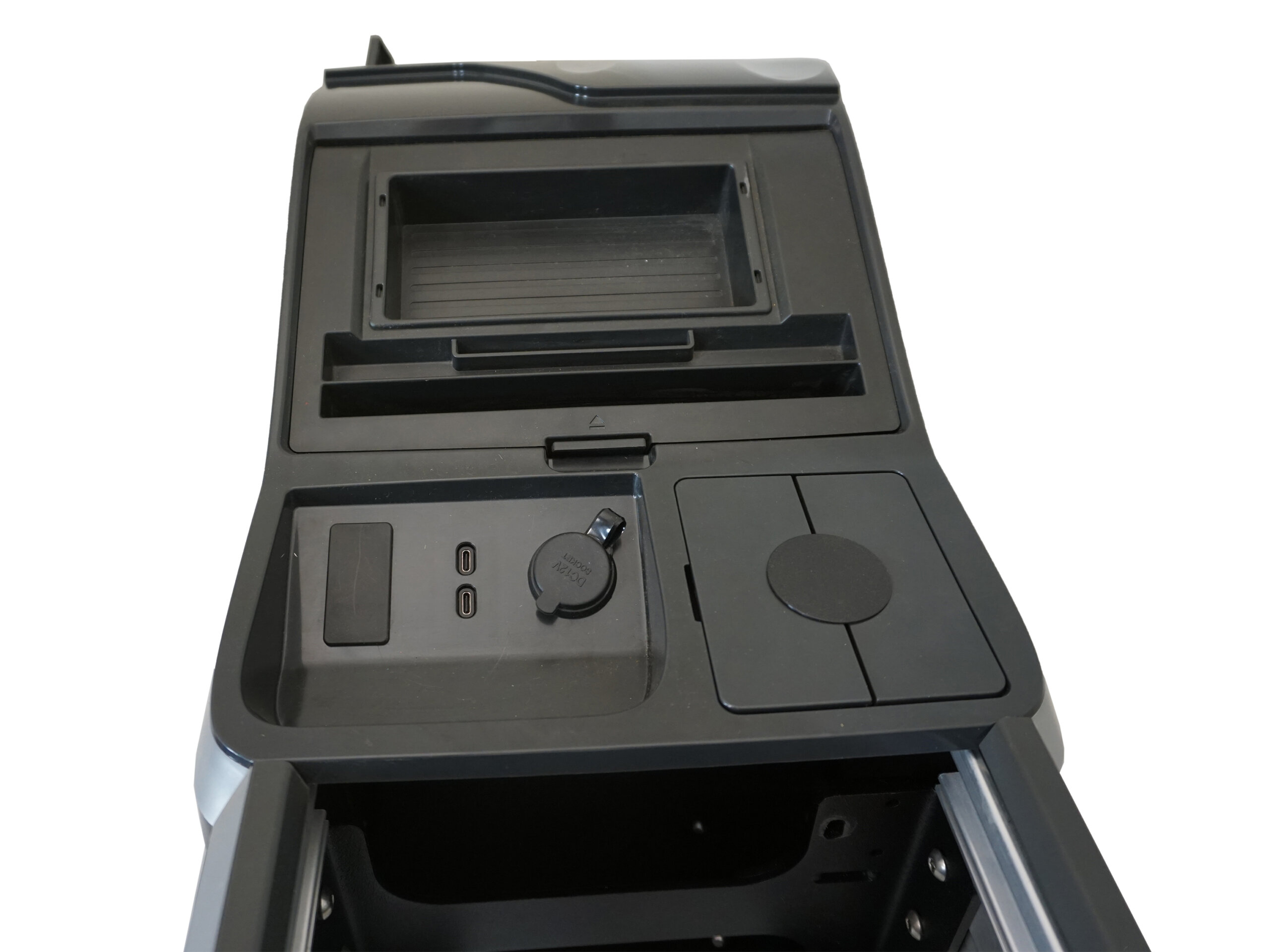

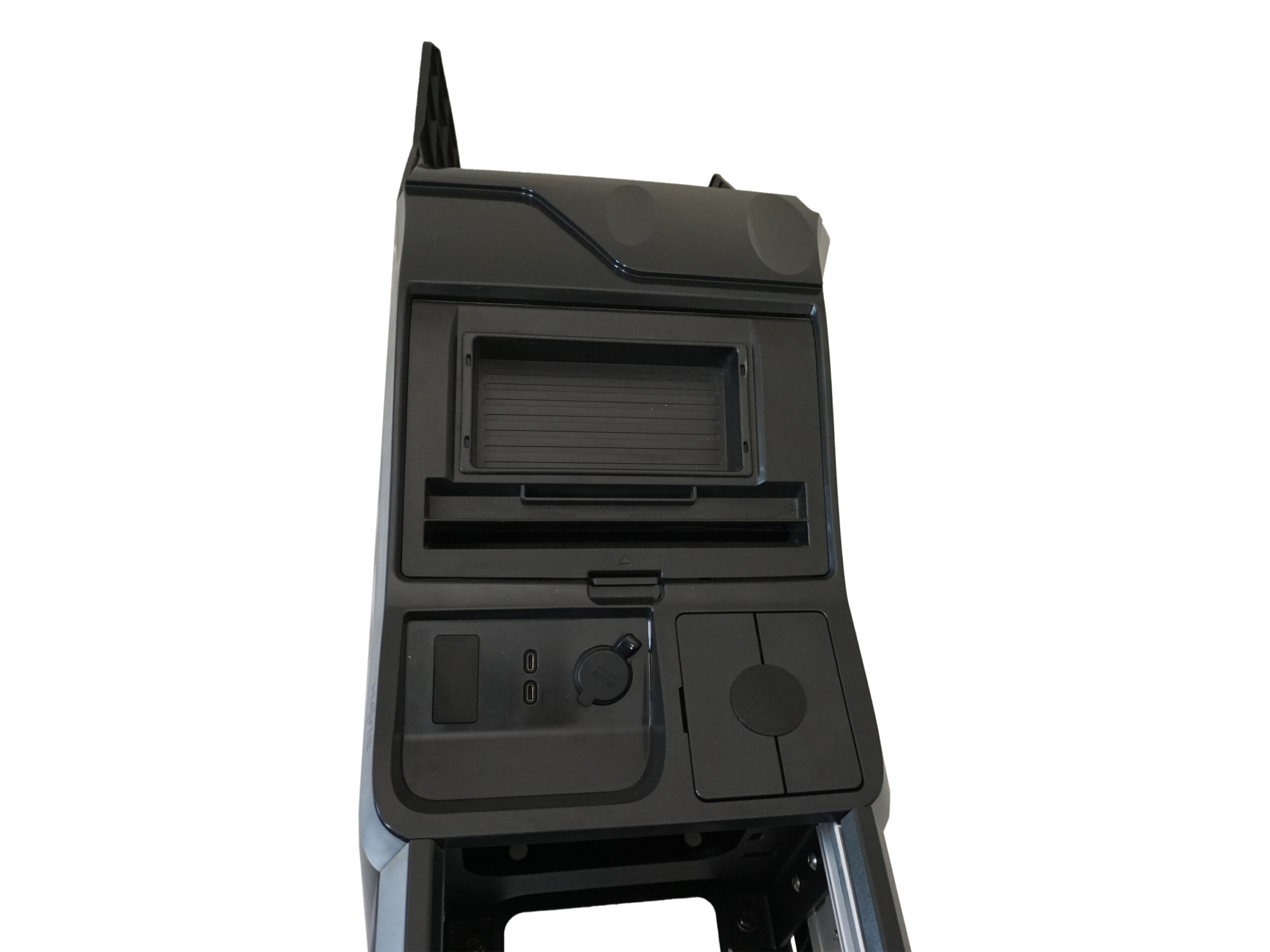

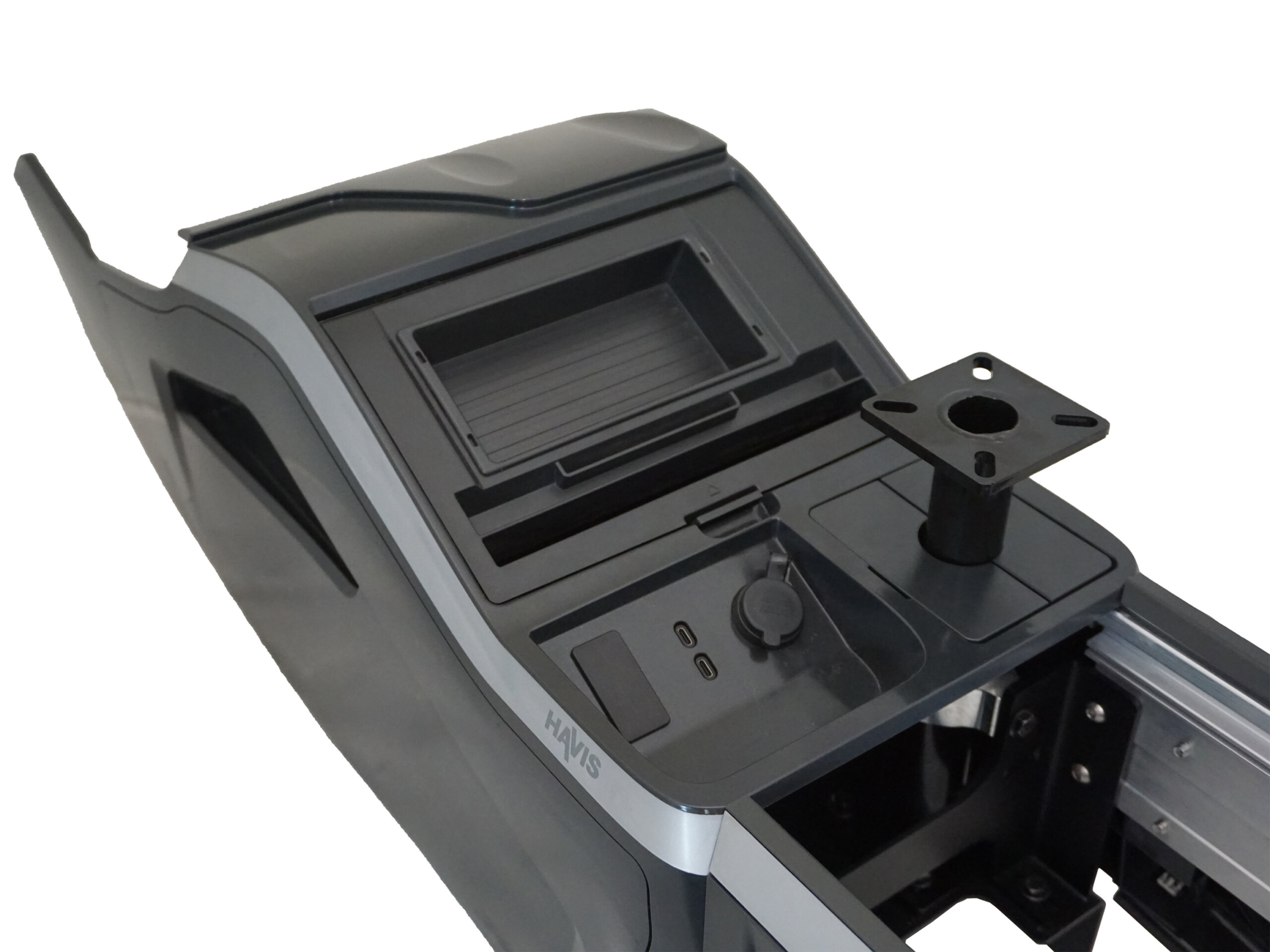

  • Additional front section features include slot for holding driver's licenses or cards, recess for pen storage, optional internal pole mount (C-HDM-218, sold separately), relocated required OEM USB media hub, port for 12V lighter plug, and optional cutout for Havis C-USB-3 dual port
  • 18" of total equipment mounting space in 9"W section
  • Storage pockets with provisions for dual USB & 12V outlet, removable access panels, and 8" nut track for side-mounted accessories on driver and passenger sides
  • Internal features include equipment tray, mounting provisions for fuse block kits, CG-X, DS-DA-604 hub, Motorola speaker, and integrated cable management system
  • Use with CUP2-1004 self-adjusting double cup holder (fixed mount and C-ARM-1001 arm rest, sold separately)
  • Filler plates and equipment brackets for 9"W section included to enclose mounting areas
  • Made in the USA with a lifetime warranty
  • Vehicle trim levels with OEM console installed require additional purchase of Chevrolet duct, PN 26401329
  • 2025 Blazer EV PPV model and later, OEM USB and OEM USB wiring F harness must be purchased separately
  • GM USB part number: 527865004. GM wiring F harness part number: 86592838
  • OEM USB block off plate included

Specifications

PRODUCT SPECIFICATIONS:
Fits:2024-2025 Chevrolet Blazer EV, fits all SS retail trim levels and PPV version
Dimensions:53.16” L x 13.34” W x 16.25” H
Noncompatible:C-EBX-MOT-1

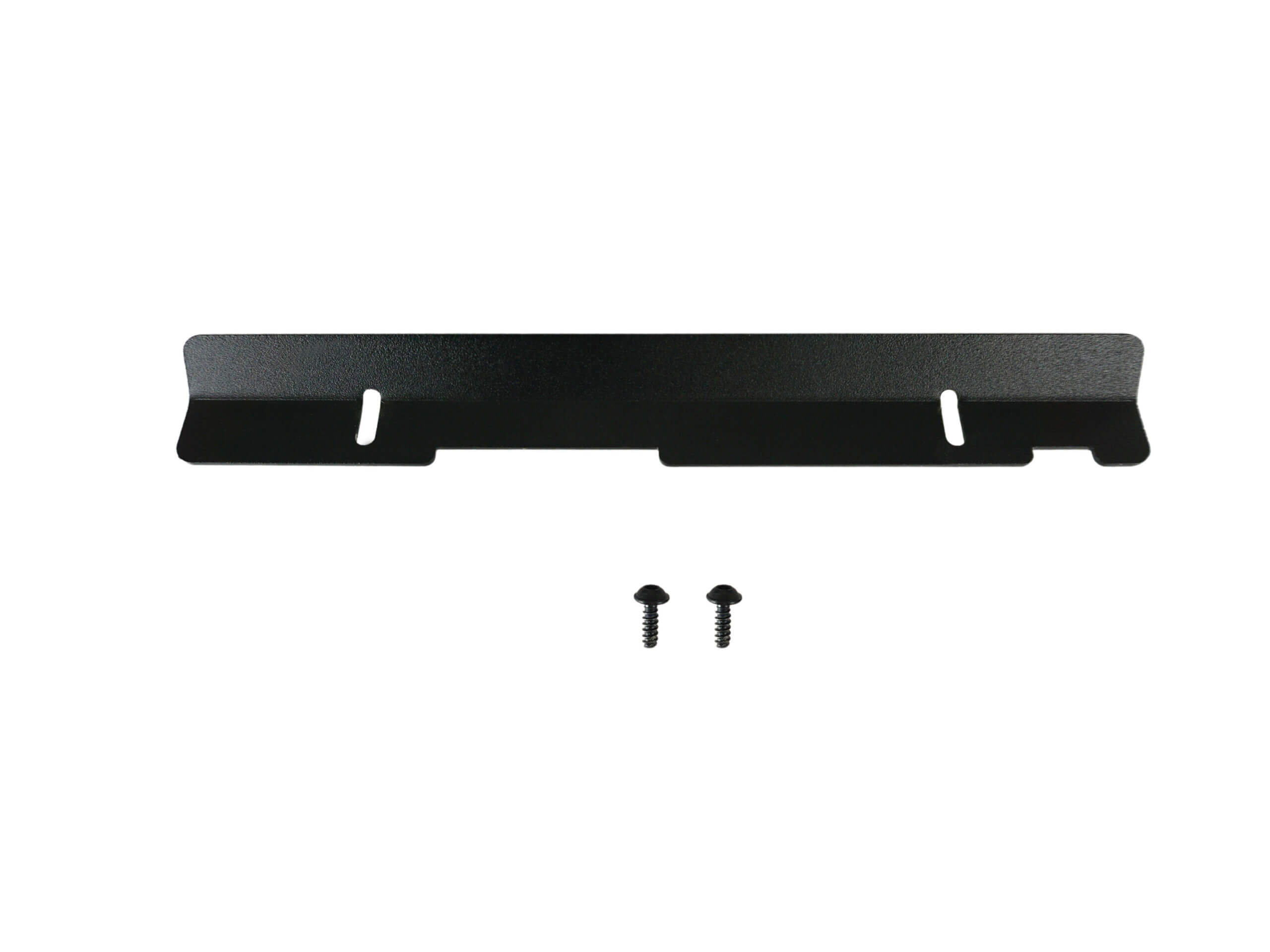

Optional bracket:C-PMX-A-SP printer slot cover for non-printer use
Compatible printers:Brother PocketJet PJ-722, 723, 762, 763 & 773, PJ-822, PJ-823, PJ-862, PJ-863, and PJ-883 Model kits
Mounting:Use with Brother PocketJet 7 and PocketJet 8 Series printers without battery, which have threaded inserts on printer used for mounting
Optional Cables:DS-DA-340 Right-angle USB-C connector allows installation of PocketJet 8 Printer into existing Havis PocketJet 7 Printer mounts (sold separately)
GSM70141 Mini-USB cable used in Havis PocketJet Printer Mounts designed for earlier PocketJet 7 and PocketJet 6 (sold separately)
Gross weight:60 lbs

Resources

Side View Depth Measurements (PDF)
Side View Depth Measurements (PDF)
Download share

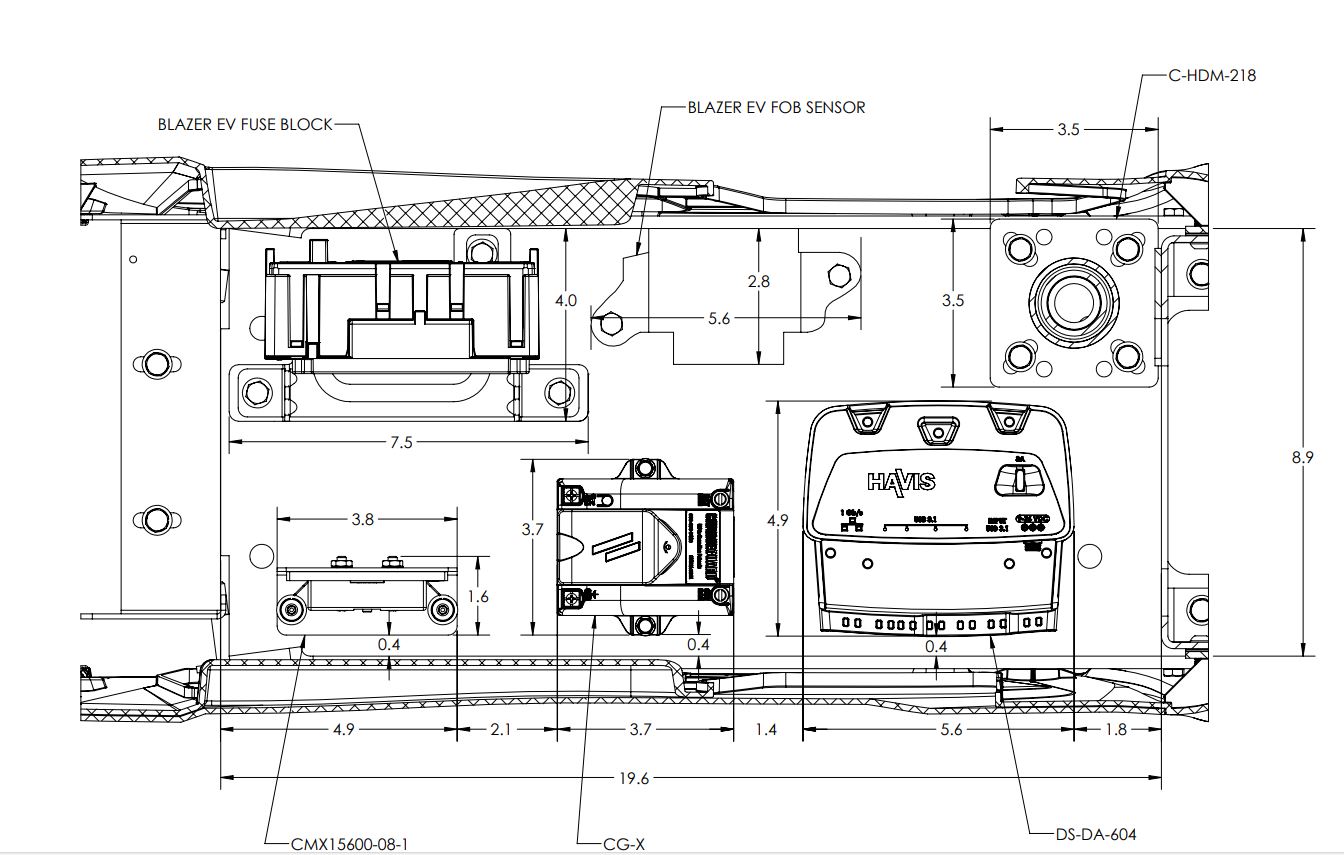

Console Mounting Space:
Console Mounting Space:
Download share

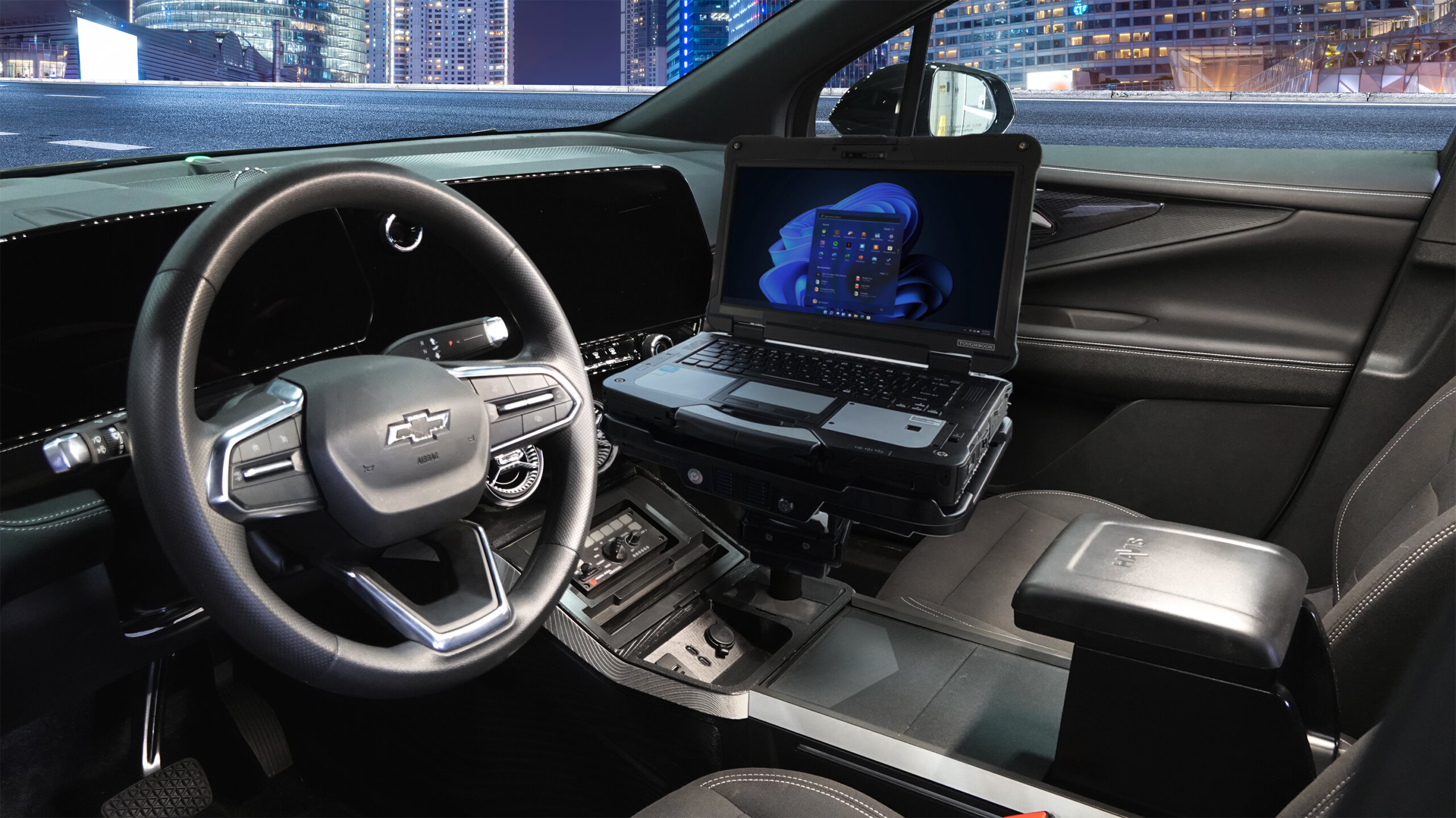

Application Gallery

product galleryproduct galleryproduct galleryproduct galleryproduct gallery

Compatibility

2024-2025 Chevrolet Blazer EV
2024-2025 Chevrolet Blazer EV

Related products

  • Lighter Plug Socket & Cap
    C-LPO
    $15.00
    Lighter Plug Socket & Cap
    View product
  • Printer Paper Slot Cover for VSX Consoles with Printer Mount
    C-PMX-A-SP
    $20.00
    Printer Paper Slot Cover for VSX Consoles with Printer Mount
    View product
  • USB-C & USB Type A Dual Port Charger
    C-USB-3
    $99.00
    USB-C & USB Type A Dual Port Charger
    View product
  • Internal Mount Armrest with Lockable Accessory Pocket
    C-ARM-1001
    $318.00
    Internal Mount Armrest with Lockable Accessory Pocket
    View product
  • Universal Monitor Mount Assembly
    C-UMM-103
    $118.00
    Universal Monitor Mount Assembly
    View product
  • Rugged USB-C Port Replication Hub
    DS-DA-604
    $349.00
    Rugged USB-C Port Replication Hub
    View product
  • Right-Angle USB 2.0 Cable for Brother PocketJet 6 & 7 Printer
    GSM70141
    $36.00
    Right-Angle USB 2.0 Cable for Brother PocketJet 6 & 7 Printer
    View product

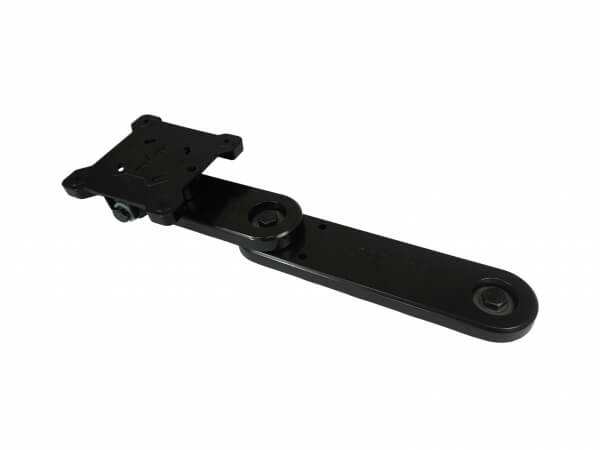

  • Swivel Arm Mount With 6″ Base, 3″ Extension
    MD-ARM-0603
    $151.00
    Swivel Arm Mount With 6″ Base, 3″ Extension
    View product

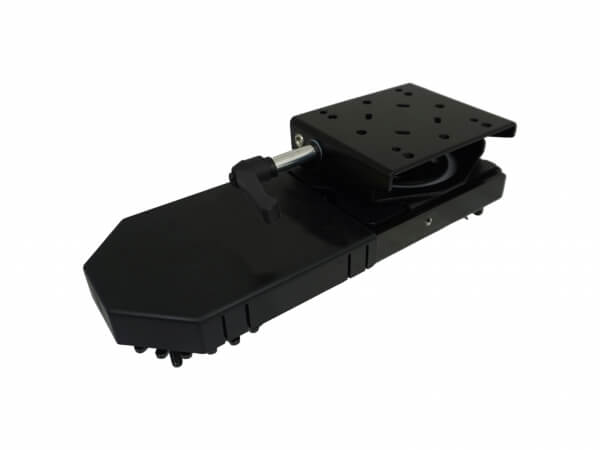

  • 11″ Slide Out Locking Swing Arm with Low Profile Motion Device Adapter
    C-MD-119
    $367.00
    11″ Slide Out Locking Swing Arm with Low Profile Motion Device Adapter
    View product
  • Console Accessory Bracket Kit with 2 Lighter Plug Outlets
    C-LP-2
    $57.00
    Console Accessory Bracket Kit with 2 Lighter Plug Outlets
    View product

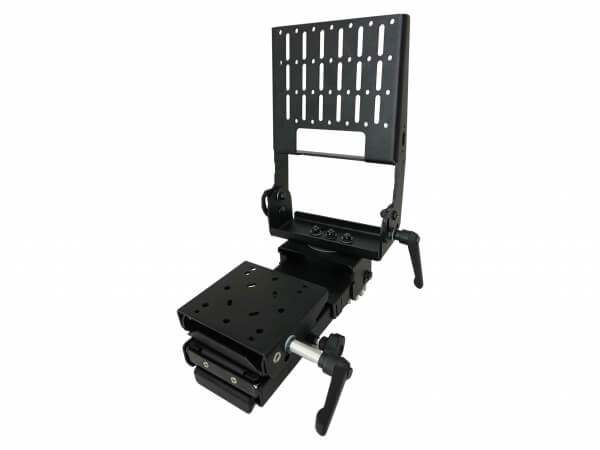

  • Heavy-Duty Computer Monitor / Keyboard Mount and Motion Device
    C-MD-317
    $498.00
    Heavy-Duty Computer Monitor / Keyboard Mount and Motion Device
    View product
  • Heavy-Duty Fixed Top Offset Platform 0-inches
    C-HDM-301
    $18.00
    Heavy-Duty Fixed Top Offset Platform 0-inches
    View product
  • Adapter bracket for C-UMM-103 & Swivel Arm Mounts
    C-ADP-121
    $22.00
    Adapter bracket for C-UMM-103 & Swivel Arm Mounts
    View product

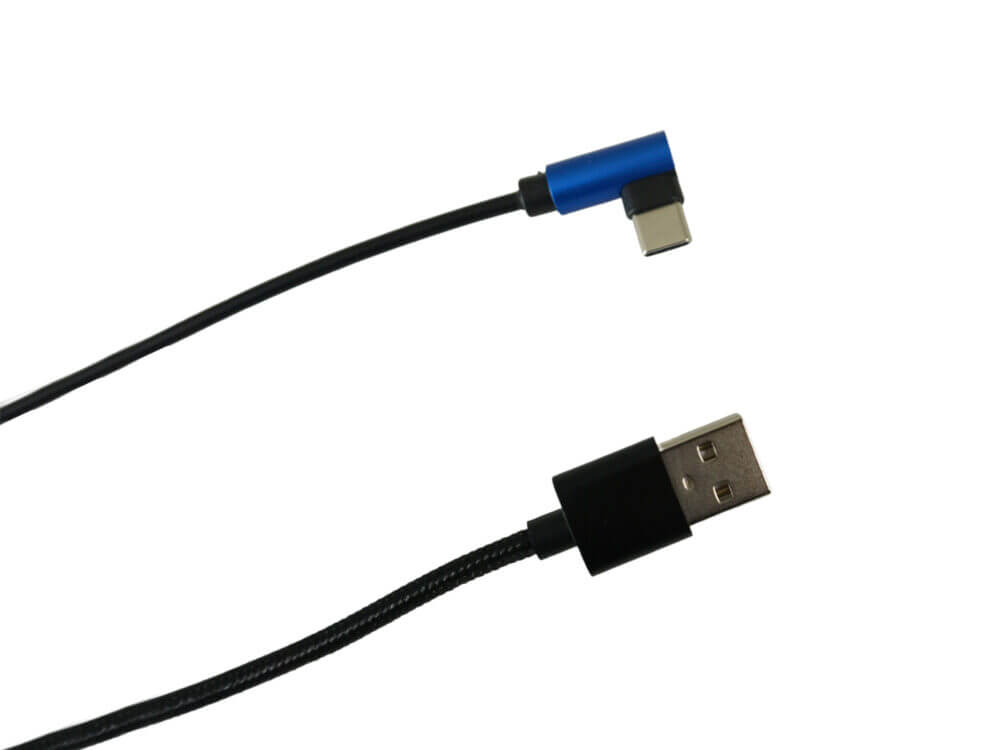

  • Right-angle USB-C cable for Brother PocketJet 8 Printer
    DS-DA-340
    $36.00
    Right-angle USB-C cable for Brother PocketJet 8 Printer
    View product

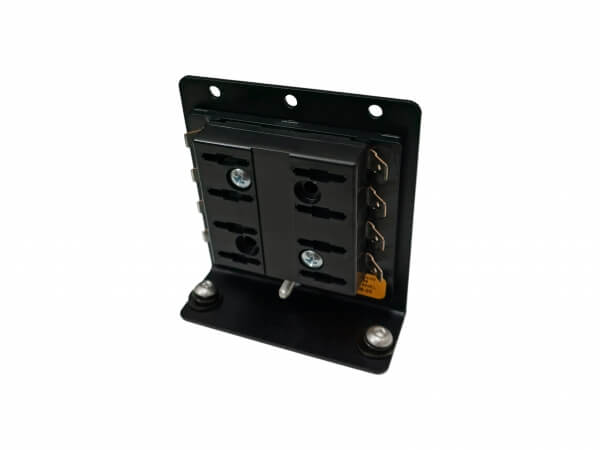

  • Fuse Block Kit for Wide VSX Console with Front Printer Mount for 2021-2024 Chevrolet Tahoe PPV & SSV
